The question, “What Are the Top MPO Optical Transceivers?”, deserves more than a simple product ranking. An MPO optical transceiver combines high-density fiber connectivity with parallel optical transmission. It can reduce rack space, cable congestion, and installation time. Yet performance depends on more than speed.
Cisco’s Annual Internet Report estimated global Internet traffic would reach 5.3 zettabytes per month by 2023. That pressure continues inside cloud and artificial intelligence data centers. The Dell’Oro Group has also reported strong growth in data-center networking investment, especially around 400G and 800G infrastructure. These figures explain why buyers increasingly compare MPO modules by lane architecture, reach, power consumption, and interoperability.
Robert Maher, a connectivity specialist at SENKO, has emphasized, “MPO performance begins with alignment, cleanliness, and polarity control.” That practical warning matters. A transceiver may support 400G on paper, but contaminated endfaces can weaken optical performance within seconds. Polarity mistakes can create silent deployment delays. Testing matters.
This guide examines leading MPO optical transceiver options across 100G, 400G, and emerging 800G applications. It considers connector quality, optical budgets, thermal behavior, compliance, and vendor support. Datasheets still have limits. Real installations are less perfect. Rack airflow, cable routing, and technician handling can change results. The strongest choice is not always the fastest module. It is the one that fits the network design, maintenance plan, and measurable operating conditions.
MPO optical transceivers are network modules that convert electrical data into optical signals and back again. MPO means multi-fiber push-on, a connector design using several fibers in one compact interface. Unlike duplex modules, an MPO transceiver can transmit and receive multiple data lanes simultaneously. This structure supports high-density connections inside data centers and enterprise network rooms.
Its core functions include signal conversion, lane management, wavelength control, and error monitoring. A module may send data through eight, sixteen, or more fiber lanes. Each lane carries a separate portion of the total traffic. The transceiver also works with a host switch through an electrical interface. Accurate polarity is essential. A reversed fiber pair can leave an otherwise healthy link unusable.
Practical installation requires more than inserting the connector. Technicians should check fiber cleanliness, key orientation, insertion loss, and module compatibility. A clean-looking link can still fail because of incorrect lane mapping. Field testing often reveals small alignment or polarity problems. The standard helps, but it is not magic. Heat also matters. Poor airflow around densely installed modules may increase operating temperature and shorten service life. I have seen planning focus on speed while overlooking airflow and maintenance access. That mistake is easy to repeat. Reliable deployment depends on matching fiber type, transmission distance, lane structure, and system requirements.

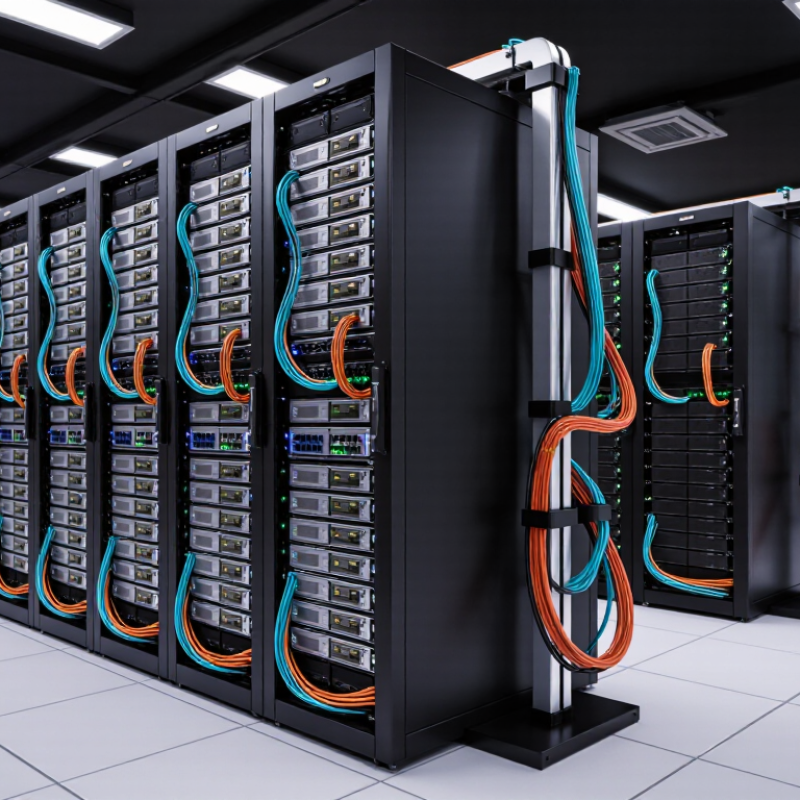

What Are the Top MPO Optical Transceivers?
MPO optical transceivers support high-density networks by carrying several optical lanes through one compact connector. A 400G parallel-optical module commonly uses eight or sixteen fibers, depending on its lane design. An 800G module can combine two 400G optical engines inside one housing. This reduces rack space and front-panel congestion. It also makes fiber polarity more critical.
According to IDC’s 2024 forecast, global AI infrastructure spending could reach 154 billion dollars, rising 44% year over year. That growth increases pressure on switch ports, cable trays, and optical budgets. LightCounting’s 2024 market outlook also identifies 800G transceivers as a fast-growing segment, with shipments expected to exceed one million units. These figures explain why MPO-based parallel optics are moving beyond specialist deployments.
In practice, engineers select modules by reach, fiber type, lane speed, and connector count. Short server-to-leaf links often use multimode SR designs. Longer data-center paths may require single-mode DR designs with MPO interfaces. Every link needs matched polarity, clean end faces, and verified insertion loss. Small mistakes matter.
I have seen dense panels fail during commissioning because one fiber pair was reversed. The connector looked perfect. It was not. Optical testing remains essential, especially when migration plans mix 400G and 800G equipment. The design is efficient, but not foolproof.
Common parallel-optics MPO configurations increase network density by carrying multiple optical lanes through one multifiber connector. The chart compares optical lane counts and MPO fiber positions used in widely deployed 100G to 800G designs.
Higher-speed designs generally require more parallel lanes and fibers. Actual transmission distance depends on the optical standard and fiber type; the values shown represent common MPO parallel-optics configurations rather than any specific manufacturer.
MPO optical transceivers use multi-fiber connectors to increase network density and reduce cabling space. Multimode MPO modules often support short data-center links, such as connections between top-of-rack switches and servers. They are practical in crowded racks, where several parallel lanes share one compact connector. Single-mode MPO modules suit longer links between buildings, campus rooms, or high-capacity telecom equipment. Their higher reach comes with stricter cleaning and inspection requirements.
Different fiber counts support different applications. Eight-fiber and sixteen-fiber designs commonly serve parallel 100G, 200G, and 400G connections. Higher-count versions can support faster switch uplinks and artificial intelligence clusters. Breakout transceivers divide one high-speed MPO connection into several duplex links. This helps connect modern switches with older server adapters. Conversion types can also connect parallel-fiber equipment with wavelength-based single-mode systems. The correct choice depends on lane speed, transmission distance, polarity, and fiber type.
Small details matter. Technicians should inspect every end face before installation. Dust can increase insertion loss quickly. Polarity mistakes are common during migration projects. A neat cable route does not guarantee a working link. In practical commissioning, connector keys, cassette orientation, and transceiver compatibility must be checked together. Specification sheets sometimes appear complete, but real performance may still vary. I would allow testing time, even when the design looks straightforward.
Choosing top MPO optical transceivers requires more than checking lane count or advertised speed. In rack testing, link stability often depends on optical budget, connector cleanliness, and cable polarity. A module with 12 or 16 parallel lanes may look impressive, but every lane must maintain acceptable power and sensitivity. Check reach with the intended fiber type, not only the maximum distance printed on a specification sheet. Shorter links can still fail when insertion loss accumulates through panels and adapters.
Thermal performance deserves close attention. High-density modules generate heat in crowded switches, especially during sustained traffic. Compare operating temperature, power consumption, and airflow direction with the equipment’s actual layout. Digital monitoring can reveal rising bias current, unstable temperature, or declining receive power before an outage. It is useful evidence, though not a perfect prediction. Monitoring thresholds sometimes need site-specific adjustment.
Interoperability is another practical test. Confirm the electrical interface, signaling rate, forward-error-correction requirements, and supported breakout arrangement. Inspect the MPO end face before installation; one dust particle can affect several lanes. Technicians should verify polarity with a documented method, because visual assumptions are unreliable. I have seen a link pass a quick light test yet fail under load. That result deserves investigation, not dismissal. Compare warranty terms, test reports, and traceable compliance documents. Certification language can be vague. Ask for measurable limits, sample test conditions, and revision dates before approving a purchase.
Choosing the right MPO optical transceiver starts with the network, not the product label. “Top” performance means dependable compatibility, suitable reach, and stable operation. Check the switch port speed, transmission standard, fiber type, and required distance. A short data-center link may use multimode fiber, while longer campus links usually require single-mode fiber.
Connector details deserve careful attention. Confirm the MPO fiber count, polarity method, key orientation, and male or female pin design. A mismatch can leave a new transceiver useless. It happens more often than expected. Also compare insertion loss with the link budget, especially when patch panels, adapters, and multiple connections are involved. Every connection consumes optical margin.
Power consumption and heat output matter inside dense racks. Review operating temperature ratings and diagnostic monitoring features before installation. Monitoring can reveal rising temperature, weak received power, or unstable bias current. Field testing should include connector inspection, cleaning, and optical power measurement. Do not rely only on a link light. I have seen links pass initial checks but fail under higher traffic. Verify breakout cables carefully when connecting one high-speed port to several lower-speed ports. Standards compliance improves confidence, but real compatibility still depends on firmware, coding, and host equipment. When specifications seem unclear, request test data and confirm the return process before deployment.
| Transceiver Type | Data Rate | Optical Wavelength | Electrical / Optical Lanes | Fiber Type | Typical Maximum Reach | MPO Interface | Modulation | Typical Power Range | Recommended Network Use |
|---|---|---|---|---|---|---|---|---|---|
| 100G SR4 | 100 Gb/s | 850 nm | 4 × 25 Gb/s | Multimode fiber: OM3 or OM4 | 70 m on OM3 100 m on OM4 |
MPO-12, usually parallel-fiber configuration | NRZ | Approximately 3.5 W | Short-reach connections inside data centers and server-to-switch links |
| 100G PSM4 | 100 Gb/s | 1310 nm | 4 × 25 Gb/s | Single-mode fiber | Up to 500 m | MPO-12, commonly using four transmit and four receive fibers | NRZ | Approximately 3.5 W | Parallel single-mode links between rows or equipment areas requiring more than multimode reach |
| 200G SR4 | 200 Gb/s | 850 nm | 4 × 50 Gb/s | Multimode fiber: OM3 or OM4 | 70 m on OM3 100 m on OM4 |
MPO-12 | PAM4 | Approximately 4.5 W | High-density short-distance switch interconnects using existing multimode infrastructure |
| 400G SR4 | 400 Gb/s | 850 nm | 4 × 100 Gb/s | Multimode fiber: OM4 or OM5 | Up to 100 m on OM4 Up to 150 m on OM5, depending on implementation |
MPO-12 | PAM4 | Approximately 8 W | Short-reach 400G spine-and-leaf links where multimode cabling is preferred |
| 400G SR8 | 400 Gb/s | 850 nm | 8 × 50 Gb/s | Multimode fiber: OM3 or OM4 | 70 m on OM3 100 m on OM4 |
MPO-16 | PAM4 | Approximately 8 W | Short-reach deployments designed around eight-lane multimode connectivity |
| 400G DR4 | 400 Gb/s | 1310 nm | 4 × 100 Gb/s | Single-mode fiber | Up to 500 m | MPO-12, commonly APC-polished for single-mode links | PAM4 | Approximately 10 W | Data-center interconnects and single-mode links requiring up to 500 m reach |
| 400G FR4 | 400 Gb/s | Four wavelengths in the 1310 nm band | 4 × 100 Gb/s | Single-mode fiber | Up to 2 km | Duplex LC rather than MPO; included as a comparison option | PAM4 with wavelength multiplexing | Approximately 10 W | Longer-reach 400G links where an MPO connector is not required |
| 800G 2×DR4 | 800 Gb/s | 1310 nm | 8 × 100 Gb/s | Single-mode fiber | Up to 500 m | Two MPO-12 interfaces, typically APC-polished | PAM4 | Approximately 16 W or higher | High-bandwidth AI, accelerated-computing, and next-generation spine networks |
| Selection note: Confirm host-side electrical lane compatibility, MPO polarity, fiber type, connector polish, insertion loss, link budget, cable polarity method, operating temperature, and available power before deployment. Reach and power values are typical industry specifications and can vary by optical design, cabling, and equipment platform. | |||||||||
It converts electrical data into optical signals, then converts received light back into electrical data. MPO means multi-fiber push-on. One compact connector carries several fibers.
They carry multiple optical lanes through one connector. This reduces rack space, cable congestion, and front-panel crowding. High-density links benefit most.
A module may use eight, sixteen, or more fiber lanes. Each lane carries part of the total traffic. The exact count depends on its design.
Short server-to-leaf links often use multimode fiber. Longer paths usually need single-mode fiber. Check reach, lane speed, and the complete link budget.
Polarity ensures each transmitting lane reaches the correct receiving lane. A reversed pair can disable an otherwise healthy connection. The connector may look perfect.
Inspect and clean the fiber end faces. Confirm key orientation, fiber count, gender, and polarity. Verify module compatibility and insertion loss.
No. A link may pass basic checks but fail under heavy traffic. Measure optical power and test lane mapping under realistic conditions.
Poor airflow can raise operating temperature and shorten service life. Leave maintenance access around dense modules. Speed planning alone is not enough.
Migration between 400G and 800G equipment may expose lane or compatibility issues. Check breakout cables, firmware, coding, and host equipment. Standards help, but they are not magic.
Do not trust a clean-looking connector without testing it. I have seen one reversed fiber pair stop an entire panel. The lesson still feels easy to ignore.
MPO optical transceiver technology is designed to support fast, reliable data transmission in high-density fiber optic networks. By combining multiple fiber channels within a single MPO interface, it simplifies cabling, saves rack space, and enables efficient connections between switches, servers, and other network devices. Different types of MPO optical transceivers can serve various applications, including short-distance data center links, longer-distance interconnects, and high-bandwidth network upgrades.
When comparing these transceivers, network planners should consider transmission speed, fiber count, reach, wavelength, power consumption, connector compatibility, and operating reliability. Proper selection also requires evaluating the existing infrastructure, required bandwidth, link distance, network expansion plans, and equipment compatibility. Choosing the right MPO optical transceiver can improve network performance, simplify installation and maintenance, and provide a scalable foundation for future connectivity needs.
