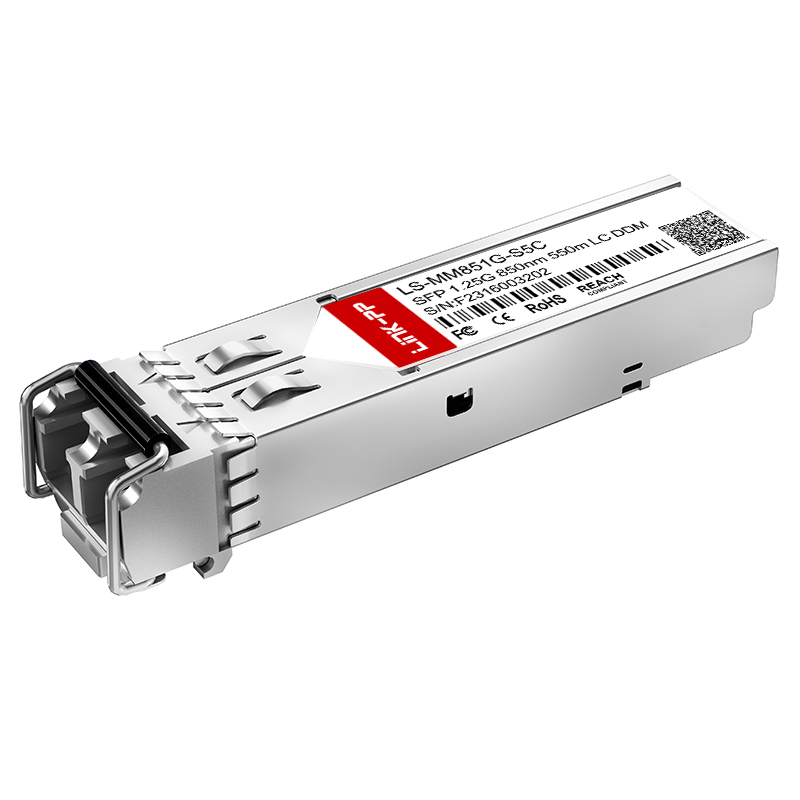

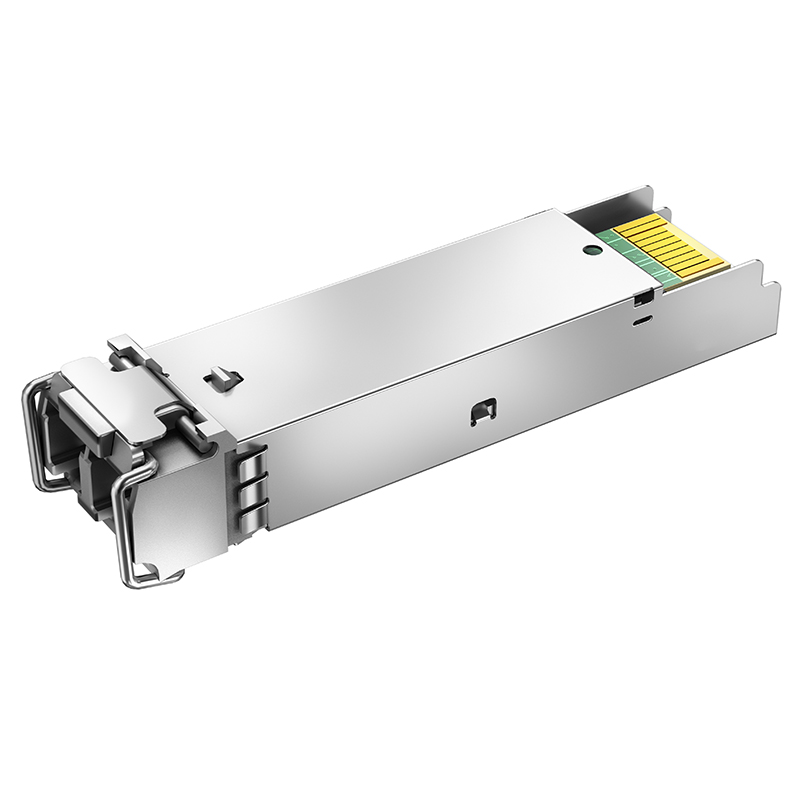

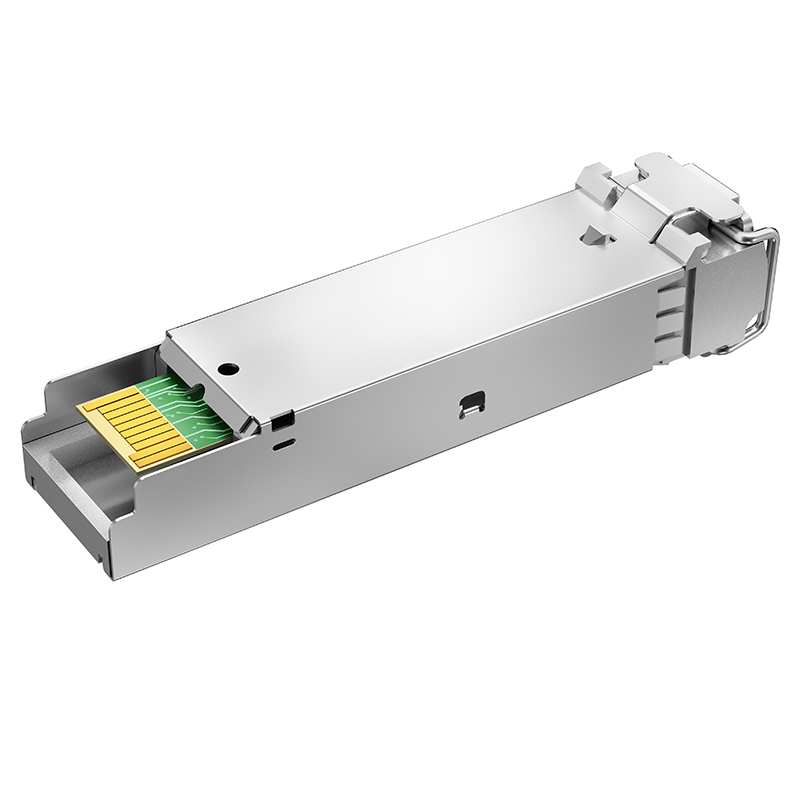

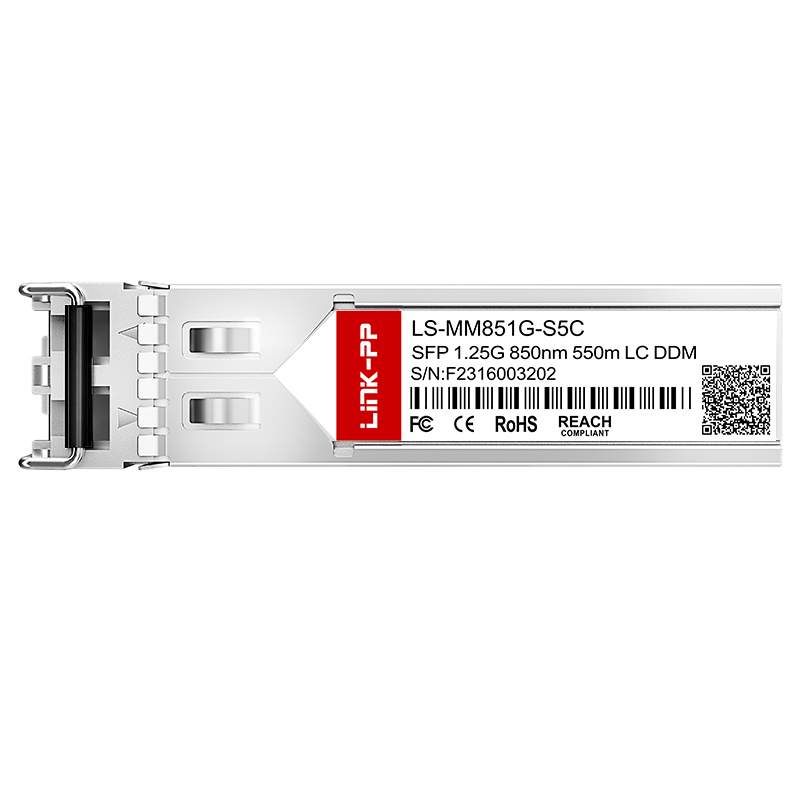

1000BASE-SX SFP 850nm 550m DOM Duplex LC MMF 1.25G Transceiver Module
| Item |
SFP Module |
| Part Status |
Active |
| Form Factor |
SFP |
| Max Data Rate |
1.25Gbps |
| Wavelength |
850nm |
| Max Cable Distance |
550m |

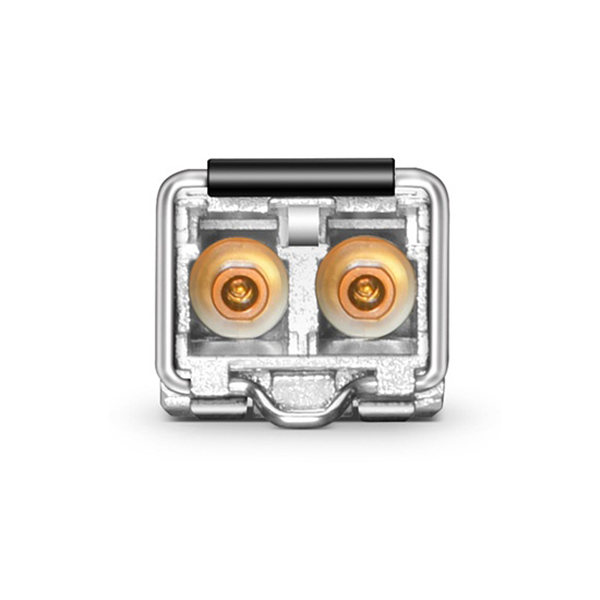

| Connector |
Duplex LC |
| Media |
Multimode (MMF) |
| Optical Component |
VCSEL/PIN |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| TX Power |
-9.5 ~ - 3dBm |
| Receiver Sensitivity |
< -17dBm |
| Typical Power Consumption |
≤0.8w |
| Receiver Overload |
-3dBm |
| Bit Error Ratio (BER) |
1E-12 |
| Extinction Ratio |
>9dB |
| EMC (Electro Magnetic Compatibility) |
Supported |
| MTBF (SX) |
2,457,002 Hours |
| Protocols |
IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Warranty |
5 Years |
| Sample |
Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

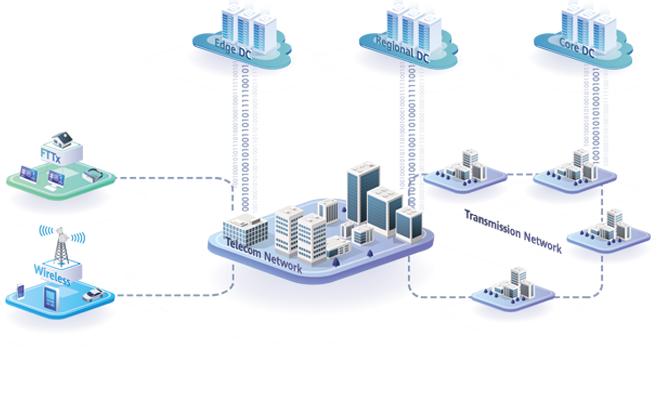

Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

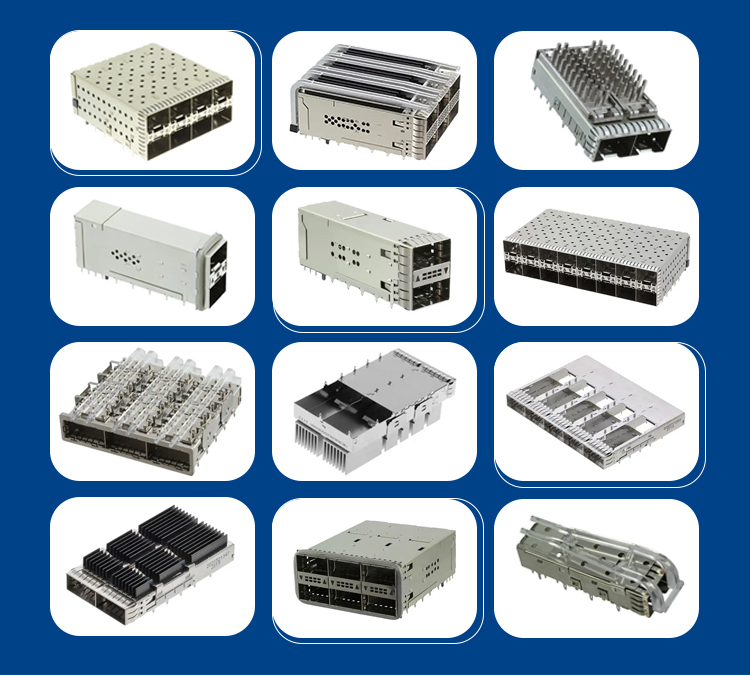

Related Products SFP Cage

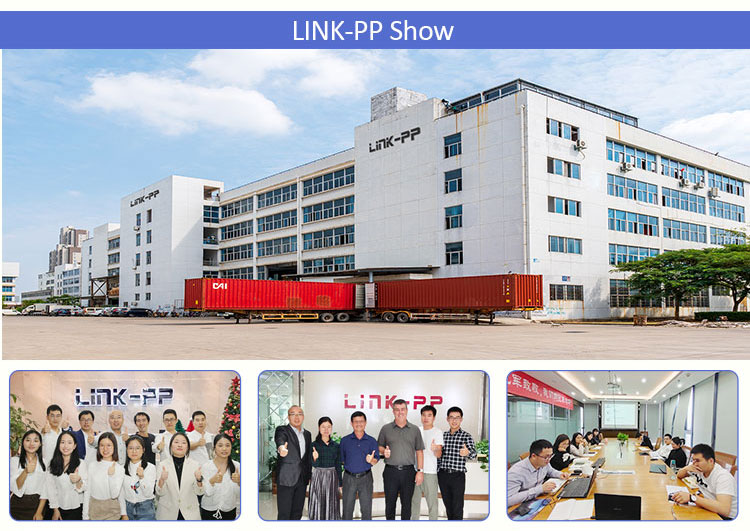

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad.
Established in 1997, we currently have around 2000 staff. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short lead time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we develop, manufacture, and sell products to global markets.
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, with shipping costs covered by the buyer.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production typical lead times range from 15 to 30 days.
What after-service support do you offer?
We offer a one-year warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, custom requests are welcome. Please send us your specifications for a detailed discussion.
What are your competitive advantages?
With over 19 years of manufacturing experience, we have established long-term partnerships with leading global enterprises.
