SI-46001-F 10/100Base-T 8P8C Vertical RJ45 Connector

Product Description

RJ45 Connector Overview
SI-46001-F 10 / 100Base-T 8P8C Vertical RJ45 Connector
Products Description
Item RJ45 Female Connector
Bothhand Part Number SI-46001-F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

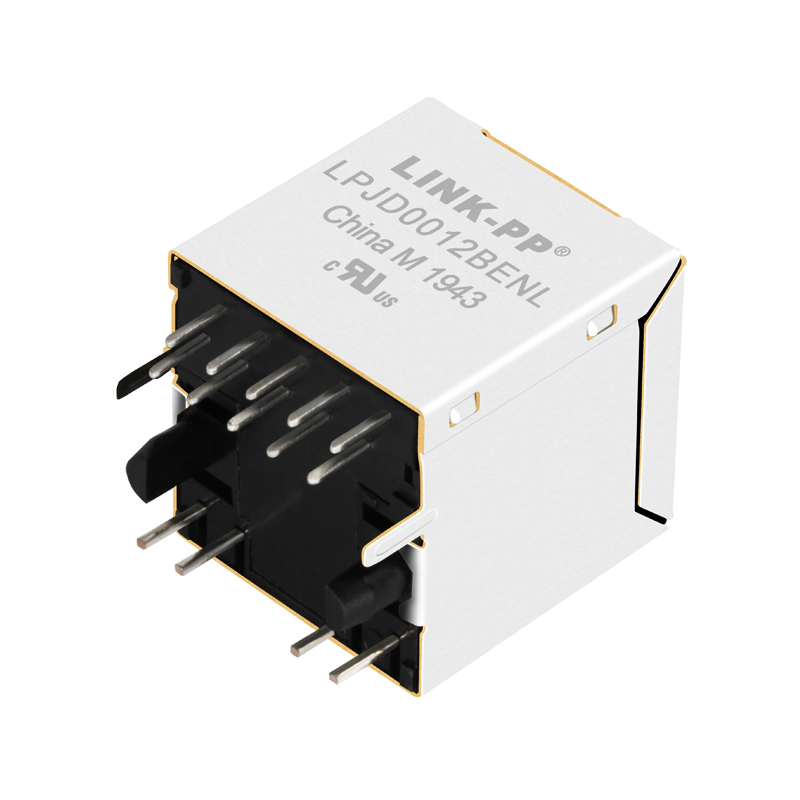

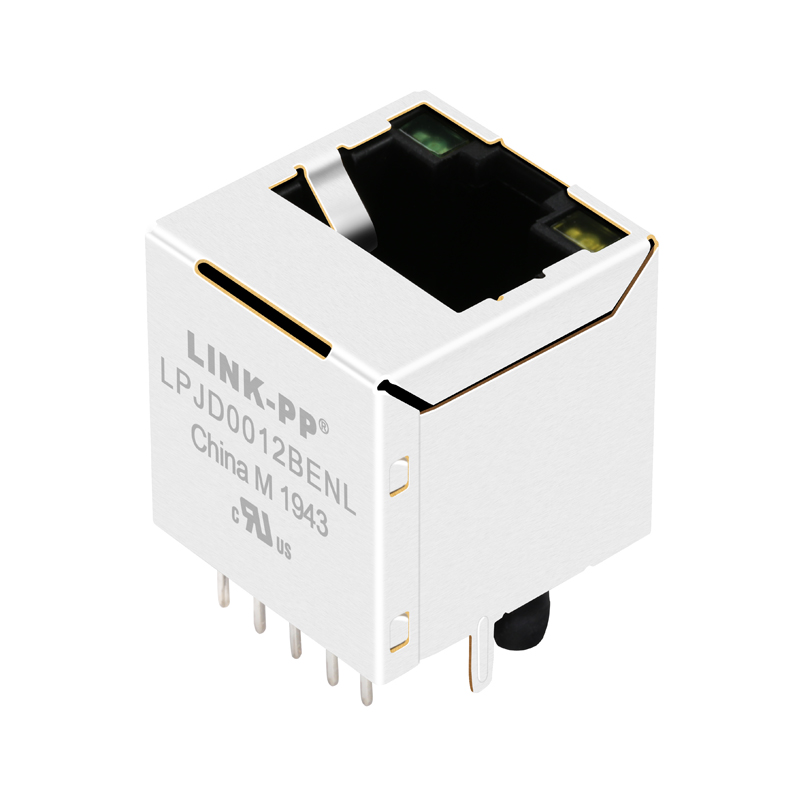

Connector Dimensions Left View Connector Dimensions Right View

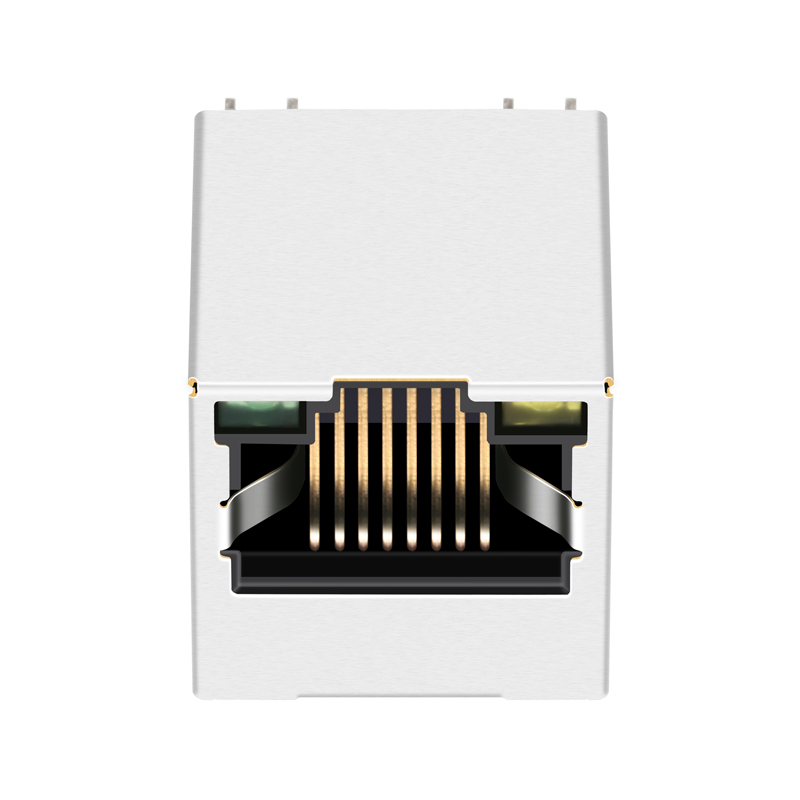

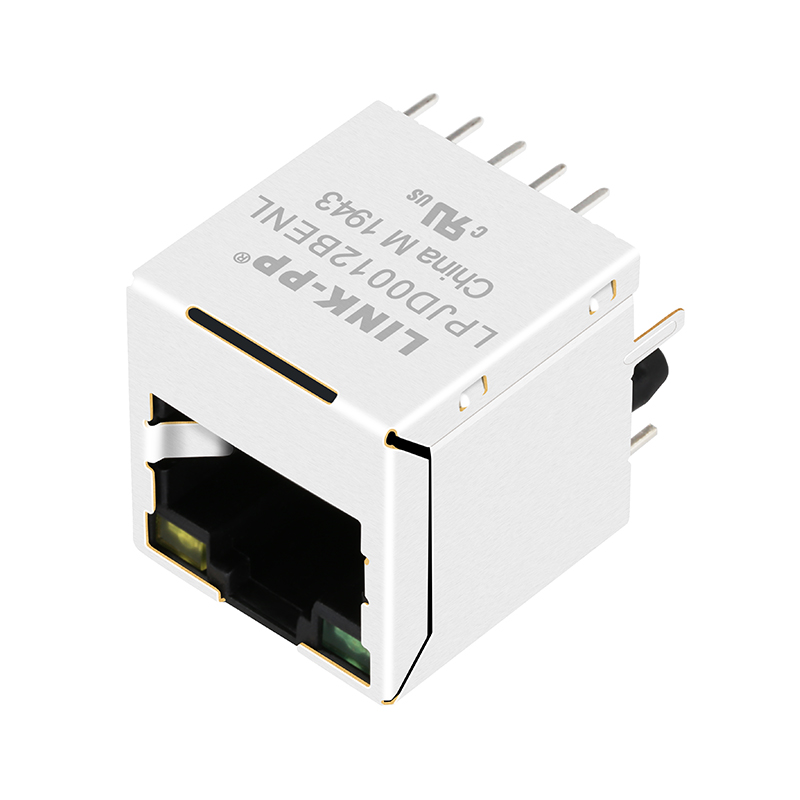

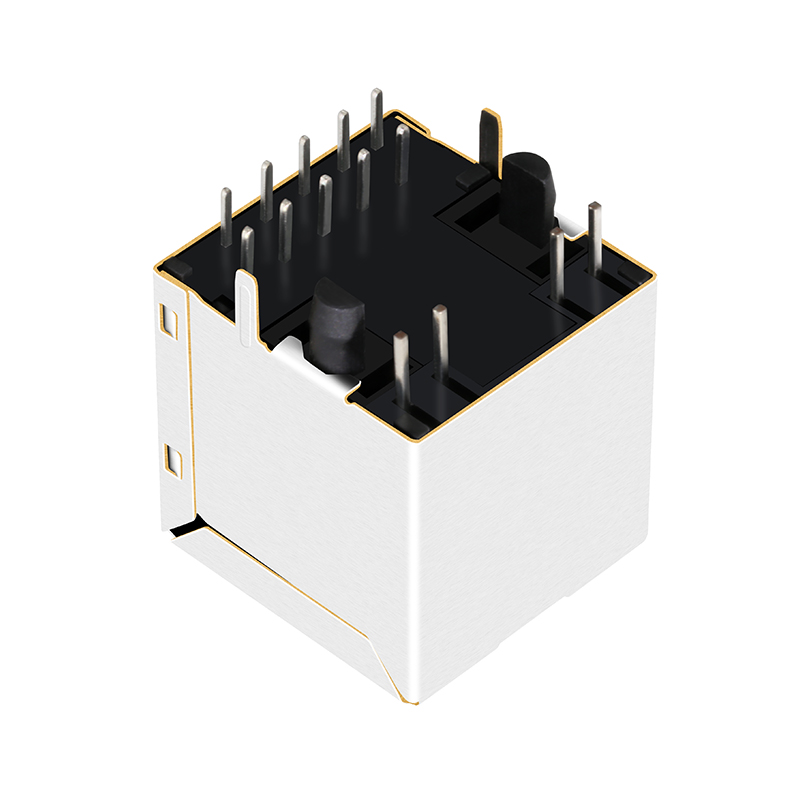

Product Angle 1 Product Angle 2 Product Angle 3 Product Angle 4
Click Below Products Link To Get More ☜
Product Category Tree
Product Certificate
Production Process 1 Production Process 2 Production Process 3 Quality Check 1 Quality Check 2 Quality Check 3
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer supplier.
Manufacturing Center Area 1 Manufacturing Center Area 2
FAQ
Q 1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q 2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee is covered by the customer's side.
Q 3. What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production orders generally take 15 to 30 days.
Q 4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q 5. Can you accept OEM/ODM orders?
Yes, we accept both OEM and ODM orders. Please send an inquiry to us so that we can proceed with a detailed discussion.
Q 6. What is your advantage?
We offer over 19 years of dedicated production experience and have been a trusted partner for industry leaders for many years.
