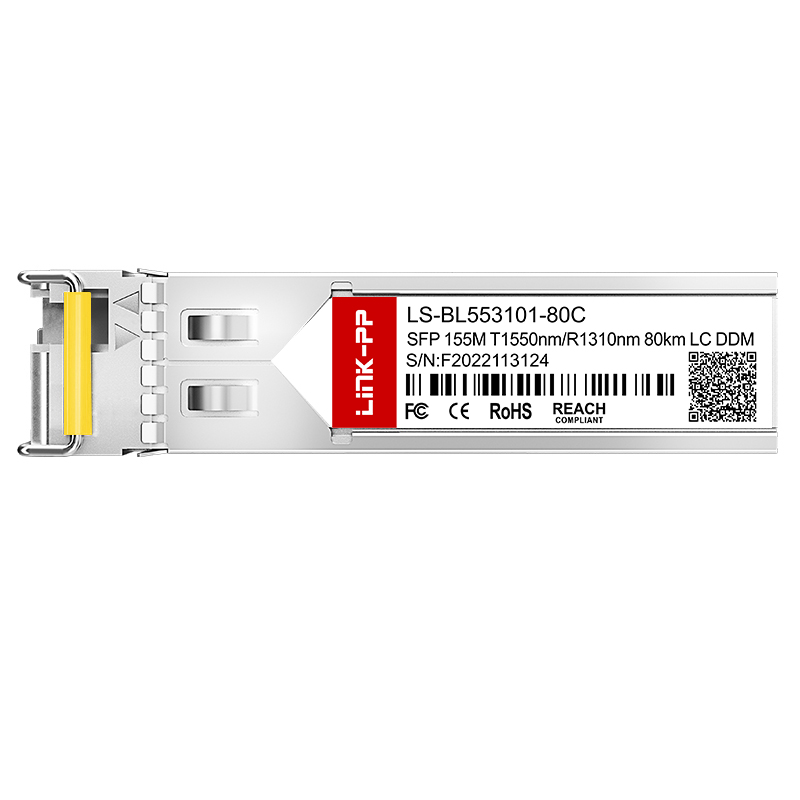

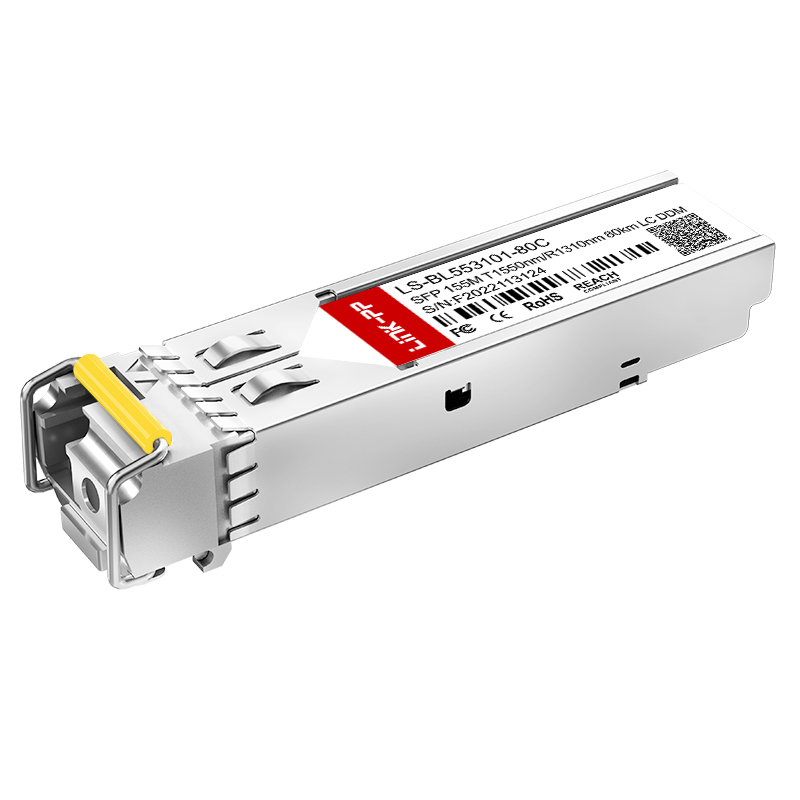

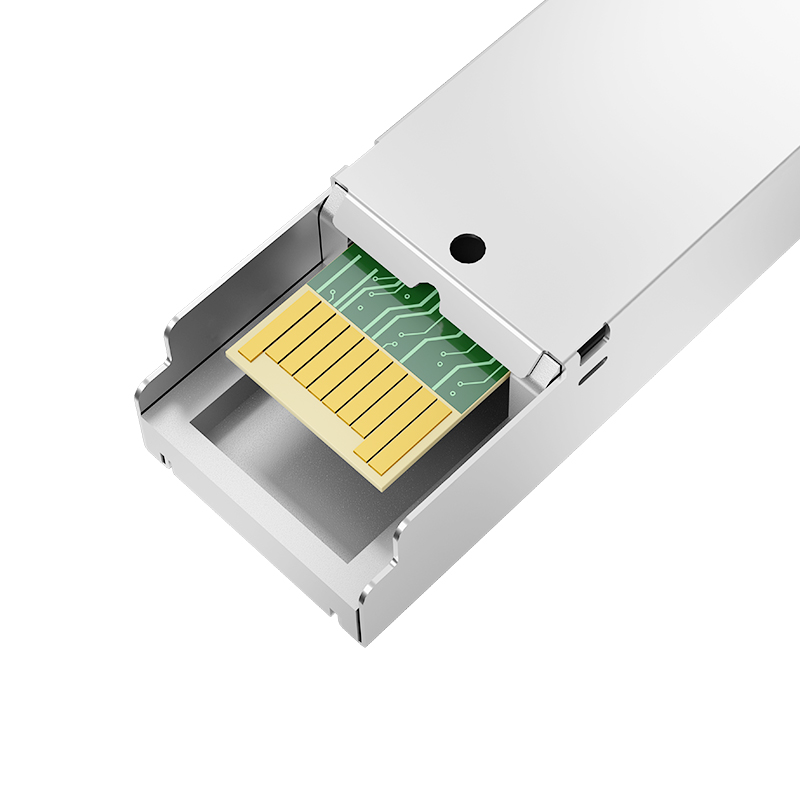

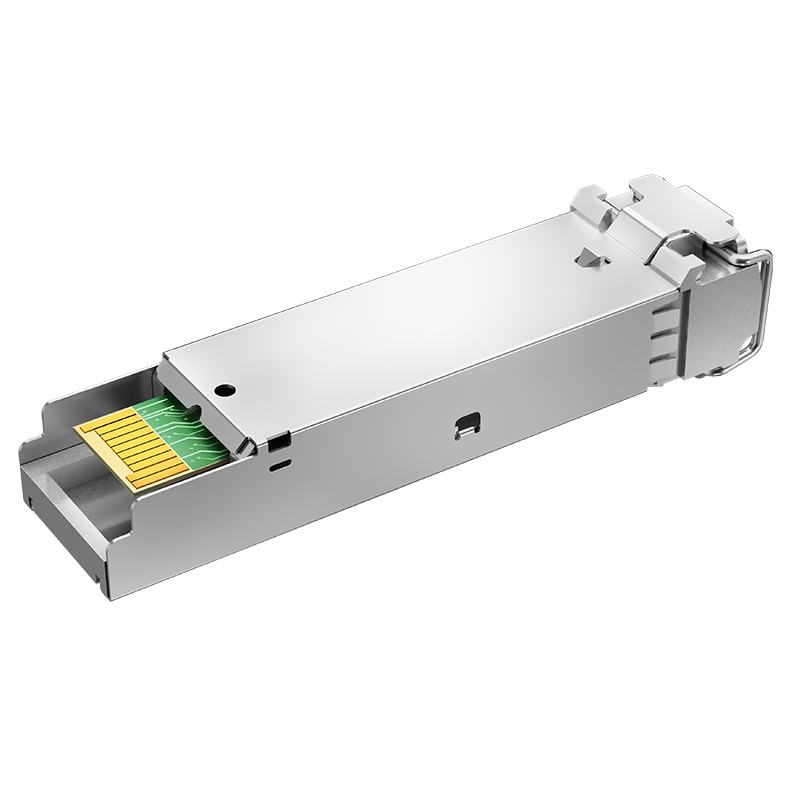

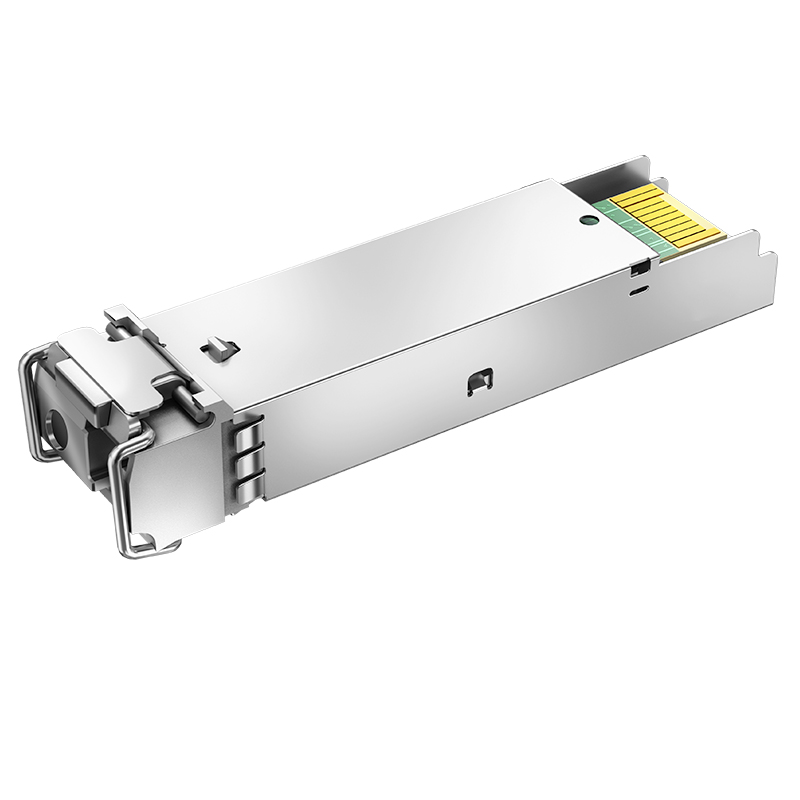

1550nm-TX/1310nm-RX Bidirectional SFP 155M Bidi 80km SMF LC Optic Transceiver Module

1 / 5

1550nm-TX/1310nm-RX Bidirectional SFP 155M Bidi 80km SMF LC Optic Transceiver Module

Send Inquiry

Product Description

Form Factor	SFP
Max Data Rate	155Mbps
Wavelength	1550nm-TX/1310nm-RX
Max Cable Distance	80km
Connector	Simplex LC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-5 ~ 2dBm
Receiver Sensitivity	< -32dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	SFP MSA and SFF-8472
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 155M BiDi SFP

Part Number	Data Rate	Wavelength	Distance	Components	DDM
LS-BL315501-10C	155Mbps	1310nm-TX/1550nm-RX	10km	FP/PIN	Yes
LS-BL553101-10C	155Mbps	1550nm-TX/1310nm-RX	10km	FP/PIN	Yes
LS-BL315501-15C	155Mbps	1310nm-TX/1550nm-RX	15km	FP/PIN	Yes
LS-BL553101-15C	155Mbps	1550nm-TX/1310nm-RX	15km	FP/PIN	Yes
LS-BL315501-20C	155Mbps	1310nm-TX/1550nm-RX	20km	FP/PIN	Yes
LS-BL553101-20C	155Mbps	1550nm-TX/1310nm-RX	20km	FP/PIN	Yes
LS-BL315501-40C	155Mbps	1310nm-TX/1550nm-RX	40km	FP/PIN	Yes
LS-BL553101-40C	155Mbps	1550nm-TX/1310nm-RX	40km	FP/PIN	Yes
LS-BL315501-80C	155Mbps	1310nm-TX/1550nm-RX	80km	FP/PIN	Yes
LS-BL553101-80C	155Mbps	1550nm-TX/1310nm-RX	80km	FP/PIN	Yes
LS-BL495501-80C	155Mbps	1490nm-TX/1550nm-RX	80km	DFB/PIN	Yes
LS-BL554901-80C	155Mbps	1550nm-TX/1490nm-RX	80km	DFB/PIN	Yes

Network Applications & Solutions

Optical Transport Networks

We provide end-to-end DWDM devices along with comprehensive optical passive and active equipment, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with data rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.

Wireless

Our solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul architectures, meeting the strict reliability and performance requirements for various 4G/5G system scenarios.

FTTx

Aimed at global communication network constructors, we provide total FTTx optical fiber access solutions that cover all-optical or combined optical-copper access products.

Subsystems

To ensure the normal and continuous operation of communication lines, we offer line protection and monitoring solutions integrating optical line protection (OLP) and optical line monitoring (OLM) subsystems.

Related Products SFP Cage

Why Choose Us

Manufacturing Capabilities & Overview

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. Our production lines feature advanced manufacturing and testing equipment imported from abroad to ensure reliable performance.

We provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell our products worldwide.

Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer free samples to test quality, though the customer is responsible for shipping costs.

What is the delivery time?

Stock items are ready to ship immediately, while mass production typically takes 15 to 30 days.

What after-sales service do you offer?

We offer a one-year guarantee period along with 24-hour online technical support.

Do you accept OEM/ODM orders?

Yes, we accept OEM/ODM orders. Please send an inquiry to us so we can discuss the details.

What is your main advantage?

We possess extensive production experience, advanced equipment, and maintain long-term partnerships with leading global enterprises to deliver reliable solutions.
