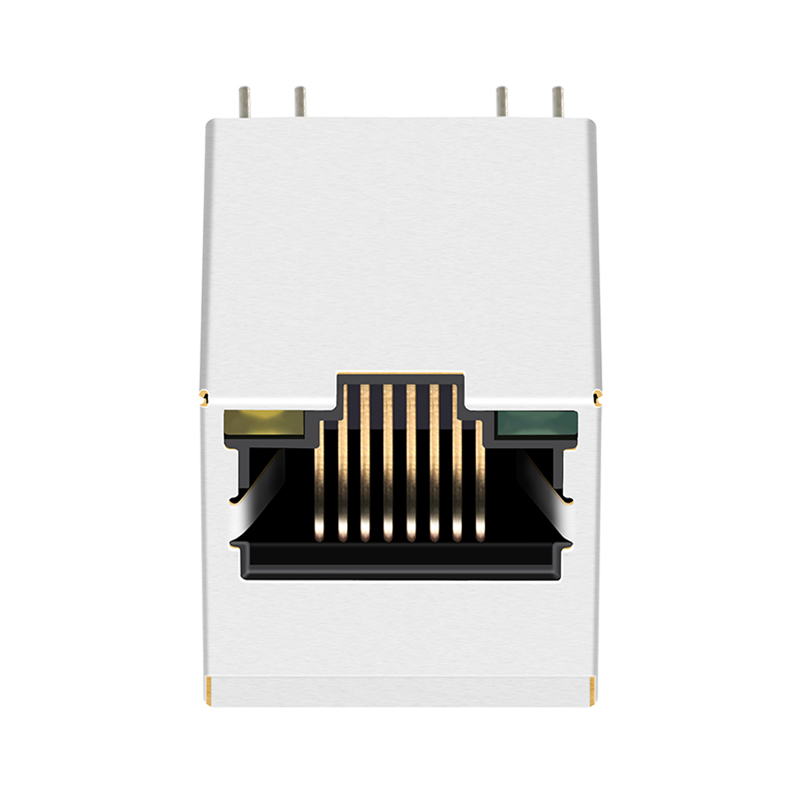

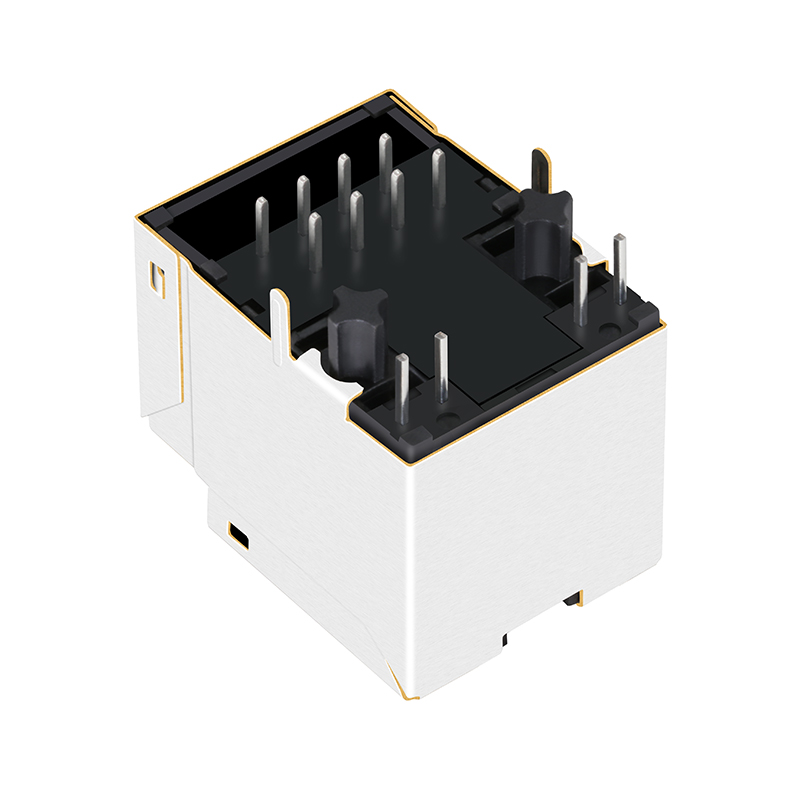

HFJV1-2450-L12RL HFJV1-2450-L21RL SI-46004-F 10/100 Base-T Vertical PoE RJ45 Female Jack

Product Description

Product Map Overview
HFJV1-2450-L12RL HFJV1-2450-L21RL SI-46004-F 10/100 Base-T Vertical PoE RJ45 Female Jack
📋 Products Description
Item RJ45 Female Connector
Bothhand Part Number HFJV1-2450-L12RL HFJV1-2450-L21RL SI-46004-F
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product Details Dimension View Product Details Schematic View
Product Angle View 1 Product Angle View 2 Product Angle View 3 Product Angle View 4
Products Link Categories Overview
Product Category Series Diagram
Global Operations Banner Technical Layout Specification 1 Technical Layout Specification 2 Technical Layout Specification 3 Technical Layout Specification 4 Technical Layout Specification 5 Technical Layout Specification 6
🏢 Company Profile
Established in 1997, the company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Manufacturing Workshop View 1 Manufacturing Workshop View 2
FAQ
Q1: Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2: Can I get a sample before committing to mass production?
Yes, we can offer you free samples to test quality, but you are responsible for the shipping fee.
Q3: What is your delivery time?
We offer immediate shipment for stock products, and a lead time of 15-30 days for mass production orders.
Q4: What after-sales service do you provide?
We offer a one-year warranty period and provide 24-hour online technical support.
Q5: Can you accept OEM/ODM orders?
Yes, we accept OEM/ODM orders. Please send your inquiries to us so we can proceed with a detailed discussion.
Q6: What is your advantage?
We have 19 years of professional production experience and have maintained partnerships with leading global enterprises for many years.
