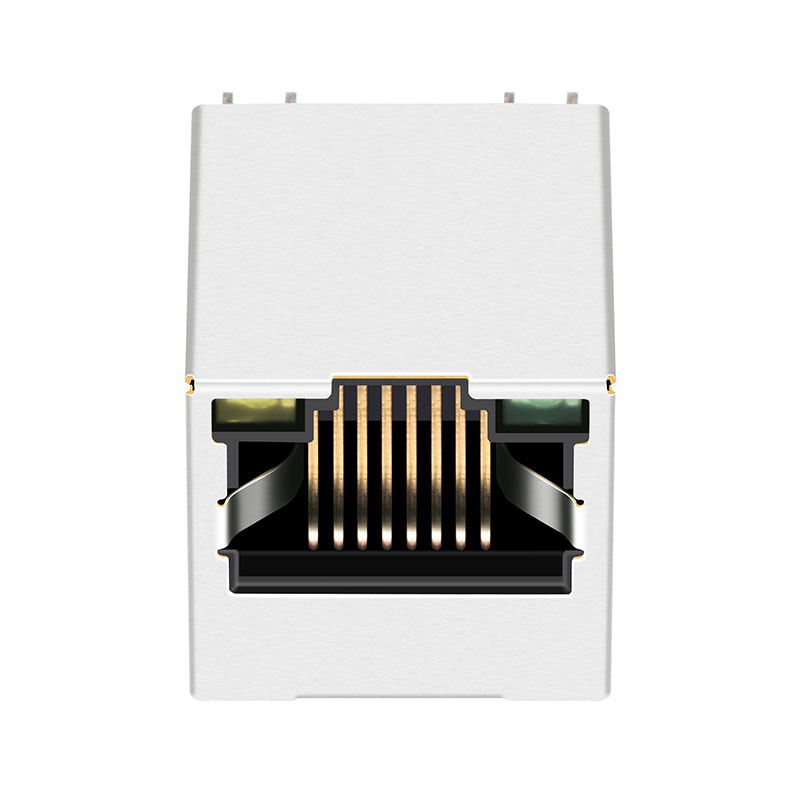

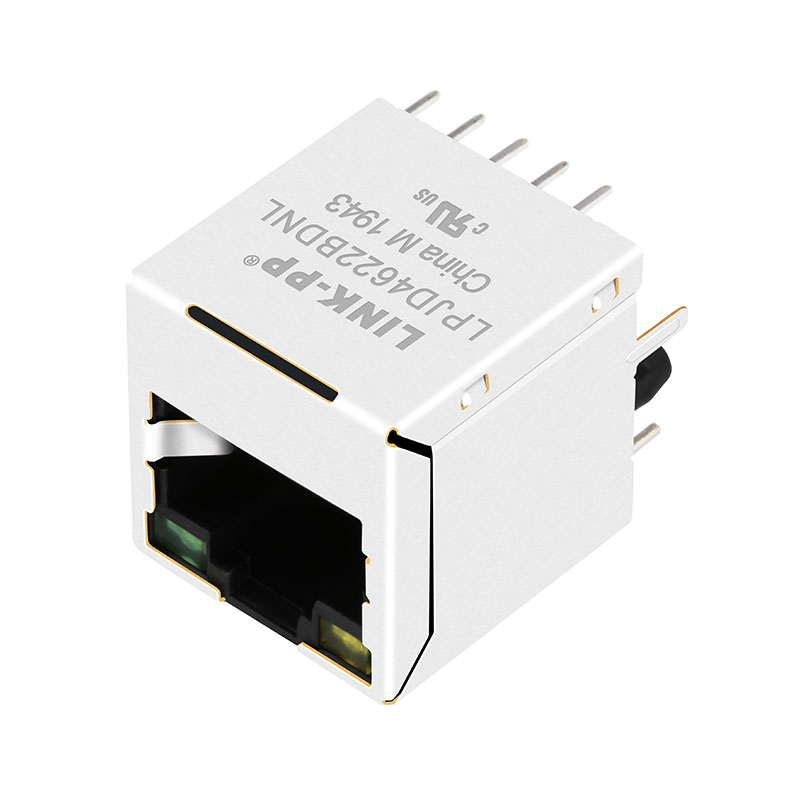

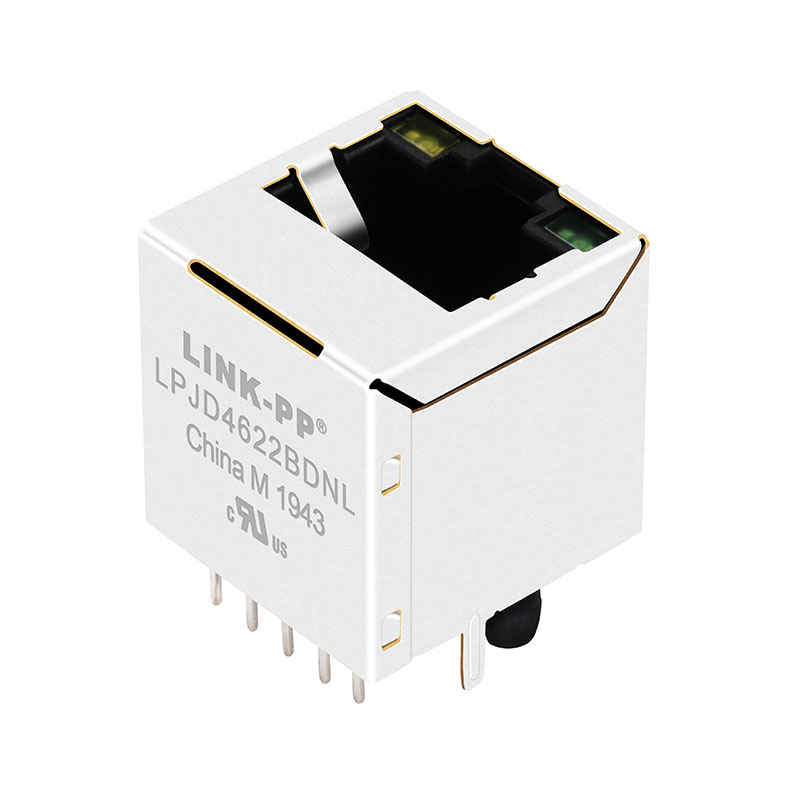

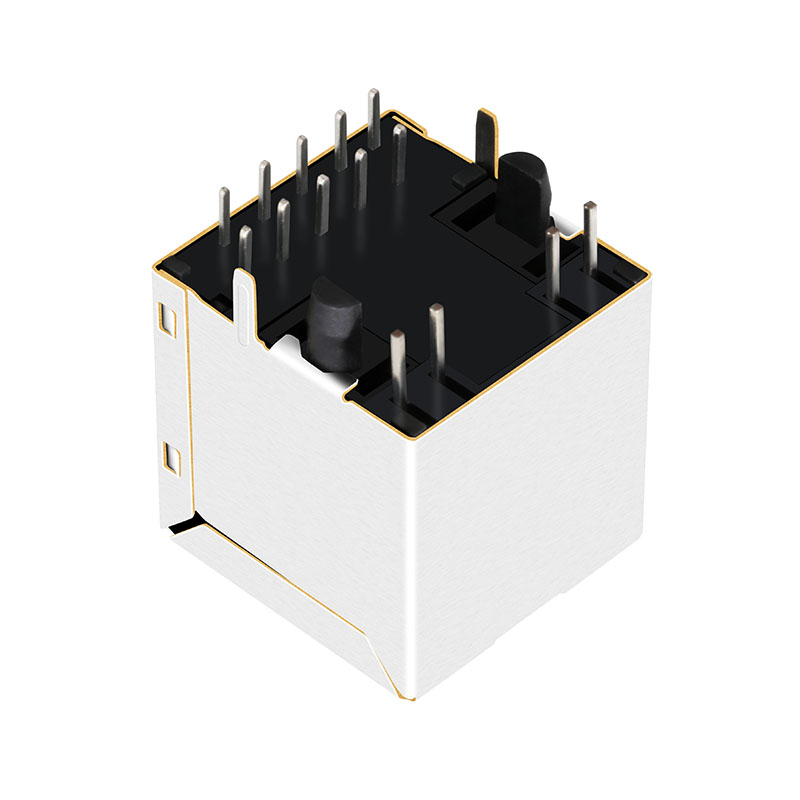

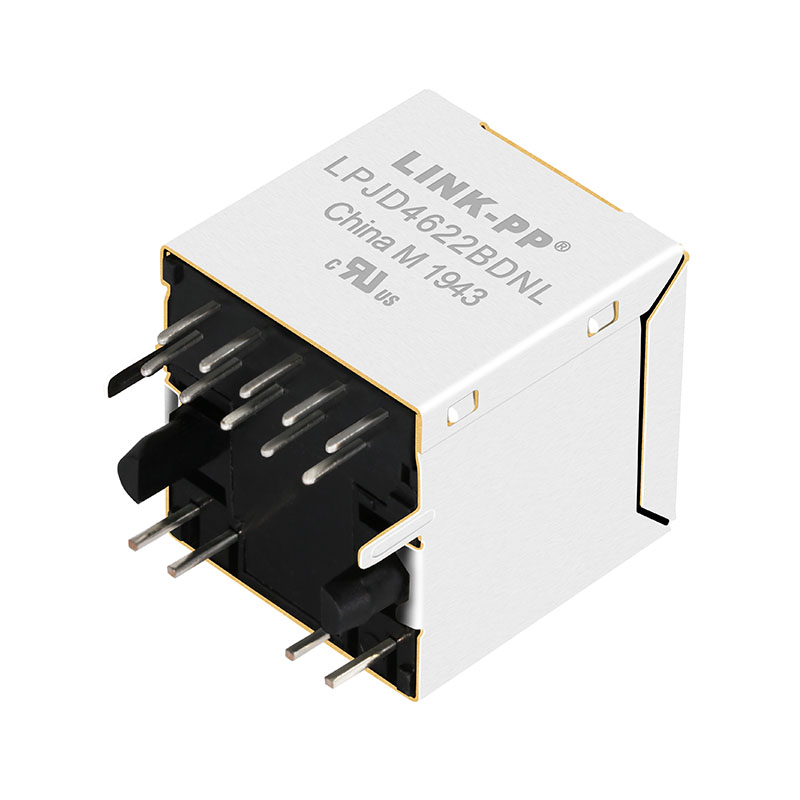

| Item | RJ45 Female Connector |
| Manufacturer Part Number | LPJD4622BDNL |
| Cross Part Number | 1840472-1 7499110120A JXD2-0015NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Up |
| Cores per Port | 8 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | -40°C TO 85°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but shipping costs are the responsibility of the customer.
Items currently in stock are ready to ship immediately, while mass production typical lead times range between 15 and 30 days.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, please contact us with your specifications so we can initiate a detailed discussion on your requirements.
We offer 19 years of professional production experience and have partnered with global tech industry leaders for many years.
