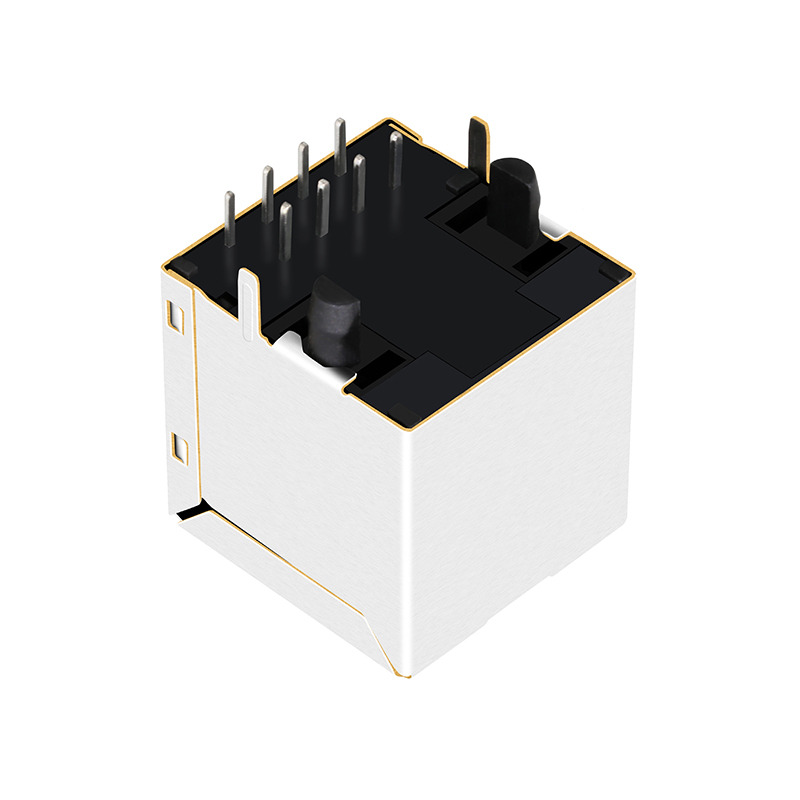

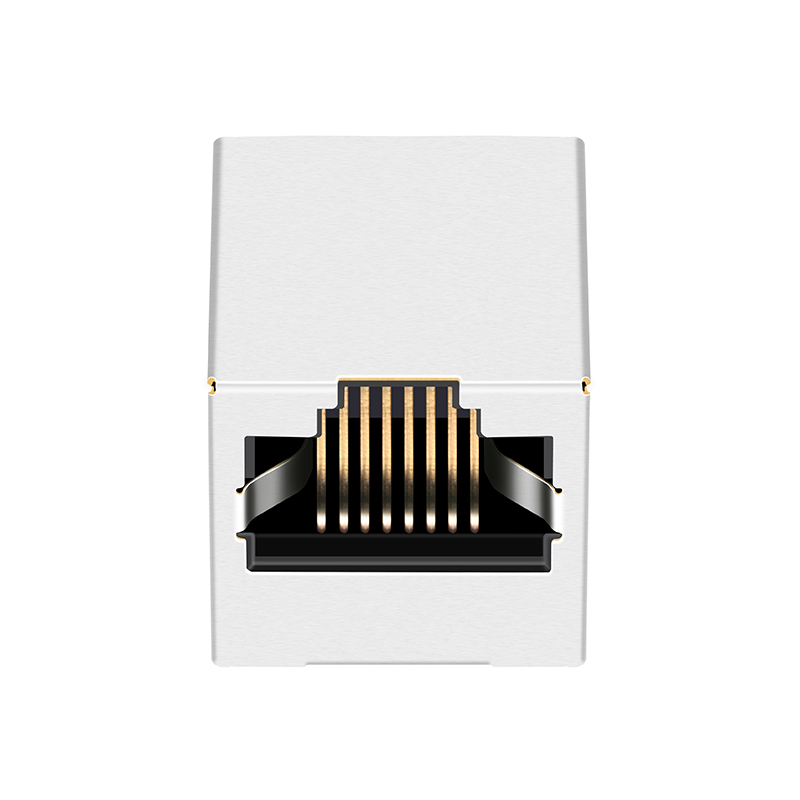

KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
1 / 5
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds

KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds

Send Inquiry

Product Description

RJ45 Connectors & LAN Transformers
KHU1S041F3 LF 10/100 Base-t Vertical Top Entry Straight RJ45 Jack Connector Without Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0011DNL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Jack Connector Detail
👉 Browse Below Products To Learn More 👈
RJ45 Product Categories
Connector Dimensions & Schematic
Product Quality Showcase 1 Product Quality Showcase 2 Product Quality Showcase 3
Product Quality Showcase 4 Product Quality Showcase 5 Product Quality Showcase 6
Production & Quality Showcase
Manufacturing Facility 1 Manufacturing Facility 2 Manufacturing Facility 3
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we offer free samples for quality testing, with shipping costs covered by the customer.
What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production typically takes 15-30 days.
What after-service can you offer?
We provide a one-year warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are welcome. Please contact us with your specifications for a detailed discussion.
What is your advantage?
We have over 19 years of professional production experience and have partnered with major industry leaders like Intel and Jabil for many years.
