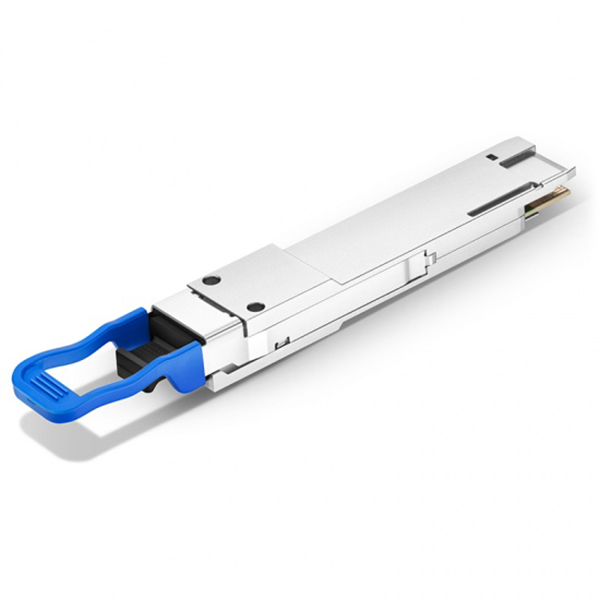

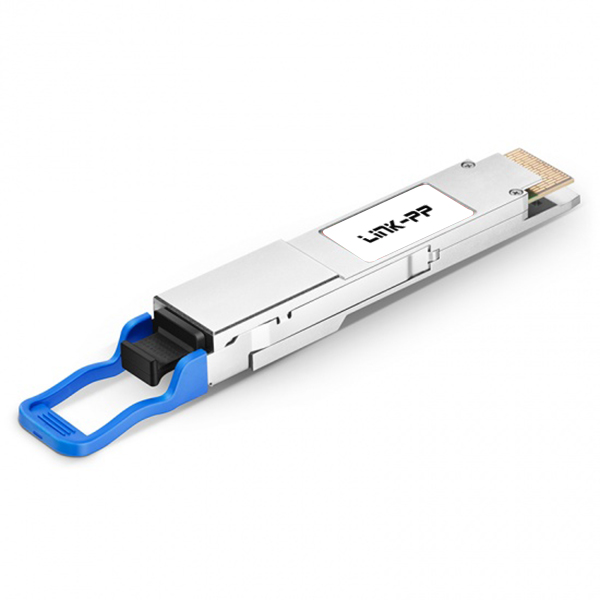

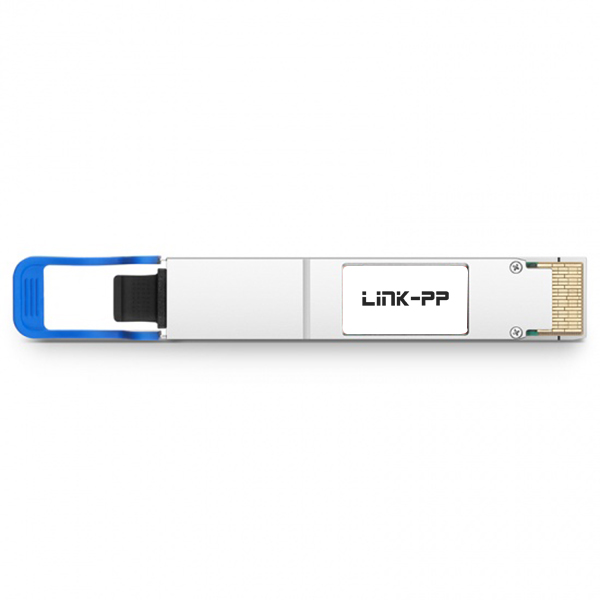

400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
1 / 5
400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km

400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km

Send Inquiry

Product Description

Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor QSFP-DD
Max Data Rate 425Gbps
Max Cable Distance 10km
Wavelength 1310nm
Connector Duplex LC
Media SMF
Optical Component LWDM EML/PIN
TX Power -2.8~5.3dBm
RX Power -9.1~5.3dBm
Modulation 8x 50G PAM4
Powerbudget 6.3dB
Power Consumption ≤10W
Extinction Ratio 3.5dB
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Warranty 5 Years
Sample Available
Protocols IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Component
Optical Module Close-up
Transceiver Internal Design
Optical Transceiver Interfaces
Module Applications Map
Optical Hardware Architecture
Ethernet Transceiver Production
Module Quality Inspection
Related Products SFP Cage
SFP Cage Interface
Why Choose Us
Quality Standard Control
Advanced Assembly Facility
Product Compliance Certifications
Global Supply Logistics
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL, and equipped with advanced manufacturing facilities and test instruments imported from abroad.
Our company was established in 1997, and we currently have around 2,000 staff members. With an abundant production capacity of 3,000K units per month, we are able to deliver products with very short lead times.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The product range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Leveraging the latest optoelectronics technologies, we develop, manufacture, and sell high-performance components globally.
Factory Workshop
Testing Equipment Lab
Frequently Asked Questions
Q1 Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee should be covered on your end.
Q3 What is your delivery lead time?
Items currently in stock are ready to ship immediately, while mass production orders typically require 15-30 days.
Q4 What after-sales service and support do you offer?
We provide a one-year warranty period along with 24-hour online technical support to assist you with any inquiries.
Q5 Do you accept OEM or ODM orders?
Yes, we accept both OEM and ODM orders. Please send your inquiries and specifications to us for a detailed discussion.
Q6 What are your main manufacturing advantages?
We possess over 19 years of professional production experience and have been a trusted partner for industry leaders such as Intel and Jabil for many years.
