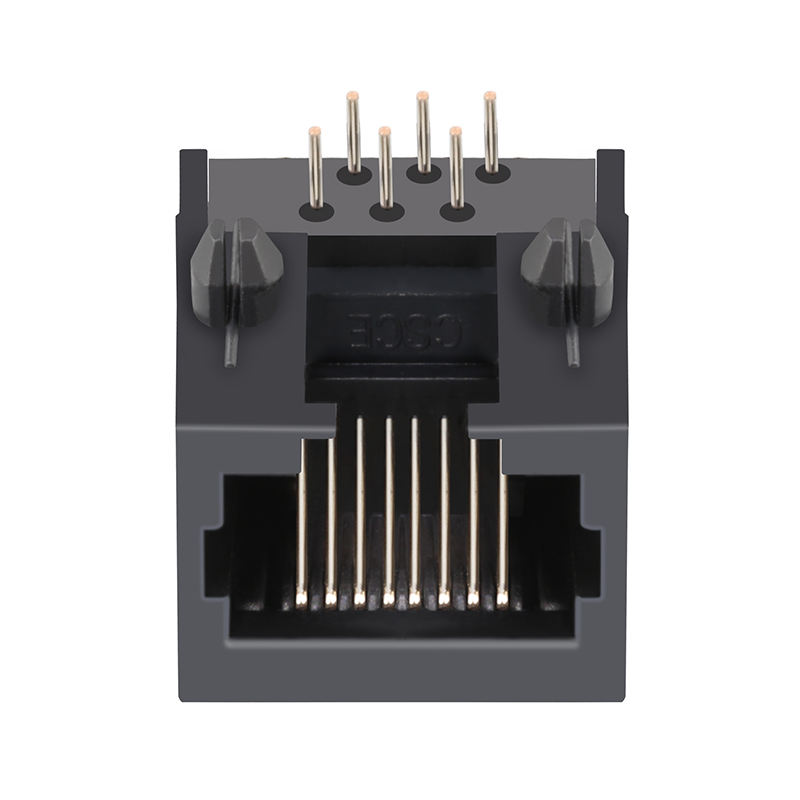

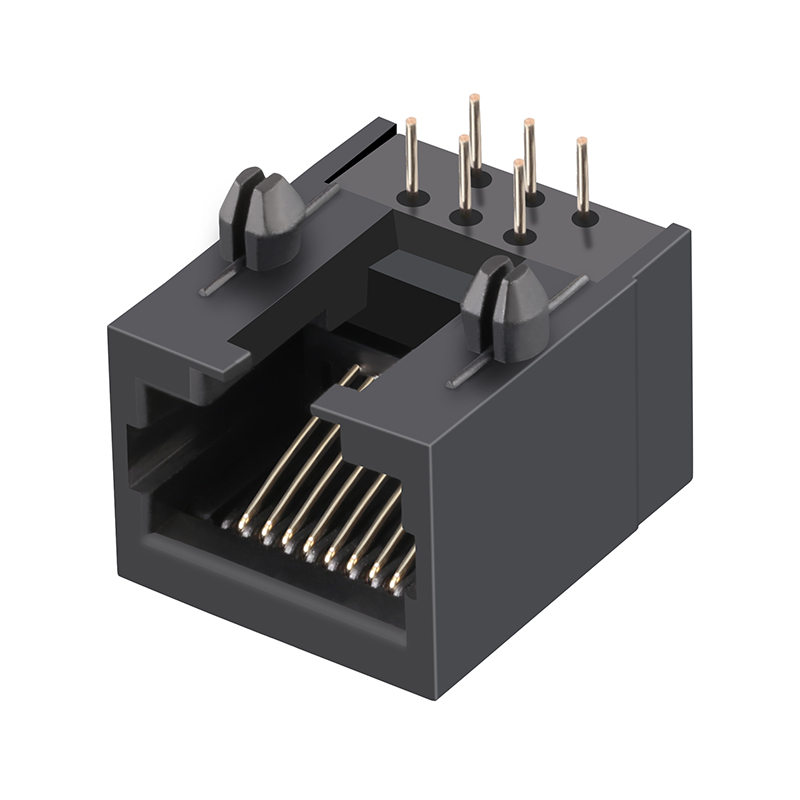

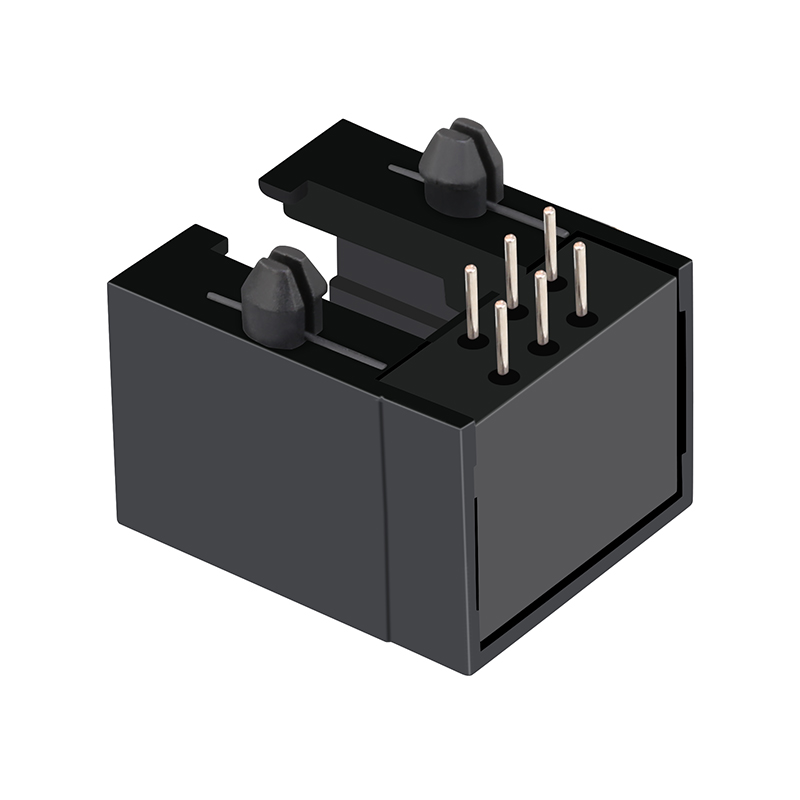

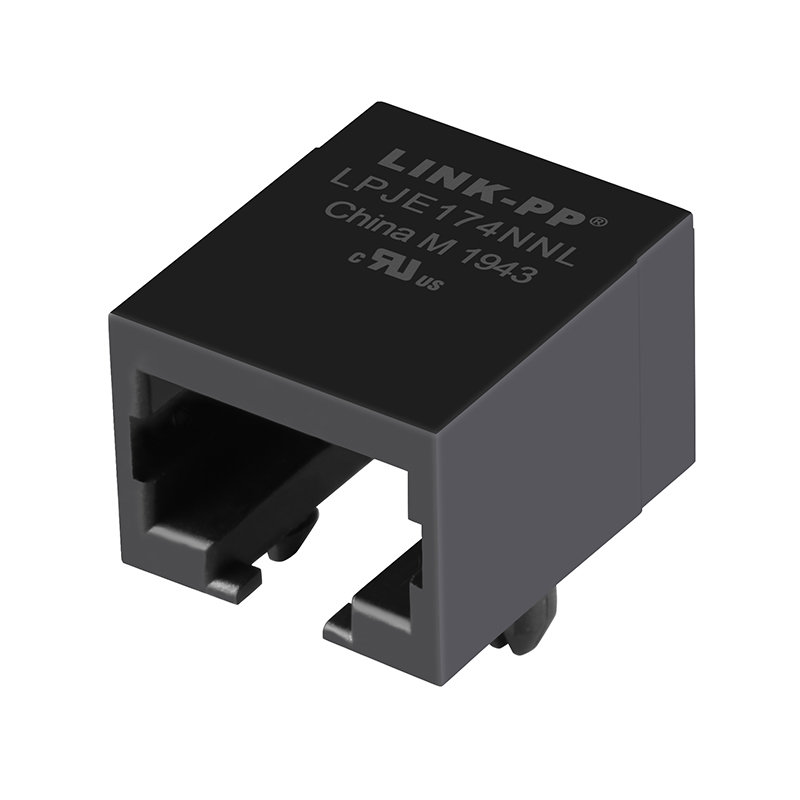

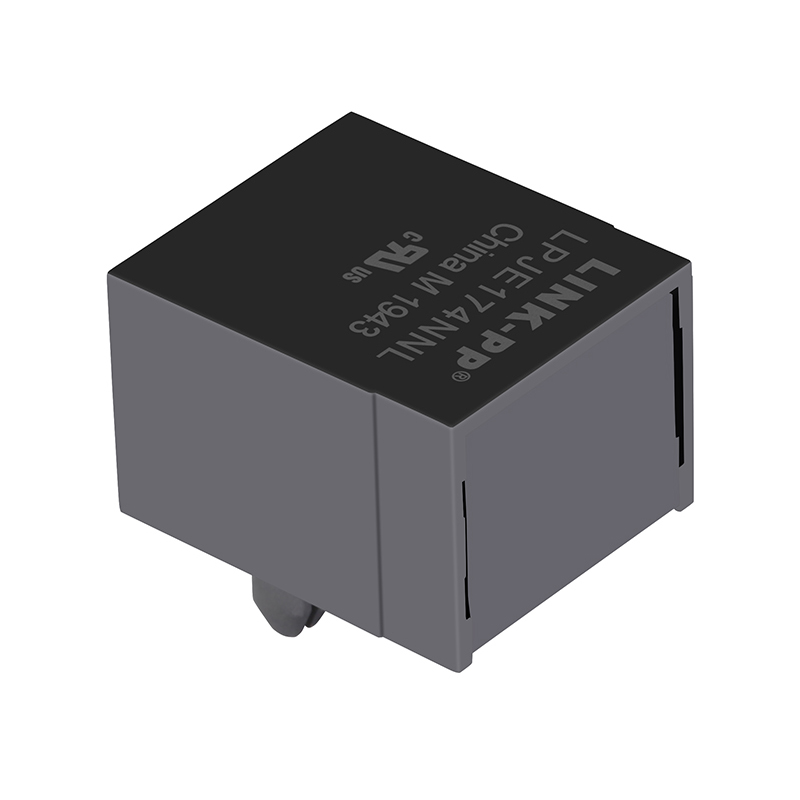

TS6P6C-PCB-U Unshielded Tab Down Without LEDs 1X1 Port RJ45 Modular Jack
| Item |
RJ45 Female Connector |
| Part Number |
LPJE174NNL |
| Compatible With |
S11-ZZ-0159 |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
6p6c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Down |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without |
| LED Option |
Without |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
-40°C TO 85°C |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
🔍
Product Categories Overview
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
💬 1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, etc.
💬 2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs should be paid by the buyer.
💬 3. What is your delivery time?
Stock items are ready to ship immediately, while mass production typically takes 15-30 days.
💬 4. What after-service do you offer?
We offer a one-year warranty period along with 24-hour online technical support.
💬 5. Can you accept OEM/ODM orders?
Yes, we accept OEM/ODM customization. Please send your detailed requirements to us for discussion.
💬 6. What is your primary advantage?
We have over 19 years of dedicated production experience and have been a trusted partner to world-renowned global brands for many years.
