| Part Number | 5-6610197-1 |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port | 4 |
| Diodes | NO DIDES41 |
| LED Option | GREEN/YELLOW |
| Latch | UP |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
💡 What is the main application of the 5-6610197-1 connector?
This connector is designed for 10/100 BASE-T Ethernet interfaces, providing reliable networking connections for computer peripherals, telecommunication systems, and network interface cards.
💡 Does this RJ45 connector feature integrated magnetics?
Yes, it includes internal magnetic components (BST circuit) to handle signal conditioning, noise isolation, and EMI suppression for Ethernet data transmission.
💡 What are the layout and mechanical configurations?

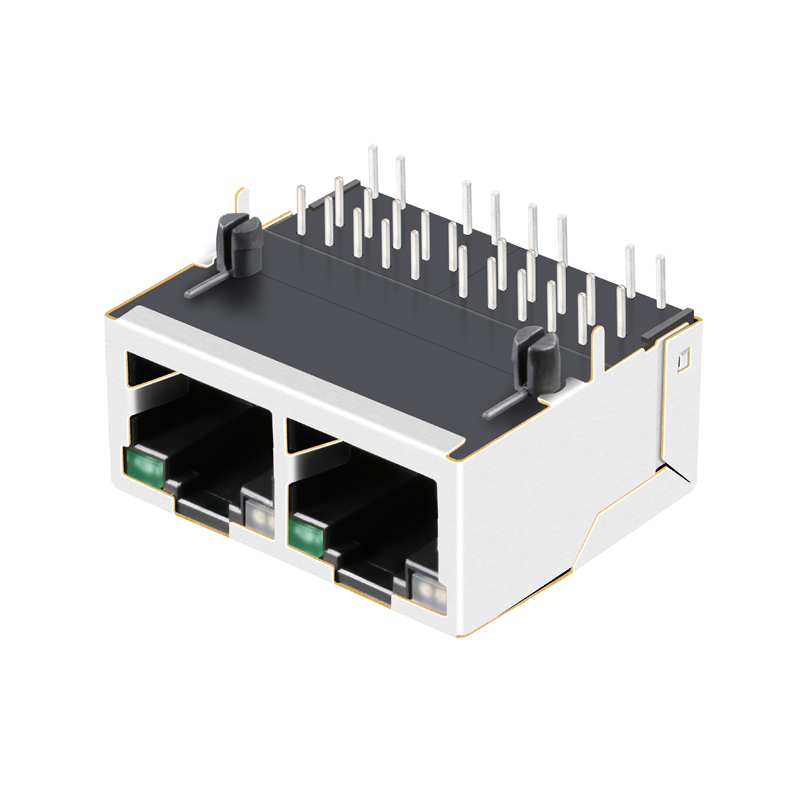

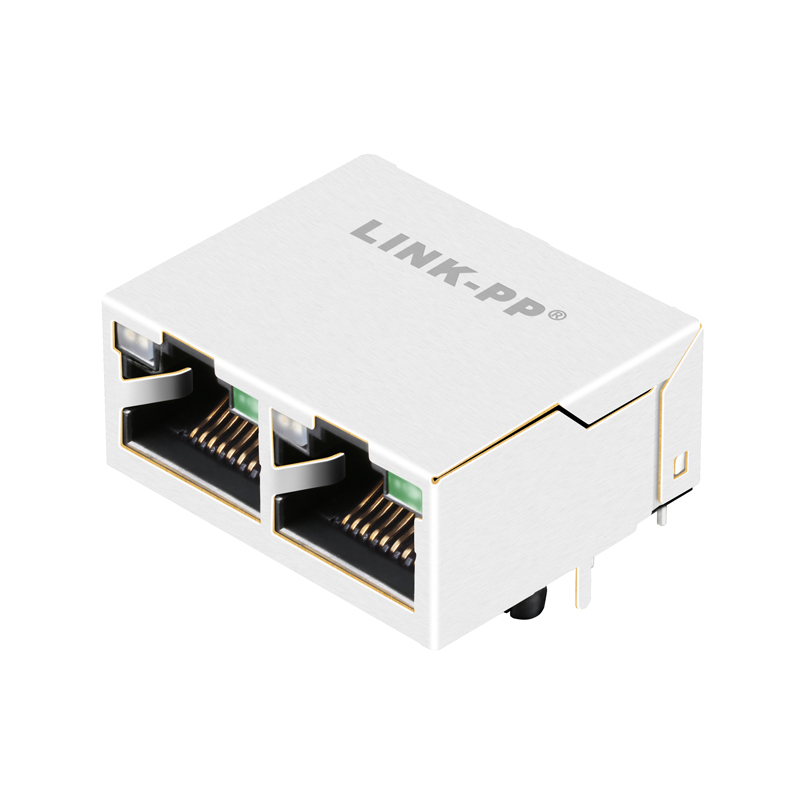

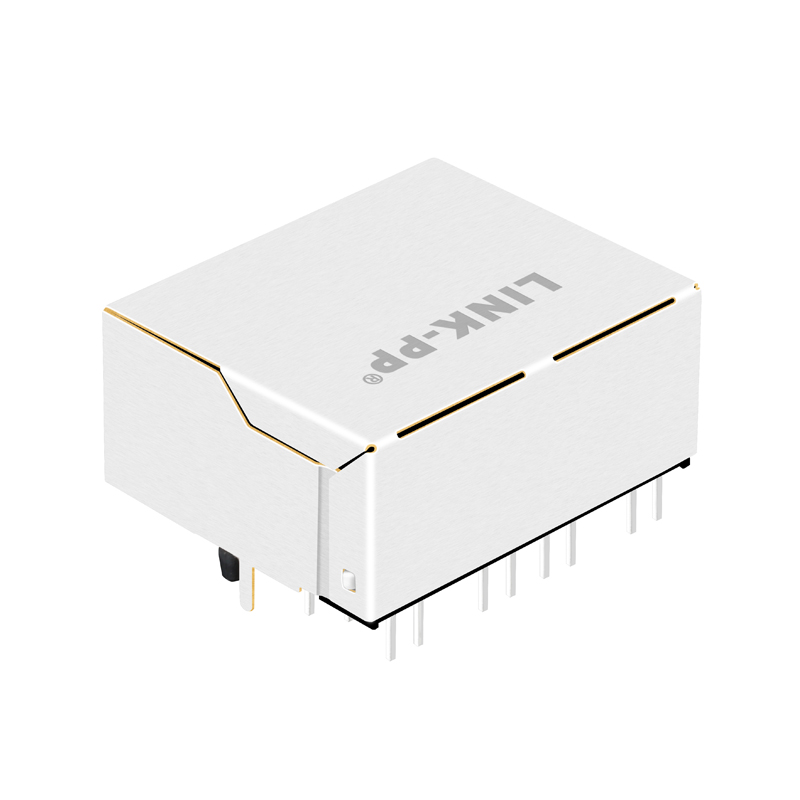

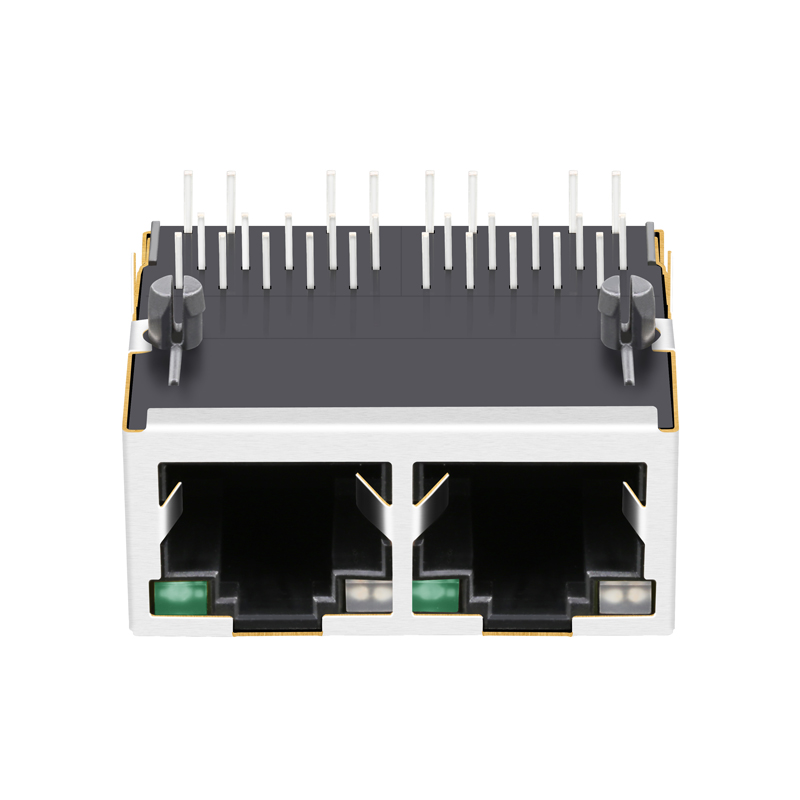

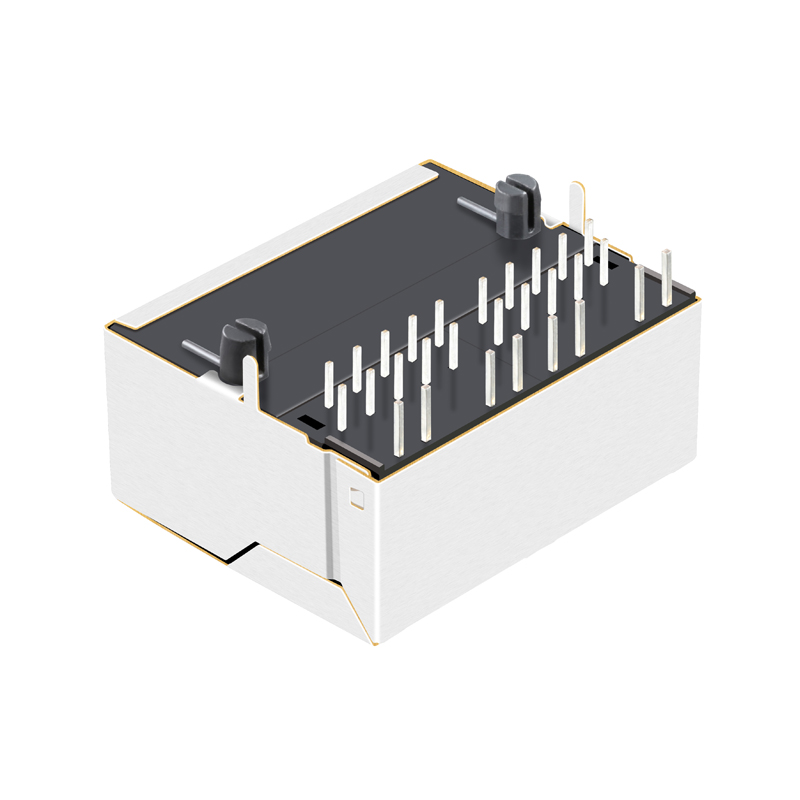

It features a 1X2 Harmonica Jack (2 ports side-by-side) with a Tab-Up latch direction and side entry (right angle) PCB mounting layout.
💡 What temperature range does this connector support?
The connector is rated to operate from 0°C to 70°C for commercial applications, and up to -40°C to 85°C for industrial environments.
💡 Is the 5-6610197-1 connector RoHS compliant?
Yes, it is RoHS compliant (RoHS-5 status with lead in solder exemption) matching international environmental standards.
💡 What options are available for contact mating area plating?
Depending on your requirements, the contact mating area is available with gold plating thicknesses of 6u", 15u", 30u", or 50u".
