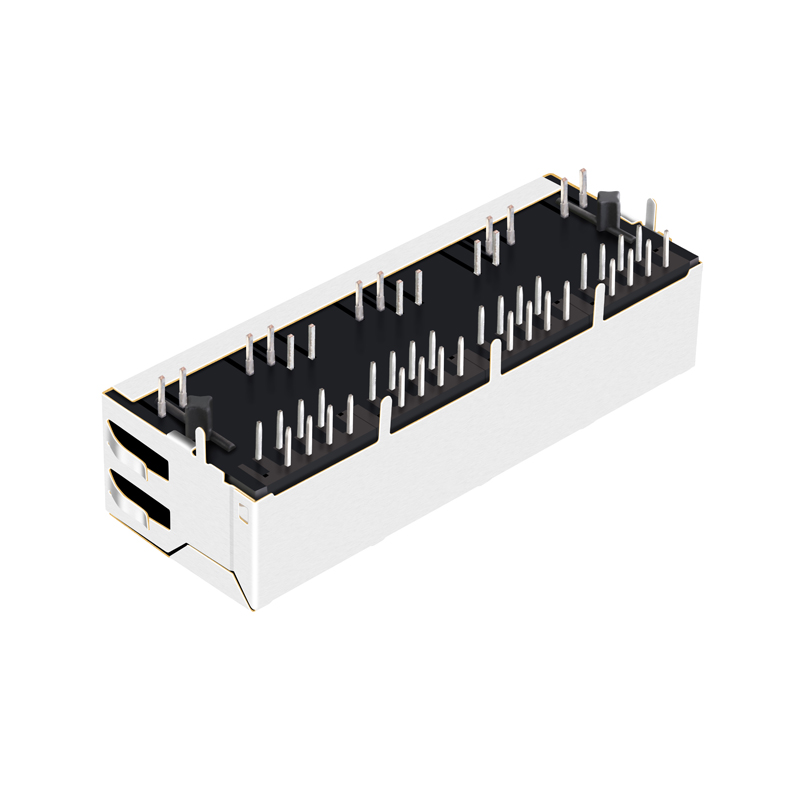

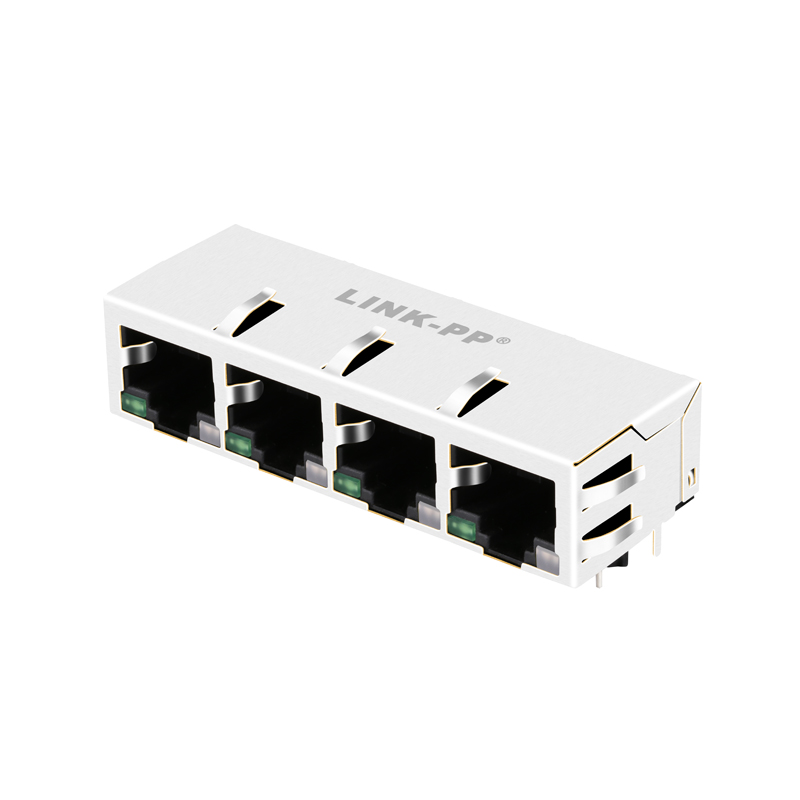

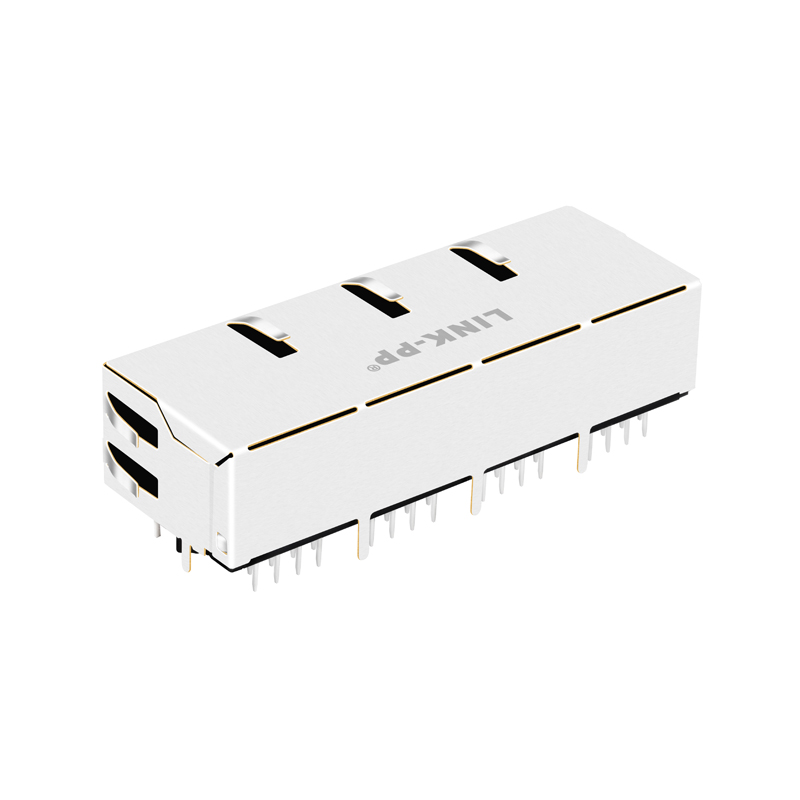

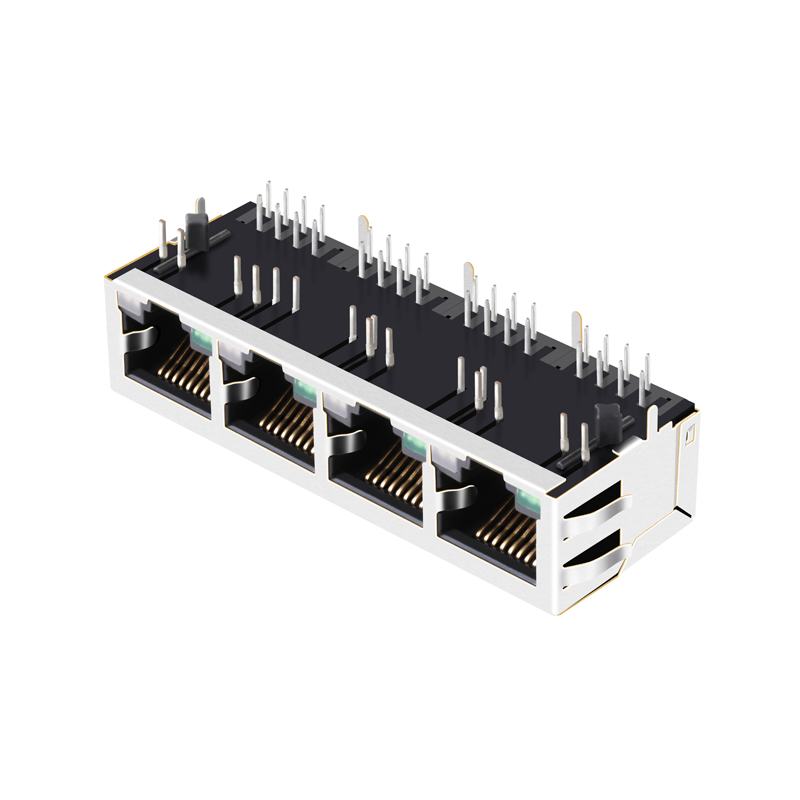

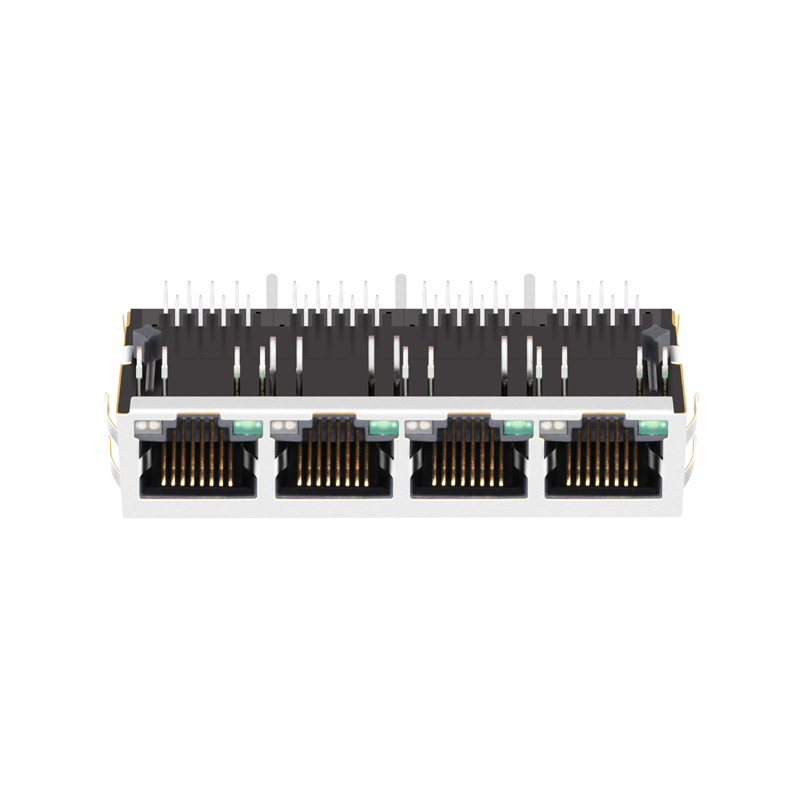

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Send Inquiry

Product Description

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Gigabit Ethernet RJ45 Female Connector 1X4 Modular Jack

Gigabit Ethernet RJ45 Female Connector 5-6610068-7 Details

Gigabit Ethernet RJ45 Modular Jack 5-6610068-7 Specifications

Part Number	5-6610068-7
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	4
Diodes	NO DIDES41
LED Option	GREEN/GREEN&ORANGE
Latch	UP
Number of Ports	1X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	1000 BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Our Connectors

World’s Leading Supplier Of Integrated RJ45 Connectors And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Quality Guarantee

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
OEM Partner of major brands for 9 Years
Preferred supplier for global top-tier technology enterprises
Quality Guarantee: 6 Years

Competitive Price & Service

Highly competitive pricing relative to industry standards
Short Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Custom designs tailored to customer requirements
Optimized global logistics and shipping rates

Corporate Quality Policy

Commitment to the highest level of customer satisfaction
Continuous improvements in quality, delivery, and service
Expectation of flawless performance from every process
Company standard of defect-free products and services

Gigabit Ethernet RJ45 1X4 Dimensional Drawing

RJ45 Female Connector Modular Jack Dimensions

Gigabit Ethernet RJ45 Female Connector Schematic Diagram

✦ Widely trusted and preferred by leading electronics and telecommunications manufacturers.

✦ Our high-performance components are integrated into advanced development board designs globally.

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7 FAQ

What are the main interface specifications of the 5-6610068-7 connector?

This component is a Gigabit Ethernet RJ45 female connector configured as a 1X4 modular jack (4 ports side-by-side) with a tab-up configuration. It supports high-speed 1000 BASE-T network transmission.

What operating temperature range does this RJ45 connector support?

It supports standard commercial operating temperatures of 0°C to 70°C, and industrial grade setups ranging from -40°C to 85°C to handle demanding environmental conditions.

Does this modular jack feature built-in LED indicators?

Yes, the connector includes LED options, featuring green/green or green & orange indicators to allow convenient hardware-level network status checks.

What contact mating area plating options are available?

To guarantee signal integrity and prevent corrosion, the contact mating area is gold-plated, available in thicknesses of 6u", 15u", 30u", and 50u".

Are these RJ45 connectors compliant with environmental standards?

Yes, these modular jacks are RoHS compliant (RoHS-5 with lead in solder exemption) and comply with REACH standards, manufactured under strict quality and environmental management policies.

Can I request customization or prototypes for evaluation?

Yes, custom design solutions are available to match specific board requirements, and free evaluation samples can be provided upon request.
