Product Description
Specification
| Item |
Value |
| Place of Origin |
China |

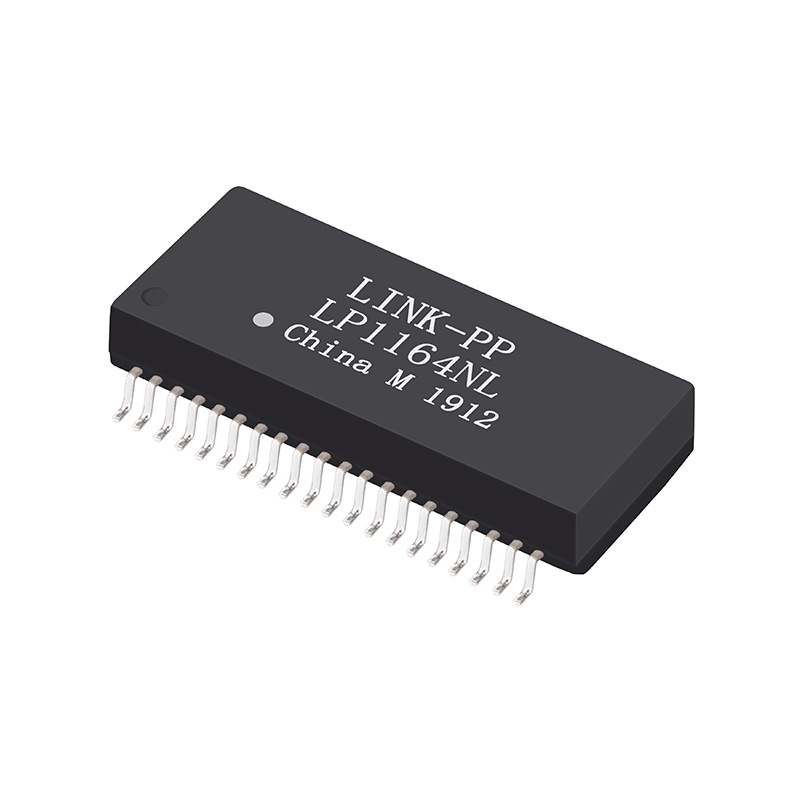

| LINK-PP Part Number: |
LP1164NL |
| Pulse Part Number |
H1164NLT |
| Transformer Type |
Lan Transformer |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
Quad Port |
| Speed |
10/100 Base-T |
| Package |
Tape & Reel |

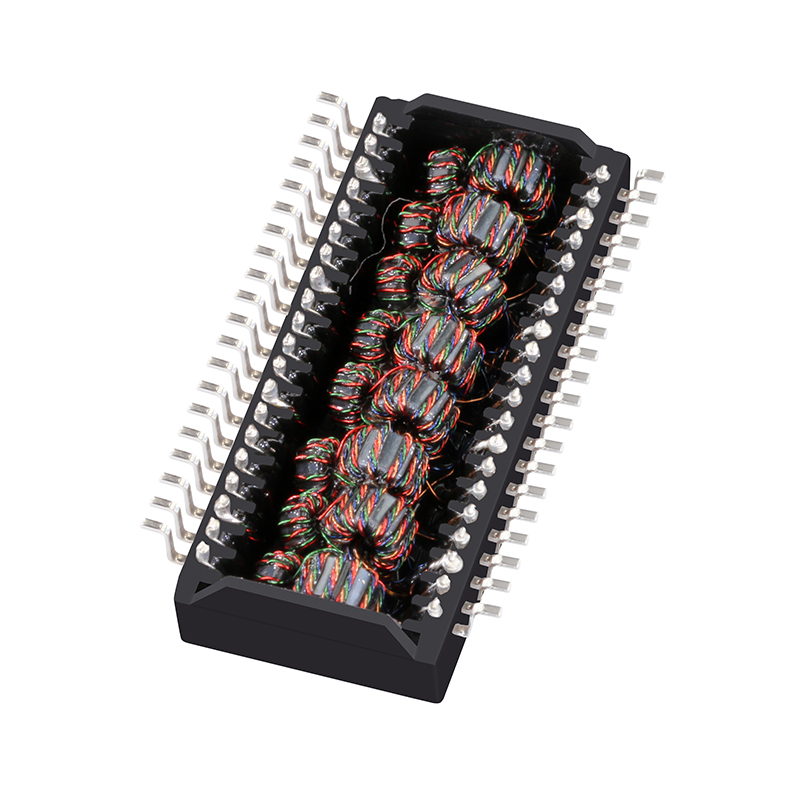

| Cores per Port |
16 |
| PIN number |
40 |
| Mounting Type |
Surface Mount |
| Temperature |
0℃ TO +70℃ |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C,S |
Packing & Delivery
N.W/pcs: 0.005kg
Package: Reel
SPQ: 400pcs
Qty/carton: 1600pcs
Carton size: 36*35.5*23cm
G.W/carton: 7.5kg
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE, and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.
Main Products:
• 10/100/1000M LAN pulse transformer and filter
• RJ45 connector with 10/100/1000M magnetic
• T1/E1, T3/DS3/E3/STS-1 interface line transformer
• ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our longterm friend.
Frequently Asked Questions
Q1: What are the main transformer products you provide?
We supply a wide range of products including 10/100/1000M LAN pulse transformers, filters, RJ45 connectors with built-in magnetics, T1/E1/T3/DS3/E3/STS-1 interface line transformers, and ISDN/HDSL/ADSL/VDSL splitters.
Q2: What certifications do your products hold?
Our manufacturing processes and magnetic components are fully certified by ISO9001:2000, RoHS, REACH, CE, and UL certifications, ensuring global quality standards.
Q3: What is the monthly production capacity and lead time?
We maintain a monthly production capacity of 3000K units, supported by around 2,000 staff members. This allows us to ensure short delivery lead times for large volume orders.
Q4: Are these LAN transformers compatible with PoE (Power over Ethernet)?
The specific item LP1164NL listed here is designed for standard Ethernet (Non-PoE) applications. For PoE compatible alternatives, please contact our support team.
Q5: What packaging standard do you use for shipment?
Products are shipped in standard Tape & Reel packaging. For typical shipments, the Standard Pack Quantity (SPQ) is 400pcs per reel, with 1600pcs per shipping carton (Carton size: 36*35.5*23cm).
Q6: Do you support custom engineering requests for magnetic components?
Yes, our engineering team is dedicated to identifying, developing, and manufacturing custom designs to meet our customers' specific mechanical and electrical design requirements.
