Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F
Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F
1 / 2
Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F
Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F

Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F

Send Inquiry

Product Description

Product Description

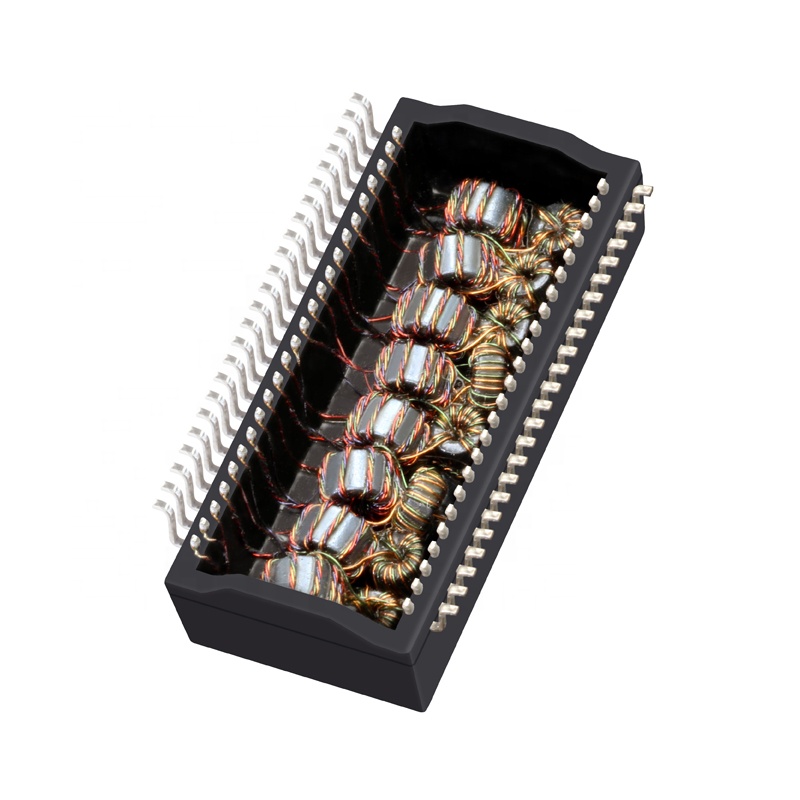

Product View 1

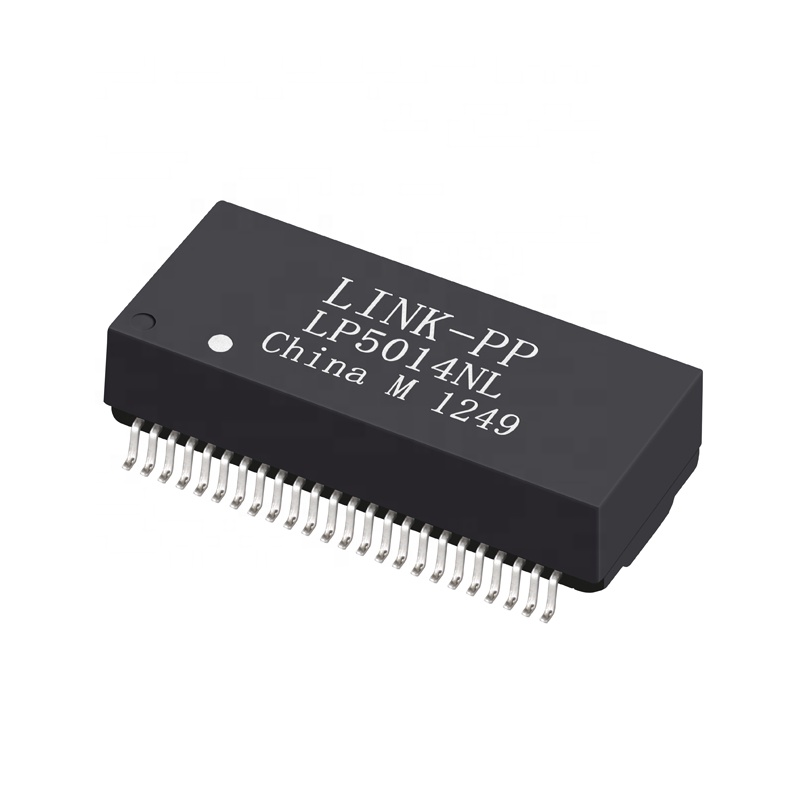

Product View 2
Specification
Item Value
Place of Origin Guangdong, China
Model Number LP5014NL
Usage Electronic
Phase Single
Coil Structure TOROIDAL
Coil Number AUTOTRANSFORMER
Part Number S558-5999-Q2-F
Part Status Active
Application-Lan Ethernet (Non-PoE)
Number of Ports Dual Port
Speed 10/100/1000 Base-TX
Package Tape & Reel
Cores per Port 16
PIN number 48 PIN
Mounting Type Surface Mount
Temperature 0℃ to +70℃
Packing & Delivery
Packaging Details
Package Specifications
N.W / pcs: 0.005 kg
Package Style: Reel
Standard Package Qty (SPQ): 350 pcs
Qty / Carton: 1400 pcs
Carton Size: 37 * 37 * 25 cm
G.W / Carton: 7 kg
Manufacturing Facilities & Production
Production Facility 1
Production Facility 2
Production Facility 3
Production Facility 4
Production Facility 5
Production Facility 6
Production Facility 7
Frequently Asked Questions
What are the main applications for the LP5014NL LAN transformer?
The LP5014NL is designed for Gigabit Ethernet (10/100/1000 Base-TX) networking and telecom devices such as routers, network switches, network interface cards (NICs), and general mainboards requiring stable magnetic coupling.
Does this Ethernet transformer support Power over Ethernet (PoE)?
No, this particular model is optimized for Non-PoE Ethernet applications, ensuring maximum efficiency for standard data line coupling.
What is the pin configuration and mounting style of this component?
It features a Surface Mount (SMD) design with a 48-pin layout, making it suitable for automated surface mount manufacturing processes.
What is the operating temperature range for LP5014NL?
This component is engineered to operate reliably in temperature environments ranging from 0℃ up to +70℃.
How is this product packaged for bulk shipment?
The parts are packaged in Tape & Reel format with 350 pieces per reel (SPQ) and 1,400 pieces per master carton to prevent damage and support automatic SMT assembly.
What magnetic structures does this dual-port transformer incorporate?
The LP5014NL uses a toroidal coil structure configured as an autotransformer, offering robust electromagnetic performance with 16 cores per port.
