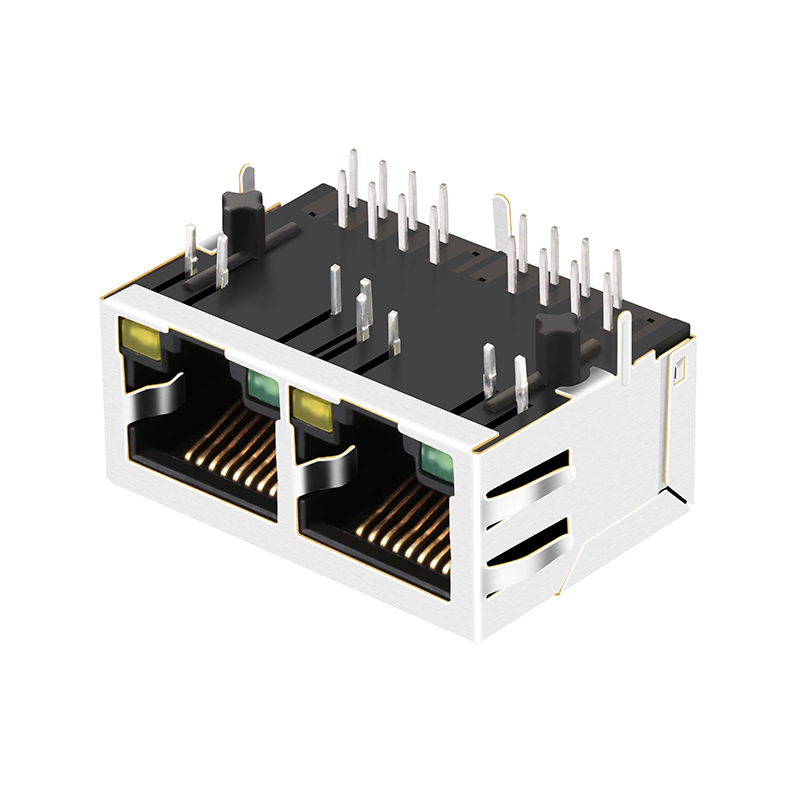

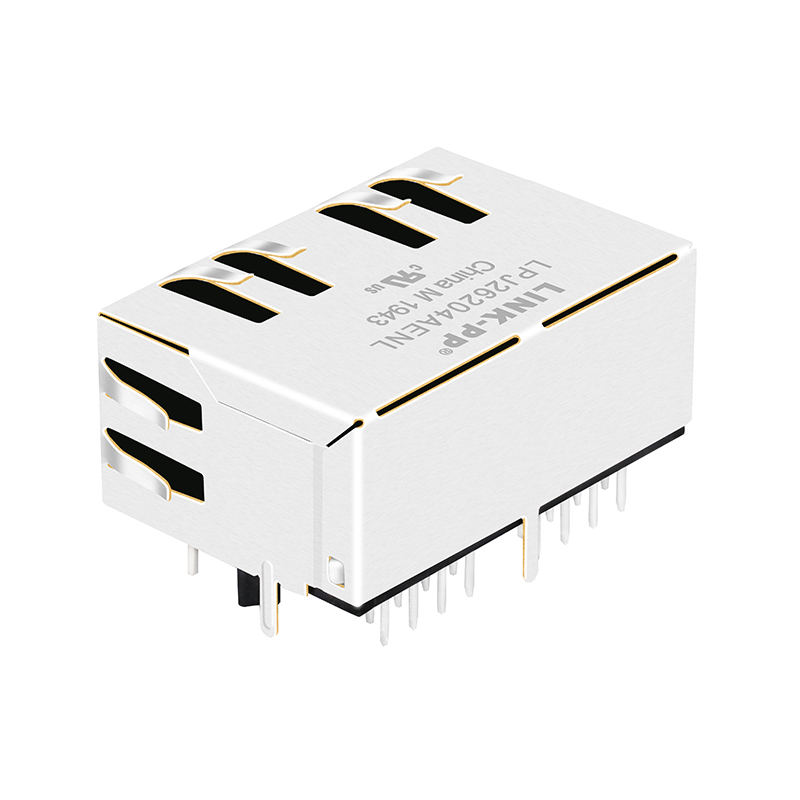

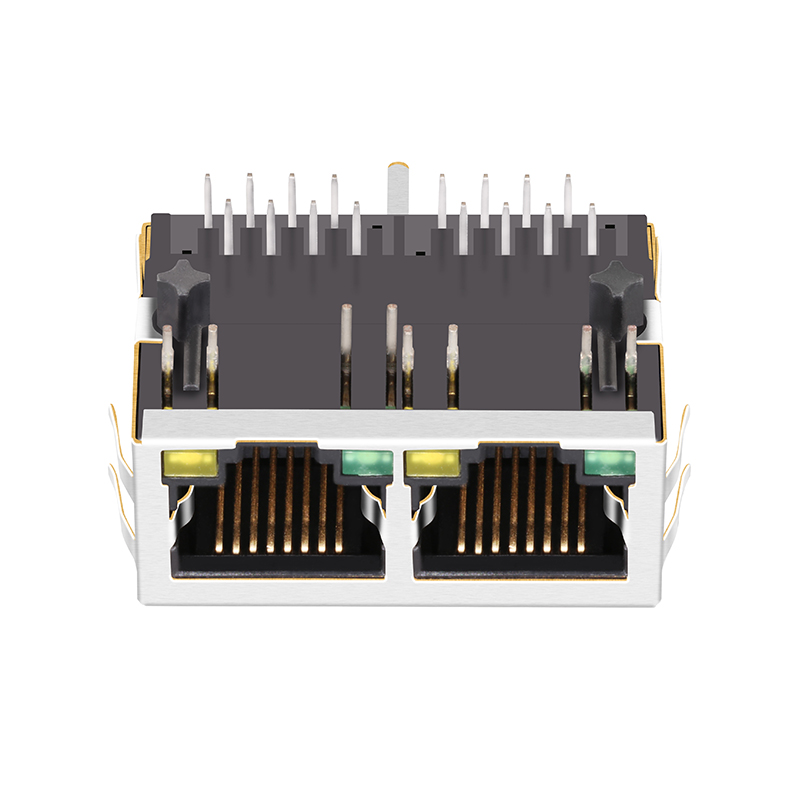

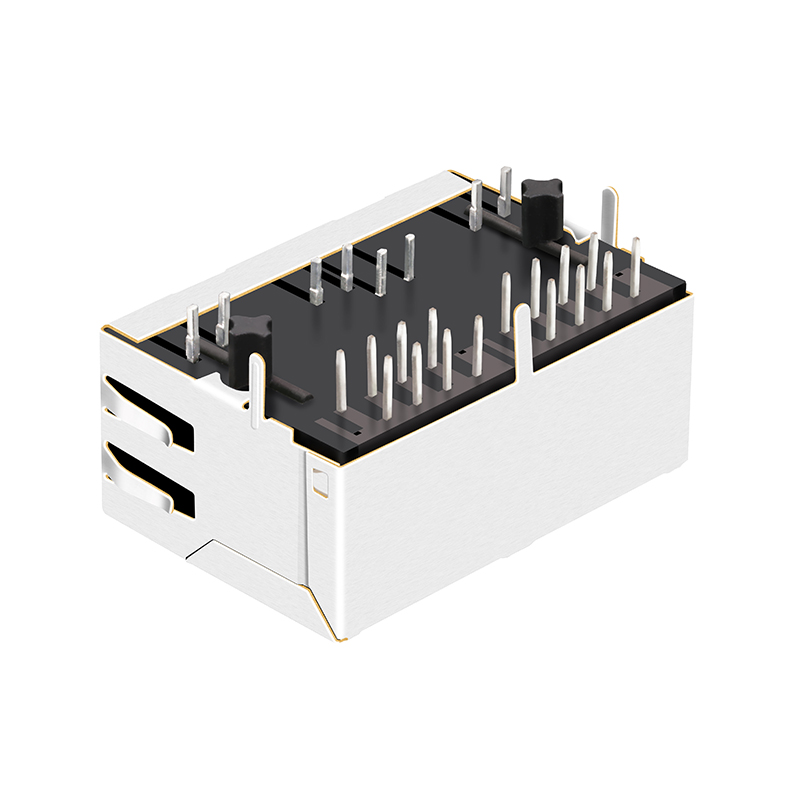

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Product Description

📋 Product Description

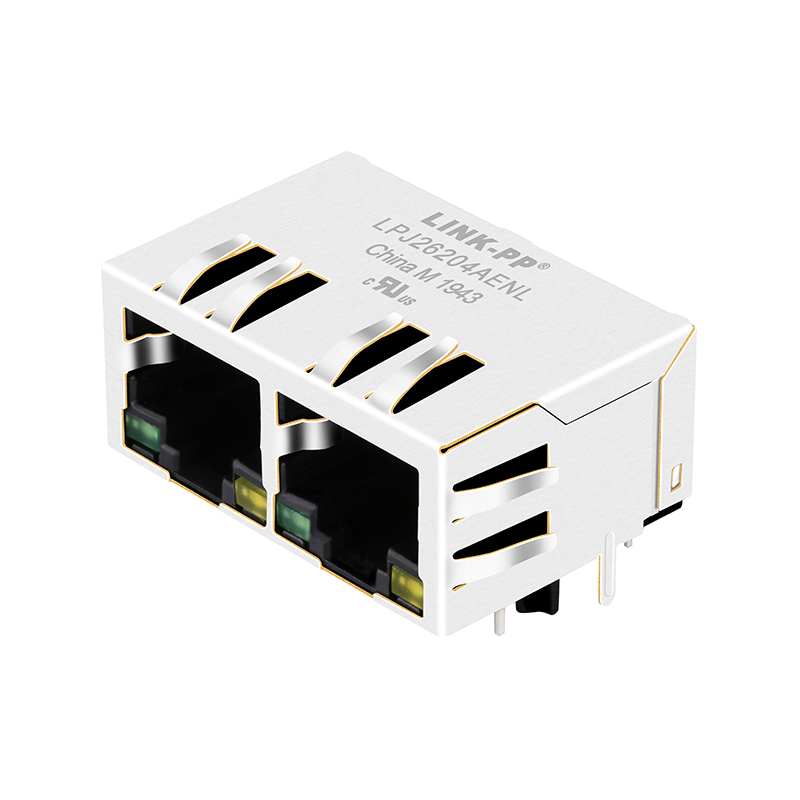

Product Image 1
Product Image 2
Product Image 3

⚙️ Specification

Item Value
Model Number LPJ26204AENL
Part Status Active
Connector Type RJ45
Applications-Lan 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green / Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Number of Ports 1x2 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C

📦 Packing & Delivery

📦 Package Details
Package: Tray, Carton size: 37*30*30cm, G.W./carton: 9kg, Qty/carton: 600pcs, SPQ: 30pcs, N.W/pcs: 0.015kg
Packing Image
RJ45 Connector Image

10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector

Applications & Compatibility:

  • Suitable for industrial temperatures from –40 °C up to +85 °C
  • Compatible with Industrial Ethernet systems like EtherCAT or Profinet
  • Compliant with most IC’s for Ethernet applications such as Microchip, Broadcom, Marvell
  • Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications
Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
Gallery Image 7

FAQ

1. Who are we?
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. We own advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we have a large production capacity that enables us to deliver goods within short lead times. Moreover, we provide professional complete solutions for magnetic components alongside strong technical support. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
2. How can we guarantee quality?
We always ensure a pre-production sample is approved before mass production, followed by a final inspection before shipment.
3. What can you buy from us?
RJ45 Magnetic connectors, LAN transformers, Modular Jacks, and RJ11 Connectors.
4. Why should you buy from us and not from other suppliers?
1. Specialized manufacturer of RJ45 connectors and LAN transformers with extensive experience.
2. Certified by SGS, ISO9001:2008, UL, REACH, and CE.
3. High production capacity to handle bulk orders.
4. Strong design capabilities and complete technical support.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
6. Do you support custom solutions (OEM/ODM)?
Yes. We can provide professional complete custom designs and solutions for magnetic components, supported by our technical R&D department to meet your specific project requirements.
