LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

Product Description

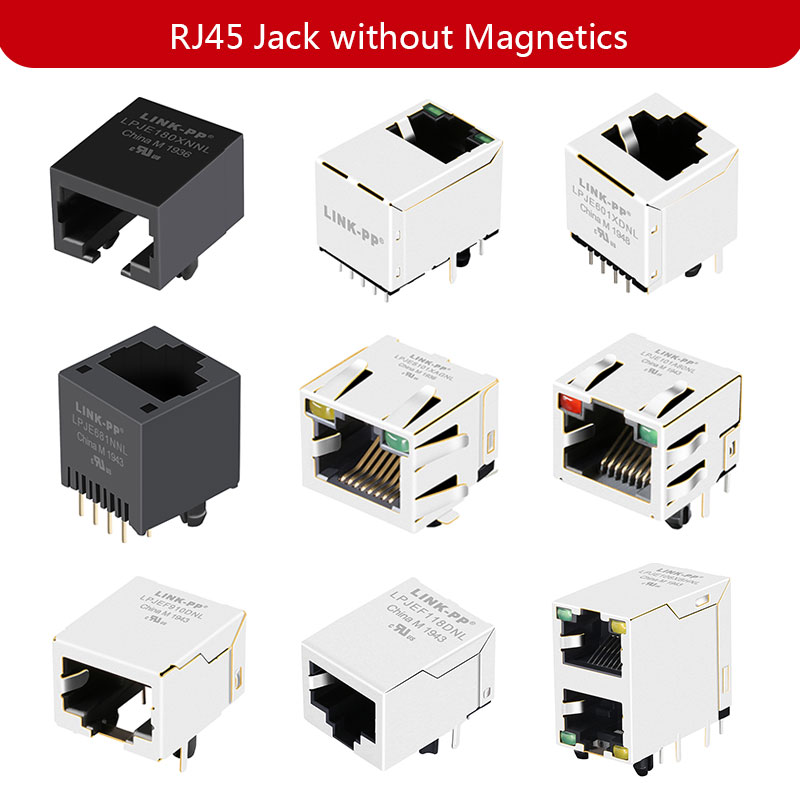

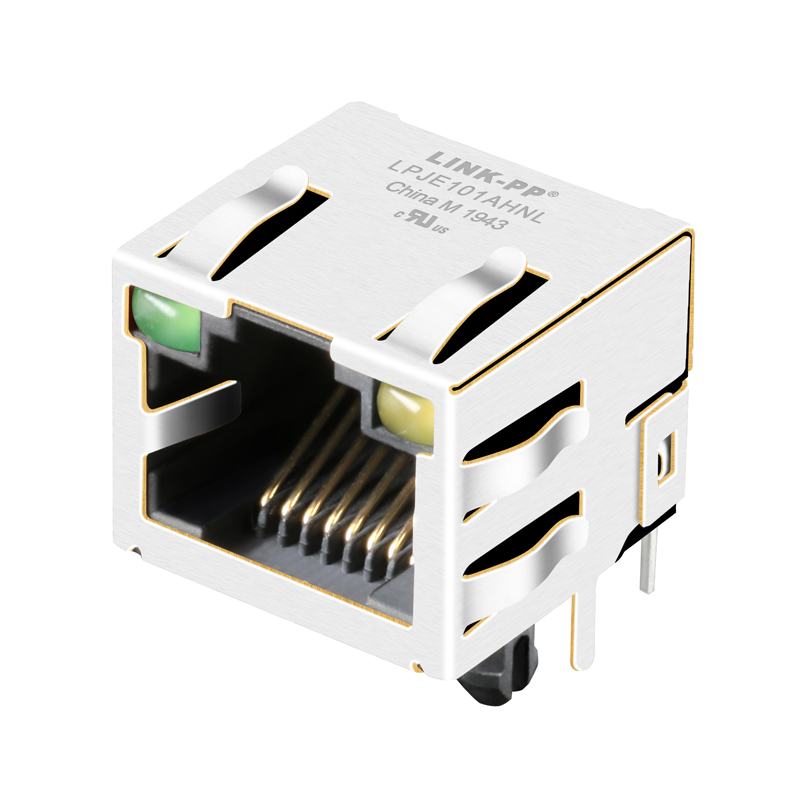

LPJE101AHNL Product Image 1

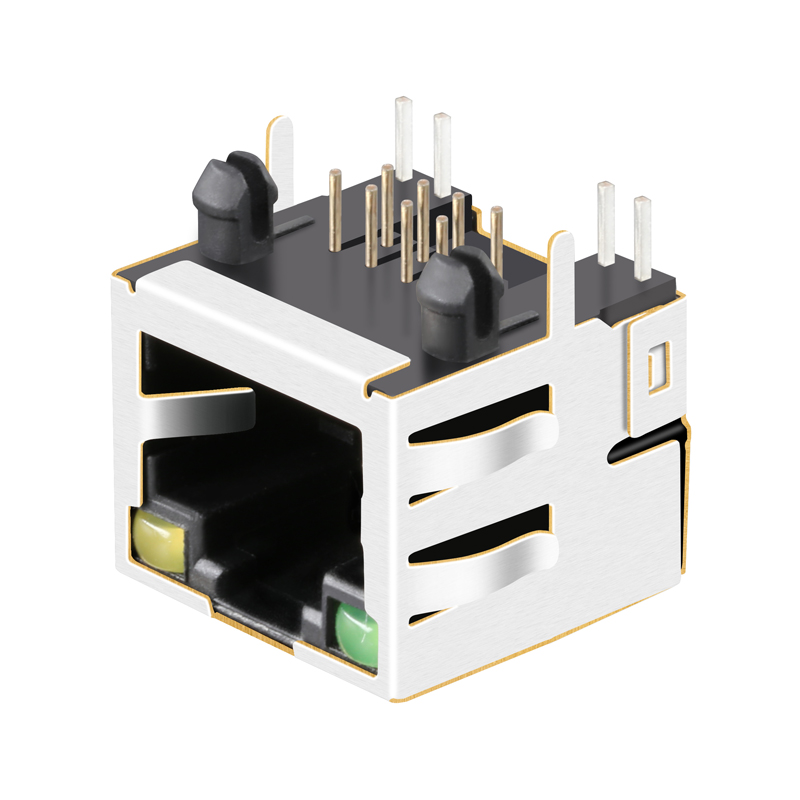

LPJE101AHNL Product Image 2

Specification

Item Value
Model Number LPJE101AHNL
Part Status Active
Connector Type RJ45
Applications Without Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded, EMI Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C

Packing & Delivery

📦 Packaging Details
Package: Tray
Carton Size: 54.5 * 28.5 * 27 cm
G.W./Carton: 13.1 kg
Qty/Carton: 3000 pcs
SPQ: 100 pcs
N.W./Pcs: 0.004 kg
Packing Image

Production Facilities

Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Facility 6

Frequently Asked Questions

What is the application type of the LPJE101AHNL connector?
The LPJE101AHNL is an RJ45 connector designed for applications that do not require magnetics. It is commonly used in various standard network configurations where magnetic components are not needed inside the connector itself.
What is the operating temperature range for this product?
This RJ45 connector supports a wide industrial operating temperature range from -40°C to 85°C, making it suitable for both standard and demanding industrial environments.
Does this connector have built-in LEDs, and what color are they?
Yes, the LPJE101AHNL connector features integrated Yellow and Green LEDs to indicate link status and activity.
What shielding features does the LPJE101AHNL include?
It comes with robust shielding that includes an EMI Finger. This design helps minimize electromagnetic interference and improves connection reliability.
How is this connector packaged, and what is the standard packaging quantity?
The connectors are delivered in trays with a Standard Packaging Quantity (SPQ) of 100 pieces per tray, and 3000 pieces packed per master carton.
What are the mounting and orientation specs?
It uses a Through Hole mounting type with Solder termination. The configuration is a 90° Right Angle orientation with the tab direction facing Up.
