Product Description

Through Hole Networking Plastic RJ45 Modular Jack Banner

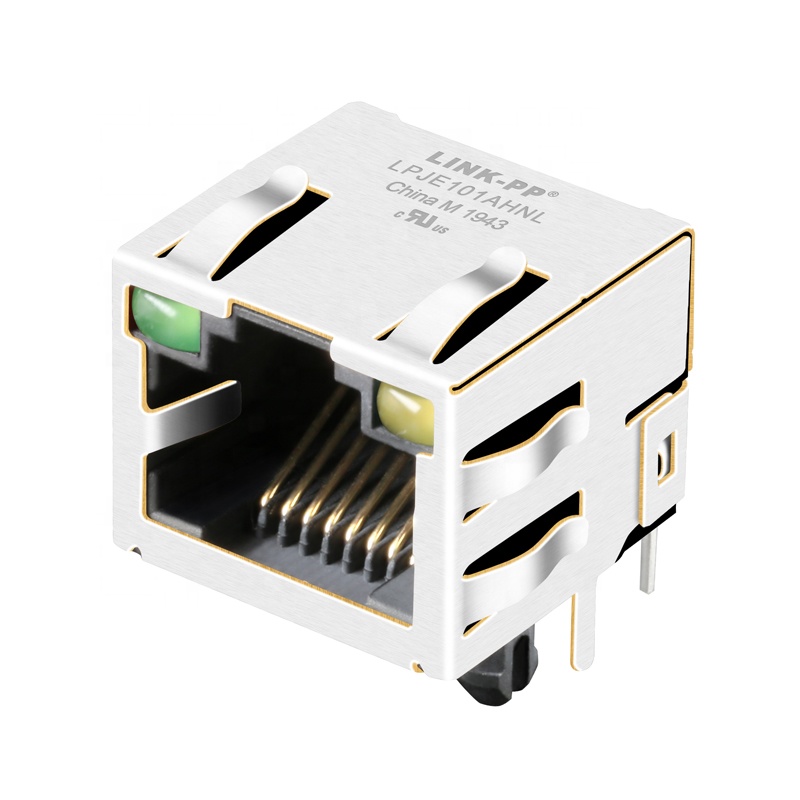

Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4

Technical Specifications
Tyco Part Number	1116173-4
Alternative Part Number	LPJE101AHNL
Application-LAN	ETHERNET (NON POE)
AutomDX	YES
Package Height (Inches/mm)	0.516/13.10
Package Length (Inches/mm)	0.620/15.75
Package Width (Inches/mm)	0.640/16.26
Configuration TX/RX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	-
Diodes	No
Latch	Up
LED Option	Green/Yellow LEDS
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	-
Temperature	-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1
