GE5T3013-LC Tab up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led

Product Description

Ethernet RJ45 Connector Overview
GE5T3013-LC Tab Up 10/100 Base-t SMT Surface Mount Magnetic Ethernet RJ45 Connector With Led
Products Description
Item RJ45 Female Connector
Part Number LPJ19201BGNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Yellow/Green
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

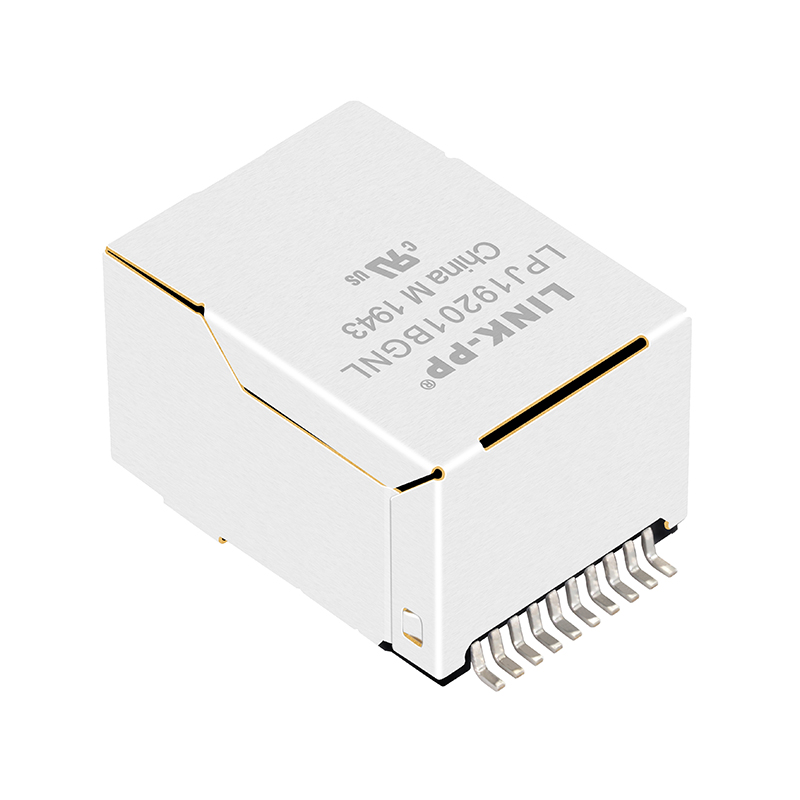

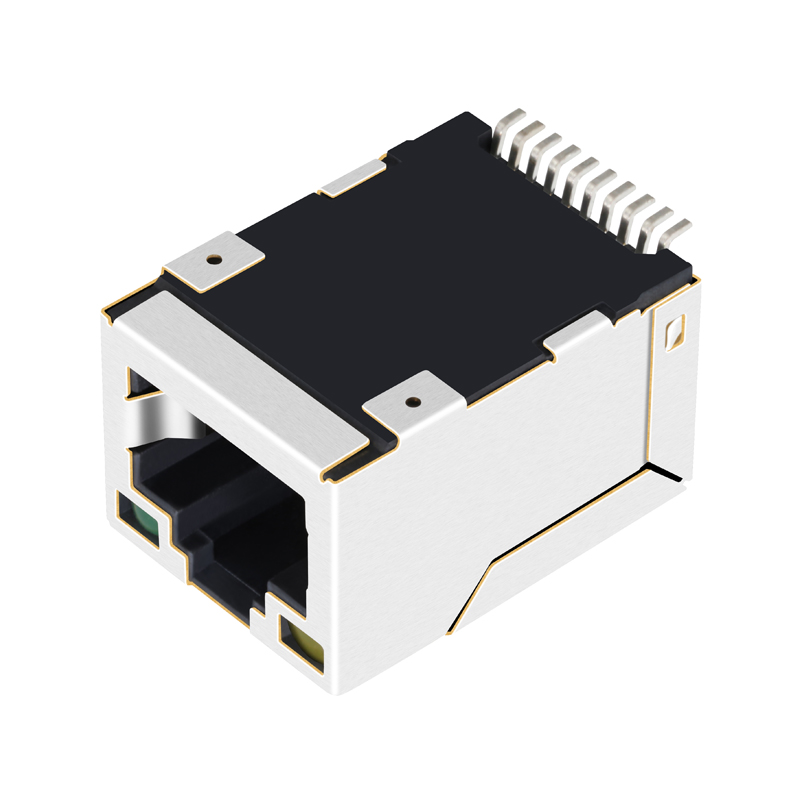

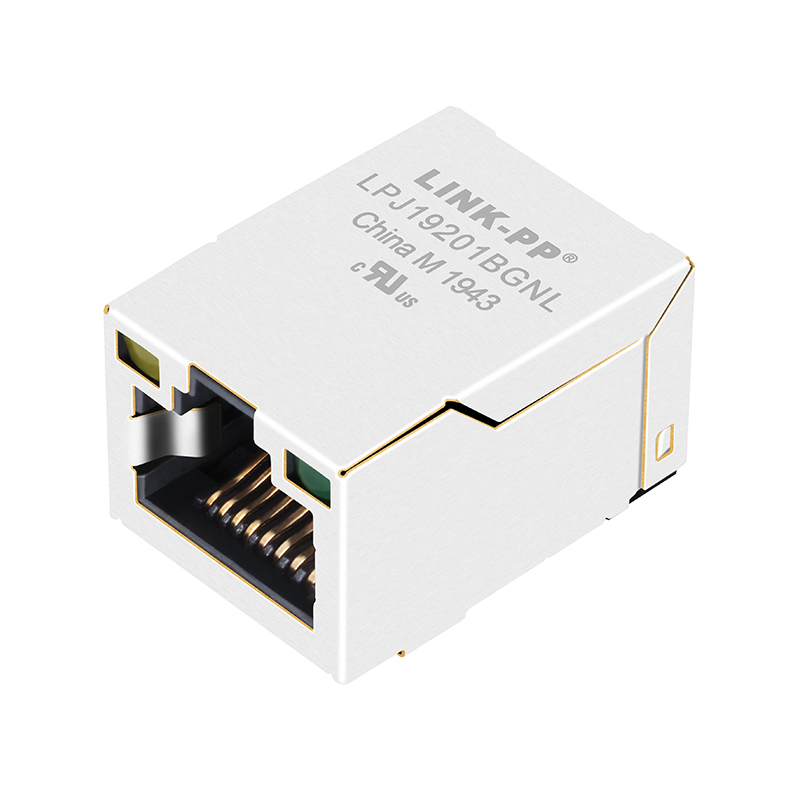

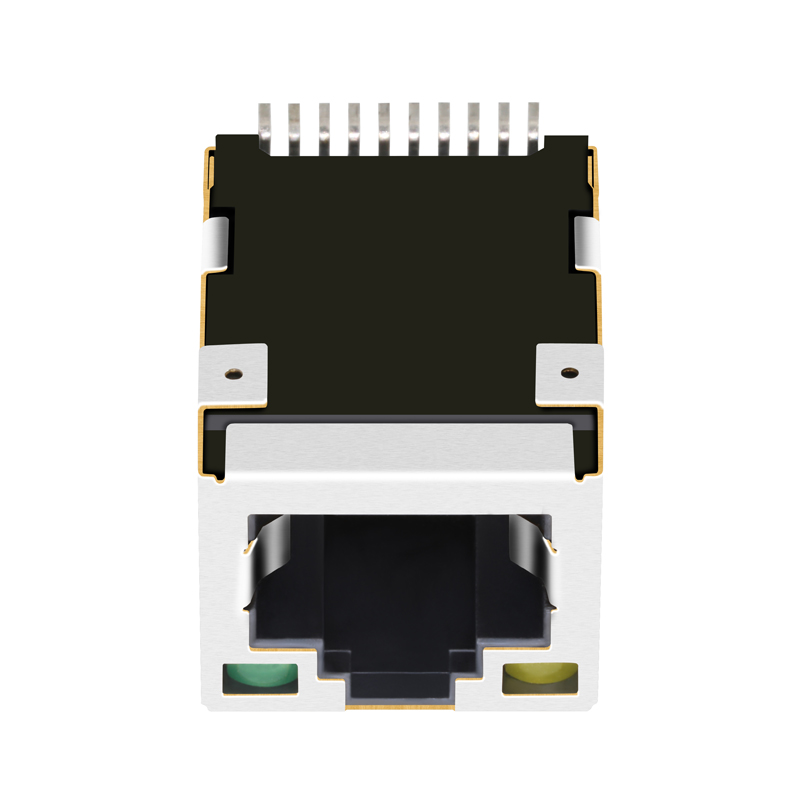

RJ45 Connector Image 1 RJ45 Connector Image 2 RJ45 Connector Image 3 RJ45 Connector Image 4
🛈 Explore Related Products & Configurations Below
Product Options Mapping Diagram Product Selection Table Mechanical Dimensions Circuit Schematic PCB Layout Recommendations Material Specification Sheet Solder Profile Info Packaging Standard Details
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Production Facility Showroom Advanced Testing Laboratory
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you would be responsible for the shipping fee.
What is your typical delivery time?
Items currently in stock are ready to ship immediately, while standard mass production orders typically take 15 to 30 days.
What after-sales service do you provide?
We offer a one-year guarantee period along with 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we accept OEM/ODM customization requests. Please send us your detailed inquiry to initiate discussions.
What is your primary manufacturing advantage?
We possess over 19 years of design and production experience and serve as a reliable, long-term industry partner for global manufacturing leaders.
