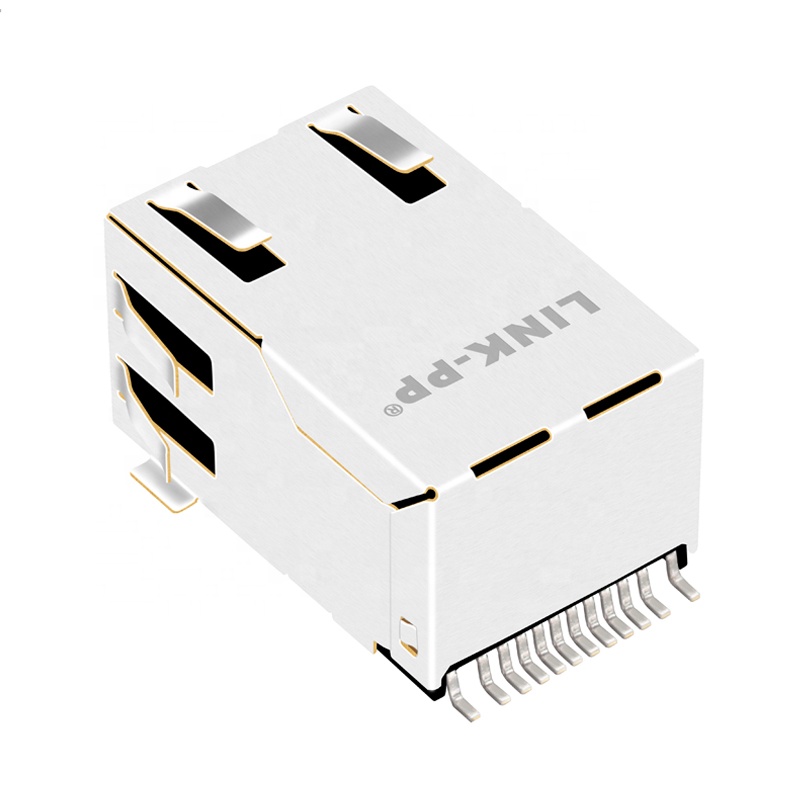

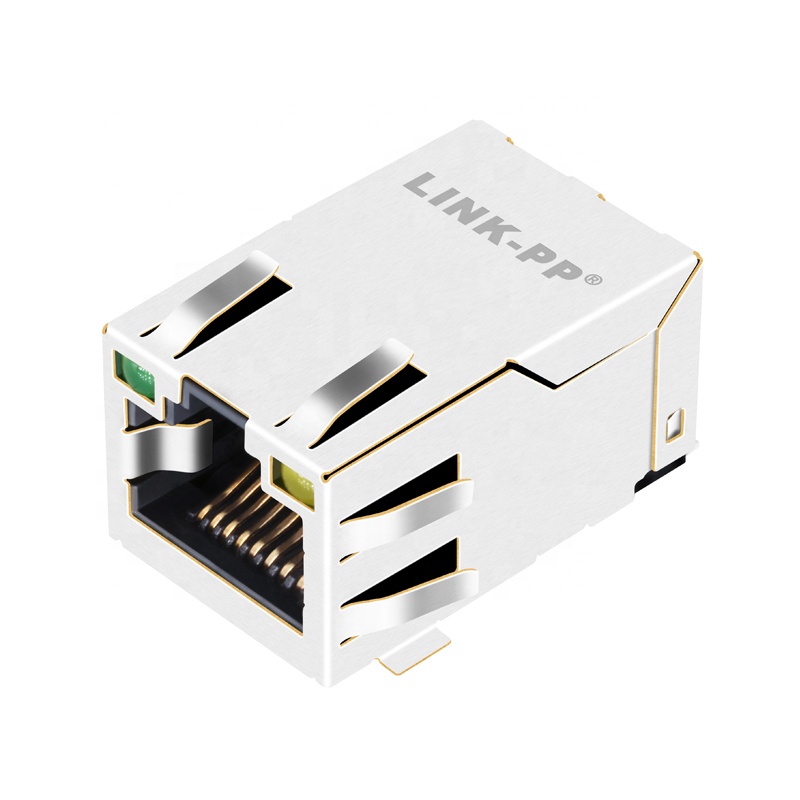

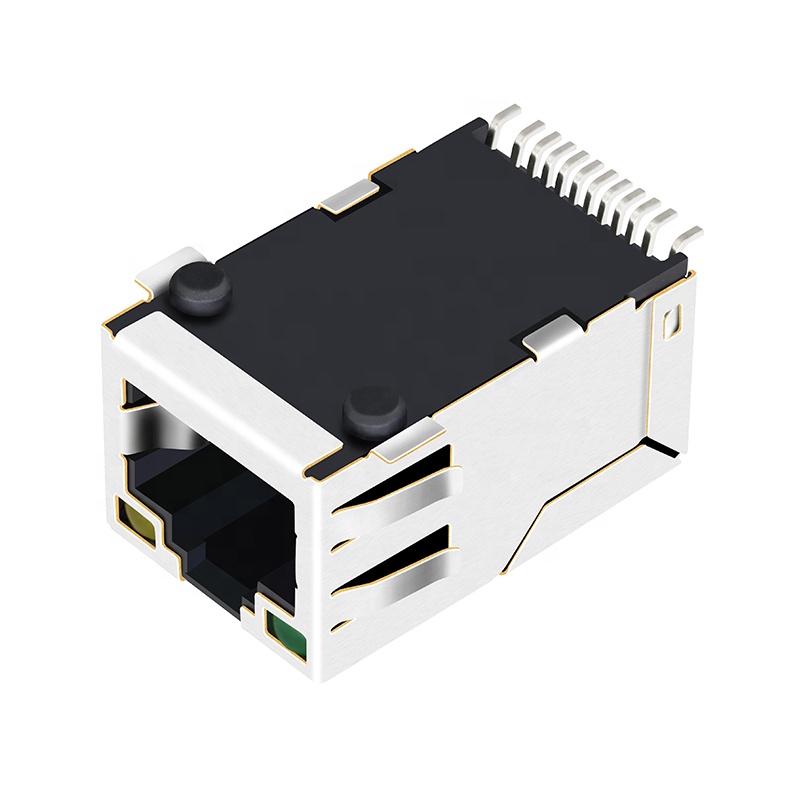

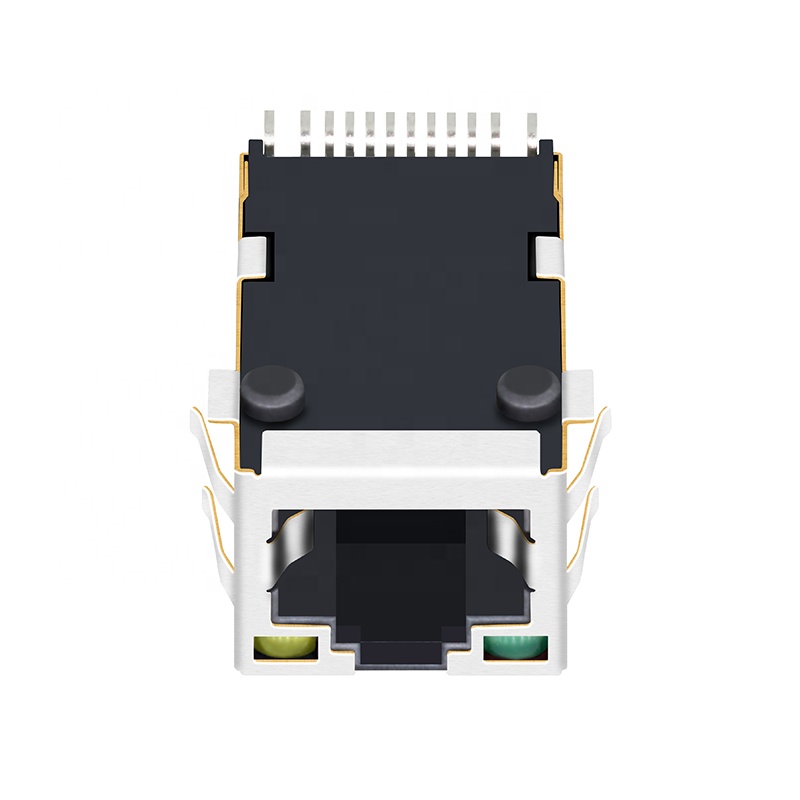

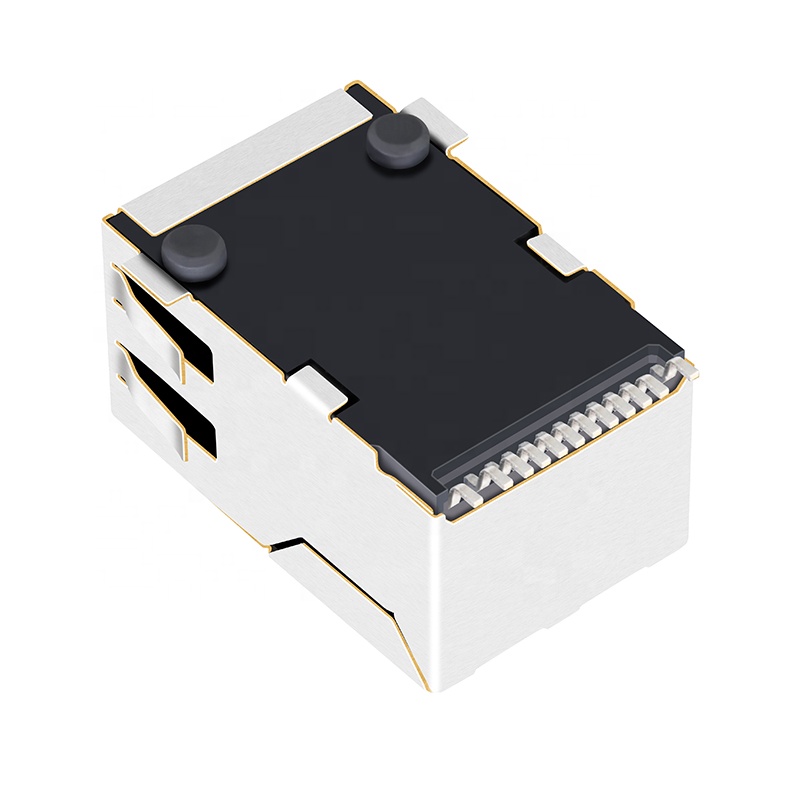

Tab up Surface Mount RJ45 Magjack SMT RJ45 Female Connector

Product Description

Modular Jack Components
8-Pin Cat7 RJ45 Modular Jack With Hot Products
Products Description
Item RJ45 Female Connector
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Feature 1 Product Feature 2
Product Application 1 Product Application 2
Product Application 3 Product Application 4

Explore Our Range of Featured Networking and Telecom Connectors Below

Product Portfolio Grid
Technical Specifications 1 Technical Specifications 2 Technical Specifications 3
Technical Specifications 4 Technical Specifications 5 Technical Specifications 6
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Manufacturing Facility Quality Testing Office
FAQ

1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production?

Yes, we can offer free samples to test the quality, with shipping costs covered by the buyer.

3. What is your delivery time?

We offer ready-to-ship options for items in stock, and 15-30 days for standard mass production orders.

4. What after-service support do you offer?

We provide a one-year warranty period and offer 24-hour online technical support.

5. Can you accept OEM/ODM orders?

Yes, please send your requirements to us so that we can have a detailed discussion on custom specifications.

6. What is your manufacturing advantage?

With over 19 years of dedicated production experience, we have established long-term manufacturing partnerships with major global technology leaders.
