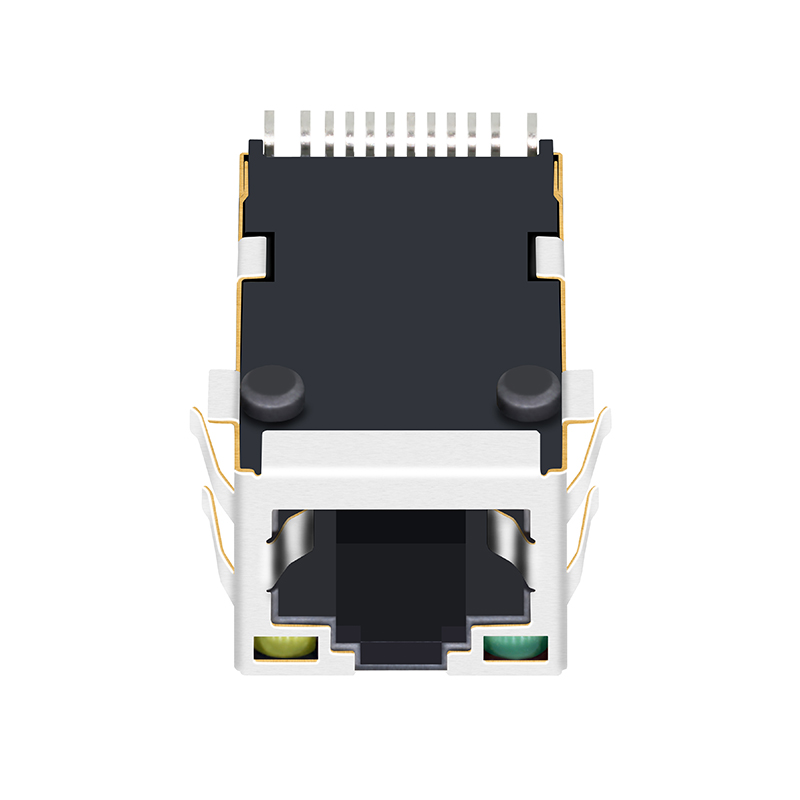

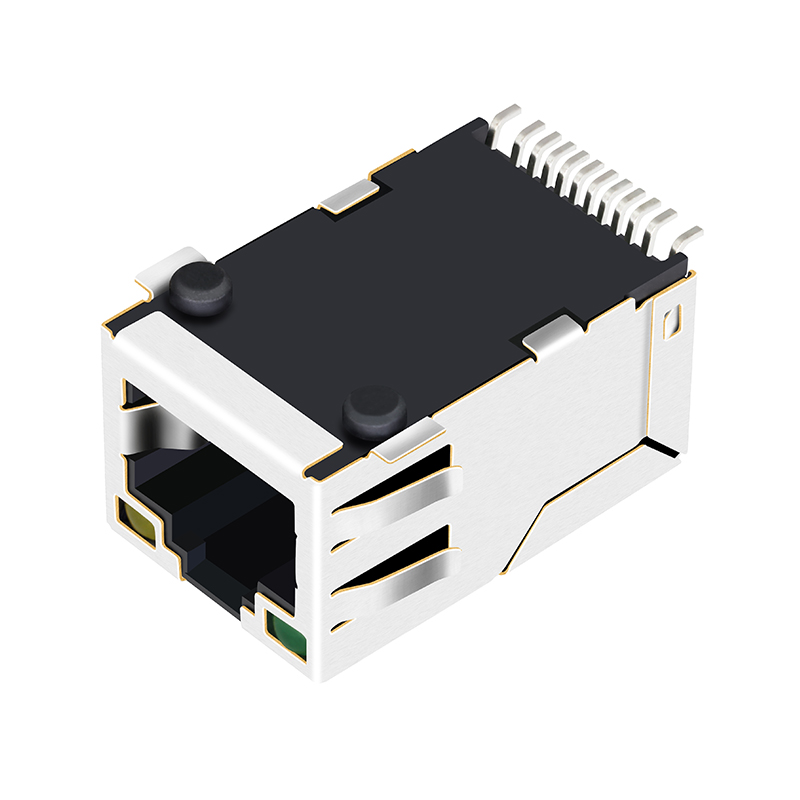

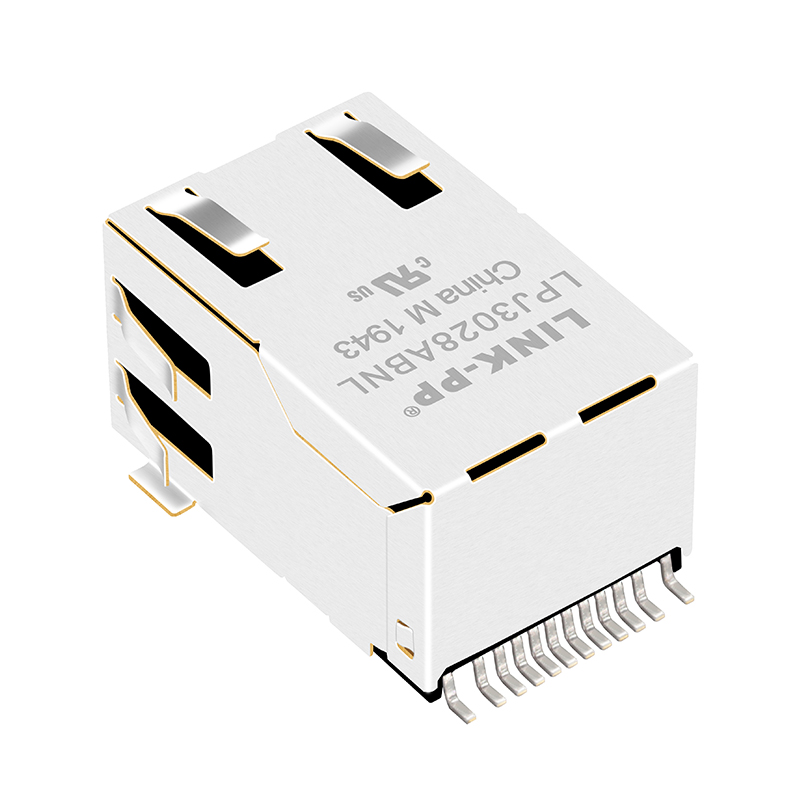

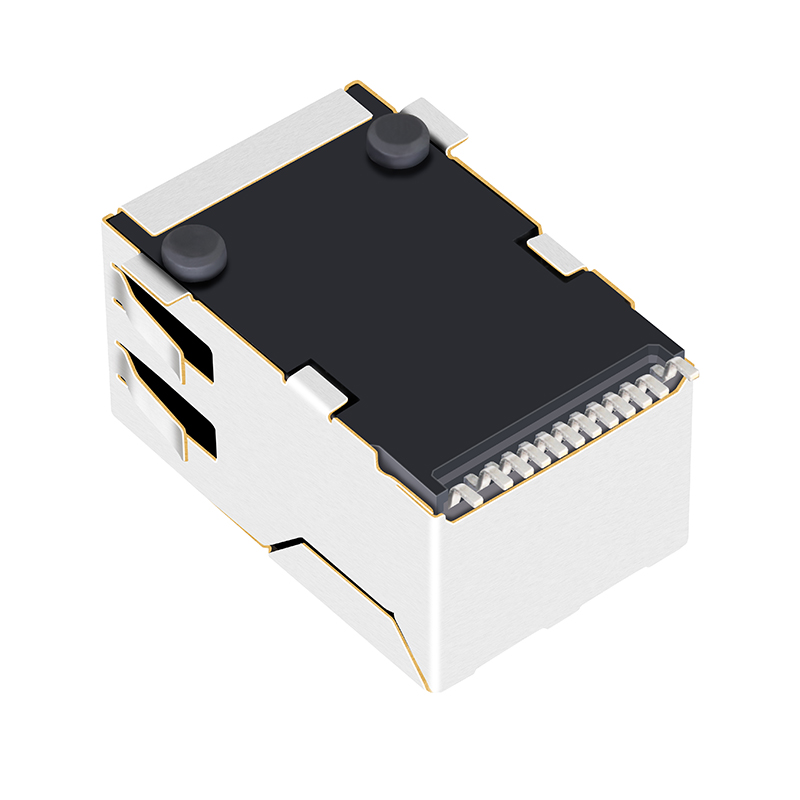

RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
1 / 5
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot

RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot

Send Inquiry

Product Description

RJ45 Connector Female HR961160C RJ45 Connectors With Shield Boot
RJ45 Connector Female
Products Description
Item RJ45 Female Connector
Bothhand Part Number HR961160C
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Detail 1 RJ45 Connector Detail 2
RJ45 Production View 1 RJ45 Production View 2 RJ45 Production View 3 RJ45 Production View 4
❖ Click Below Products Link To Get More ❖
Product Categories
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Technical Drawing 4 Technical Drawing 5 Technical Drawing 6
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Factory Facility 1 Factory Facility 2
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should cover the shipping fee.
What is your delivery time?
Products in stock are ready to ship immediately, while mass production typically takes 15-30 days.
What after-sales service can you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion about your specific requirements.
What is your advantage?
We have over 19 years of professional production experience and have been a trusted partner for global industry leaders for many years.
