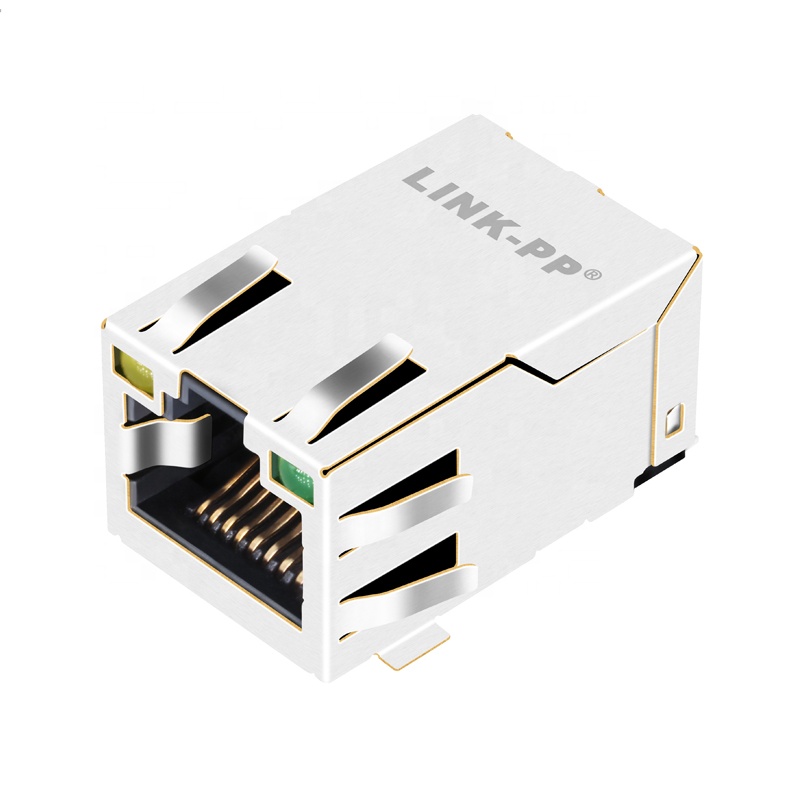

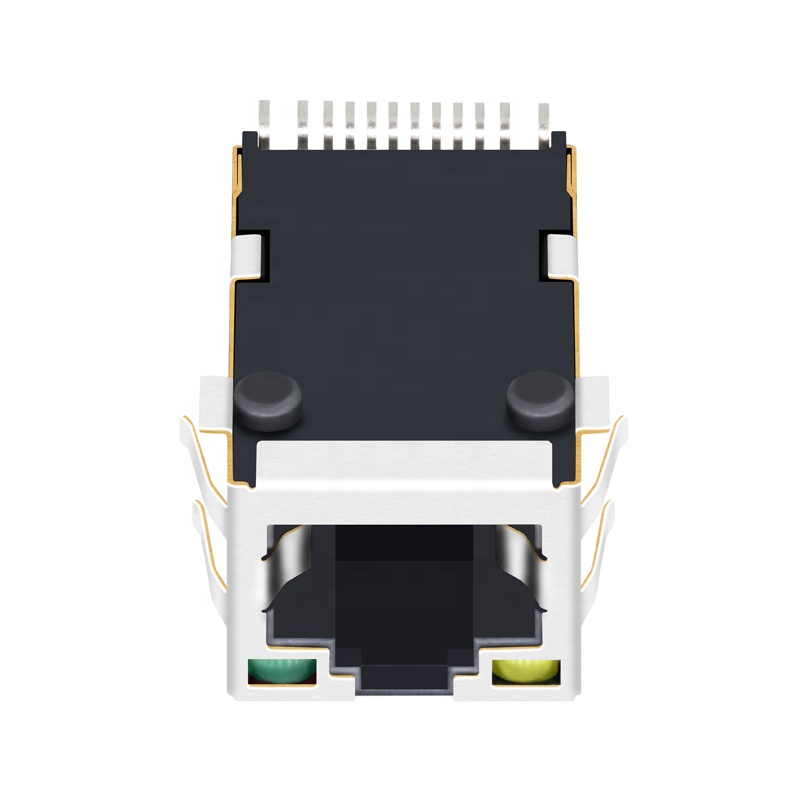

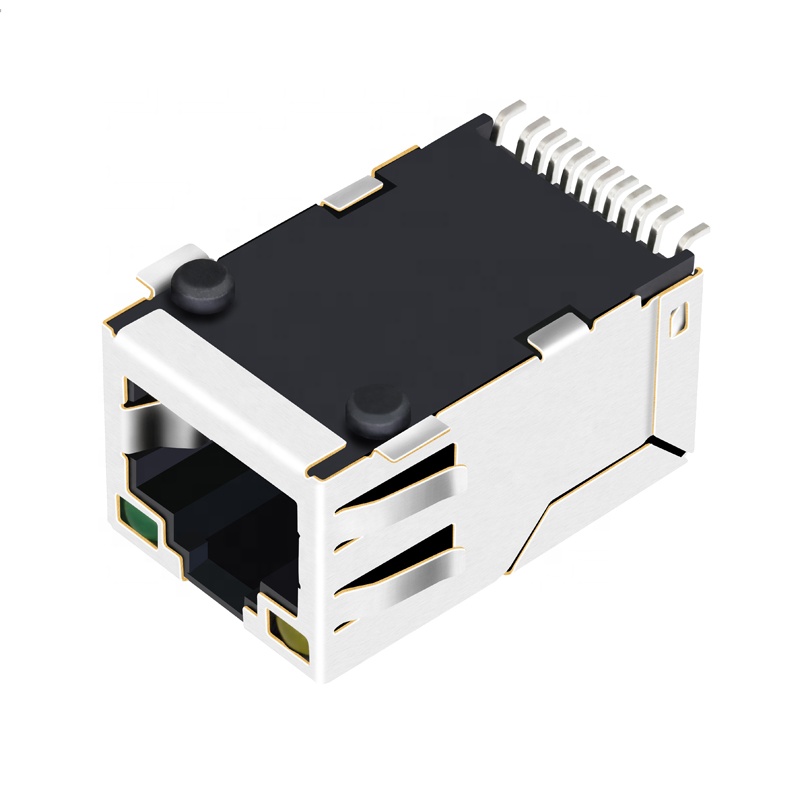

74980111211 Shielded 100 Base-T SMT RJ45 Modular Jack With Magnetics

Shielded 100 Base-T SMT RJ45 Modular Jack with Magnetics Banner

📋 Technical Specifications

Item	RJ45 Female Connector
Part Number	LPJ3007AANL
Compatible With	74980111211
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet (Non-PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch	Down/Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without/With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit	Yes
AutoMDIX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T, C

🔍 Product Categories & Variations

🏭 Production Workshop & Quality Control

❓ Frequently Asked Questions

Q Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Q Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, with the shipping cost covered by the buyer.

Q What is your delivery time?

Items in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.

Q What after-sales service do you offer?

We provide a one-year guarantee period along with 24-hour online technical support.

Q Do you accept OEM/ODM orders?

Yes, we accept both OEM and ODM orders. Please contact us with your specifications so we can discuss the details.

Q What is your primary advantage?

We bring over 19 years of professional production experience and have been a trusted partner for leading global technology brands for many years.

Product Detail

74980111211 Shielded 100 Base-T SMT RJ45 Modular Jack With Magnetics

Product Description
