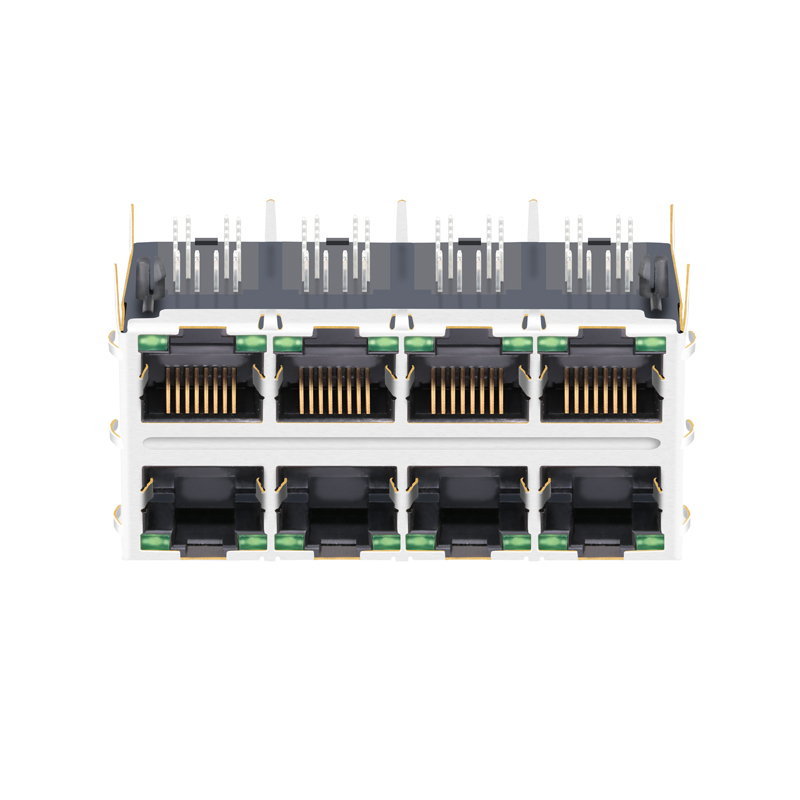

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

1 / 5

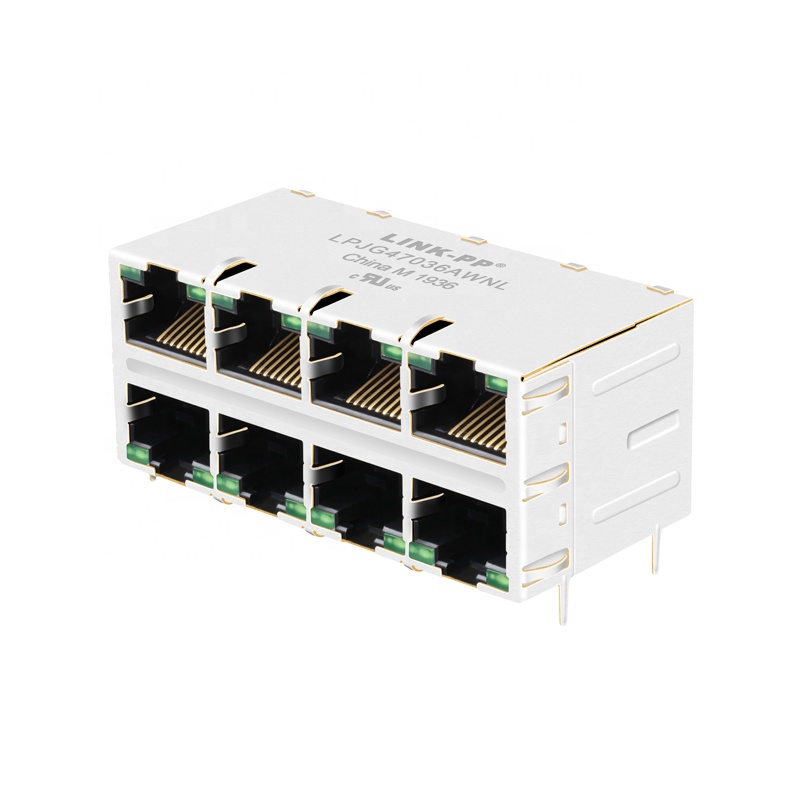

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Send Inquiry

Product Description

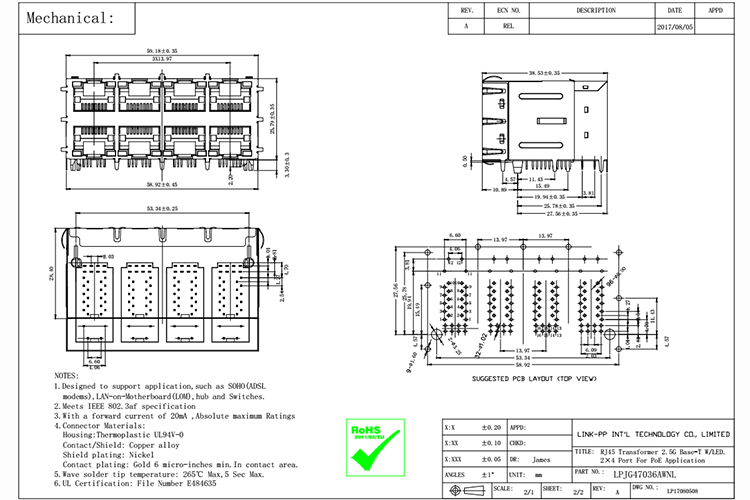

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector Angle View

RJ45 Female Electrical Connectors Banner

Part Number	LPJG47036AWNL
Application-LAN	ETHERNET(POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	GREEN/GREEN
Latch	UP/DOWN
Number of Ports	2X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Shielding	Shielded
Speed	2.5G BASE-T
Temperature	-20~+70℃
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector Specification Sheet

RJ45 Connector Manufacturing Process Visual

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Guarantee Quality

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
Quality Guarantee: 6 Years

Competitive Price And Service

More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
90% Off Shipping Cost By DHL UPS FEDEX Or TNT

Tab Down 8 Pin Jack RJ45 Female Electrical Connectors Banner

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Frequently Asked Questions

Q1: What speed rating does this 2x4 port RJ45 connector support?

A1: This RJ45 female connector supports high-speed data transfer rates up to 2.5G BASE-T, rendering it ideal for modern high-performance network applications.

Q2: Can this RJ45 connector be used in Power over Ethernet (PoE) applications?

A2: Yes, the connector is explicitly designed and rated for Ethernet (PoE) LAN applications, allowing combined power and data transmission.

Q3: What are the shielding specifications of the LPJG47036AWNL connector?

A3: The connector is fully shielded and comes equipped with EMI tabs to ensure excellent protection against signal interference.

Q4: What is the operating temperature range for this component?

A4: The connector is designed to operate reliably within a standard temperature range of -20°C to +70°C.

Q5: Is this product compliant with environmental standards?

A5: Yes, the connector is RoHS compliant, certified under RoHS-5 guidelines with lead in solder exemption.

Q6: What mounting and pin technology does this connector use?

A6: It features a side-entry PCB mounting angle, a T-post retaining design, and THT (Through-Hole Technology) solder pin configurations.
