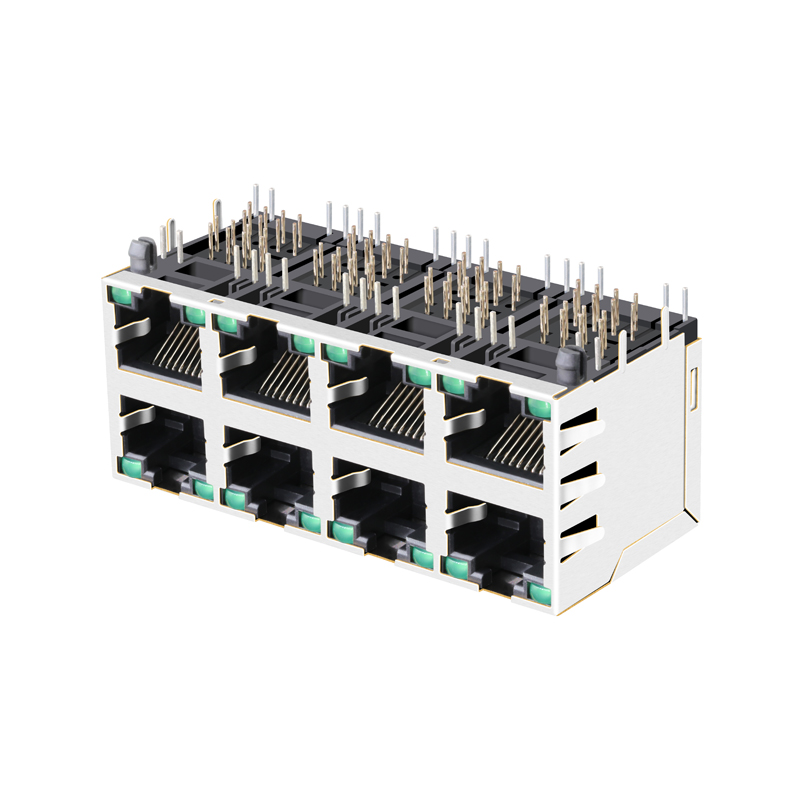

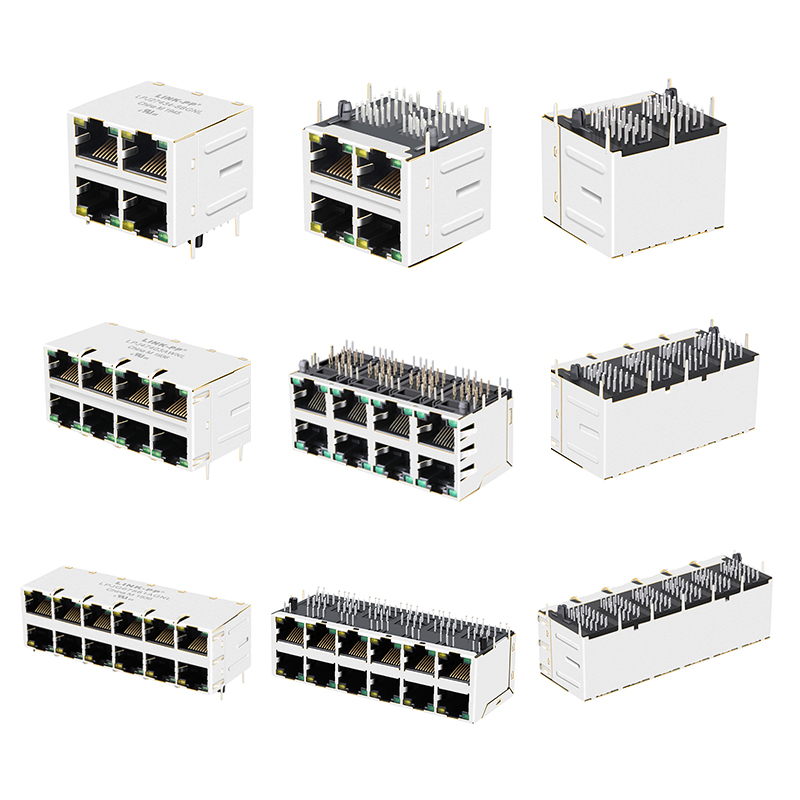

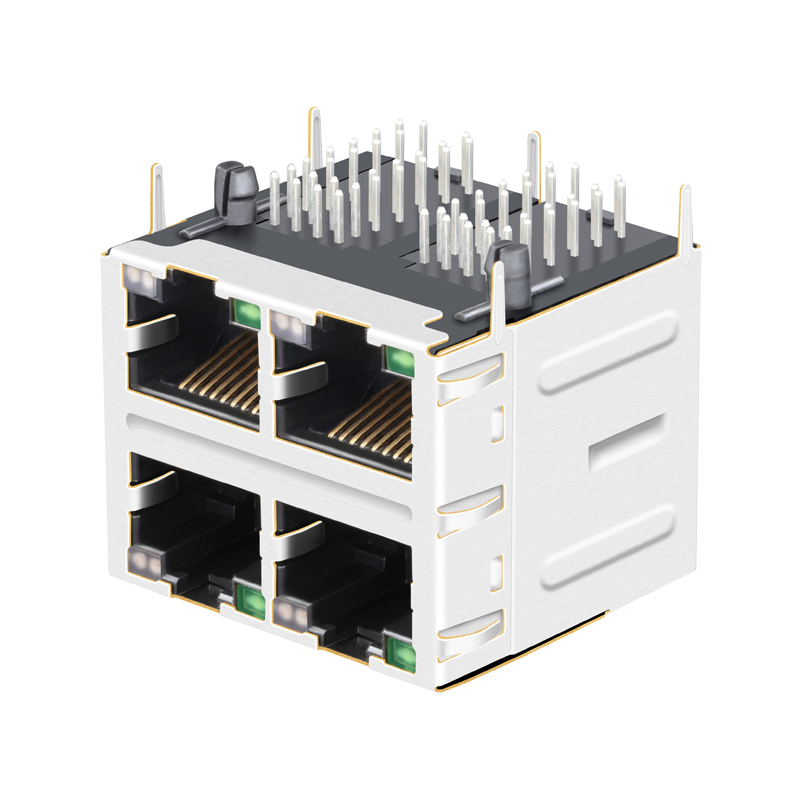

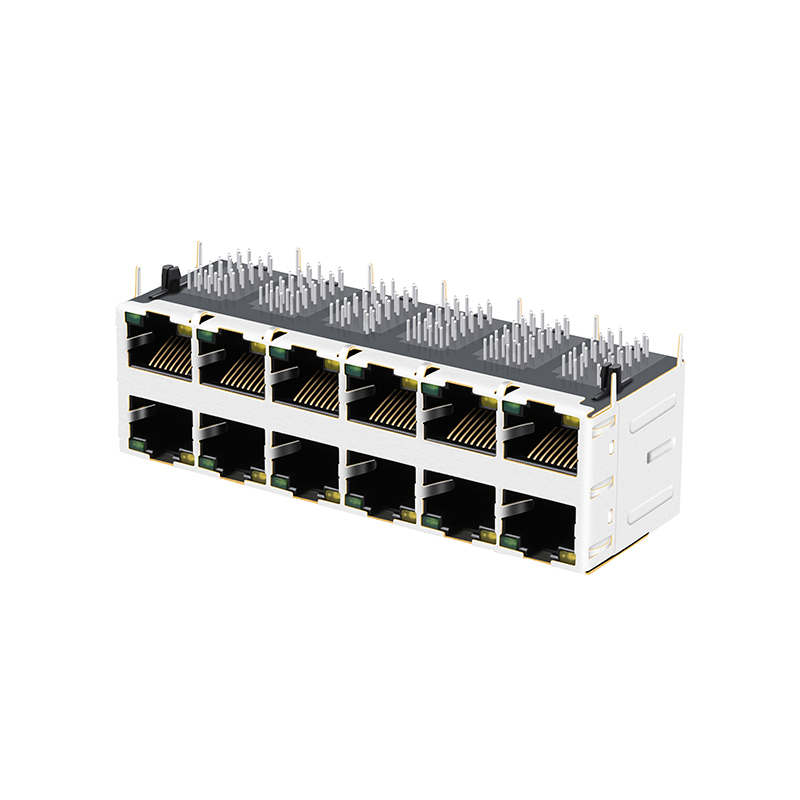

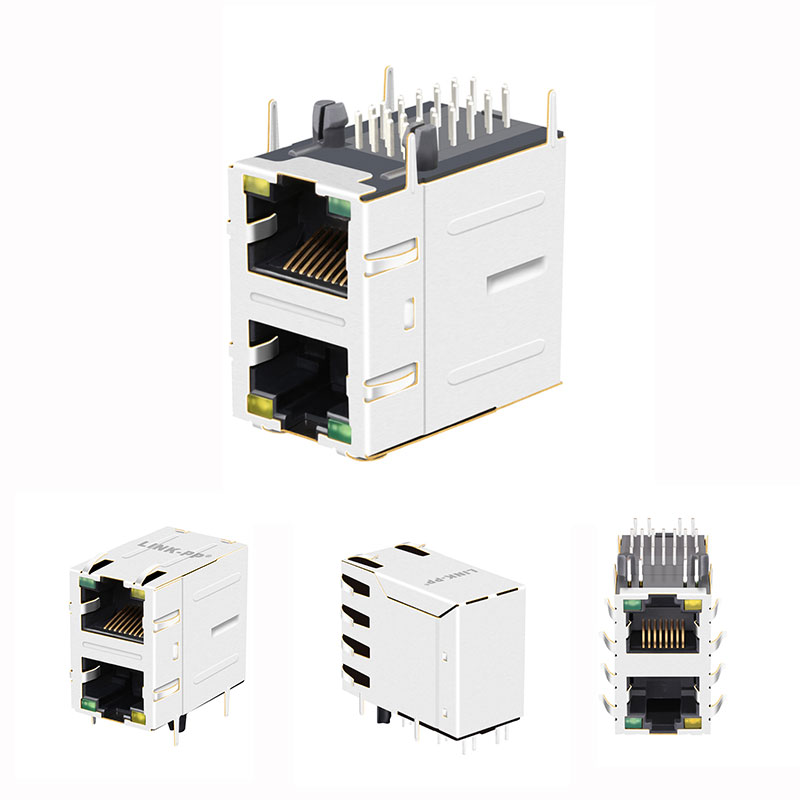

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
1 / 5
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

Send Inquiry

Product Description

Product Description

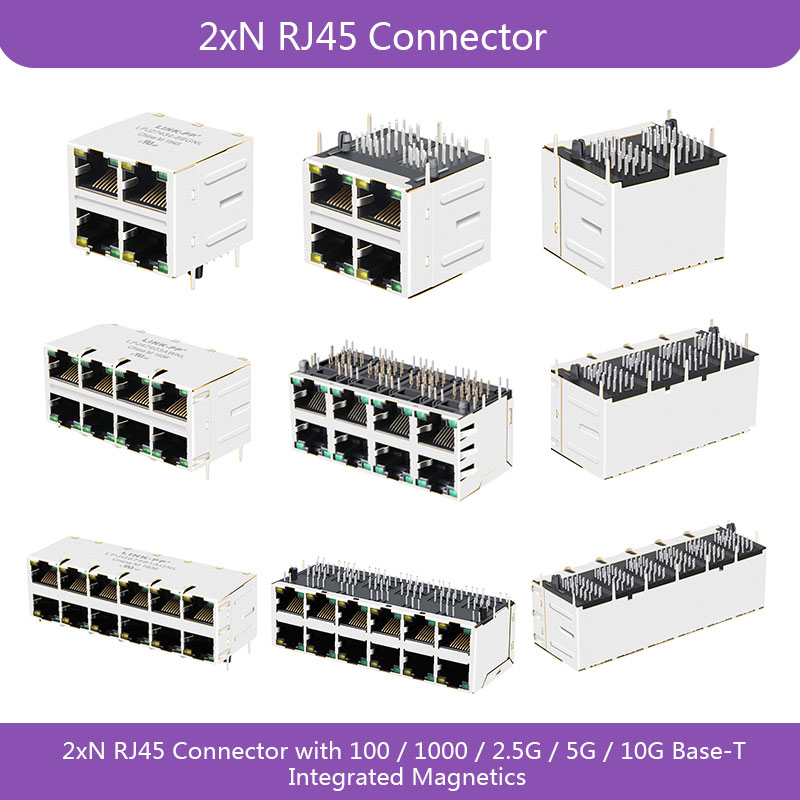

RJ45 Connector
Characteristics
  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Specification
Model Number RJ45 Filtered Connectors
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet (PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger
Number of Ports 2x1 2x2 2x4 2x6 2x8 Port
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T, C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
Package Type: Tray
Carton Size: 32 * 30 * 31 cm
Gross Weight (G.W.): 8.5 kg / carton
Quantity (Qty/carton): 1200 pcs
Standard Packing Quantity (SPQ): 50 pcs
Net Weight (N.W.): 0.007 kg / pcs
Packing Image
Production & Product Gallery
Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4 Gallery Image 5 Gallery Image 6 Gallery Image 7
FAQ
What components and products do you specialize in?
We specialize in manufacturing and supplying high-performance RJ45 Magnetic Connectors, Lan Transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
How is the quality of your products guaranteed?
We maintain strict quality control standards, starting with a pre-production sample evaluation prior to mass production, followed by a rigorous final inspection before shipment.
What standard certifications do your products comply with?
Our factory operations and product lines are certified and compliant with internationally recognized standards including SGS, ISO9001:2008, UL, REACH, and CE.
What delivery terms are accepted?
We offer flexible delivery options to accommodate different supply chain needs, including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES.
Which payment currencies and payment types are accepted?
We support payments in multiple currencies including USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF. Accepted payment formats include T/T, L/C, D/P, D/A, MoneyGram, Credit Cards, PayPal, Western Union, and Cash.
Can you provide product options supporting higher speeds and power loads?
Yes, our RJ45 Connectors support speeds up to 10 Gbit/s and are equipped for Power over Ethernet (PoE) up to 50 Watts, compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt standards.
