Product Description

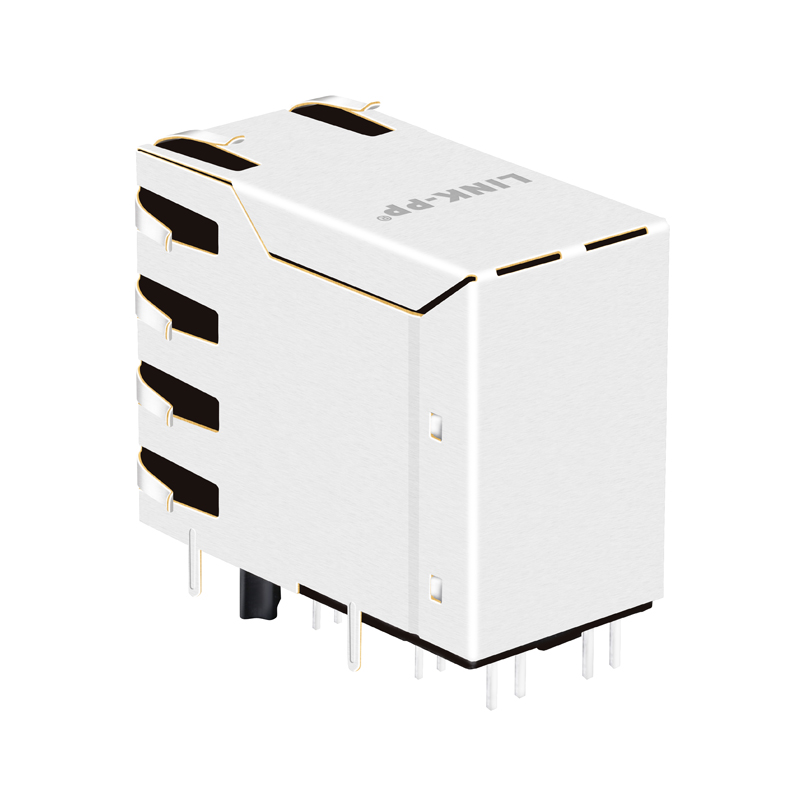

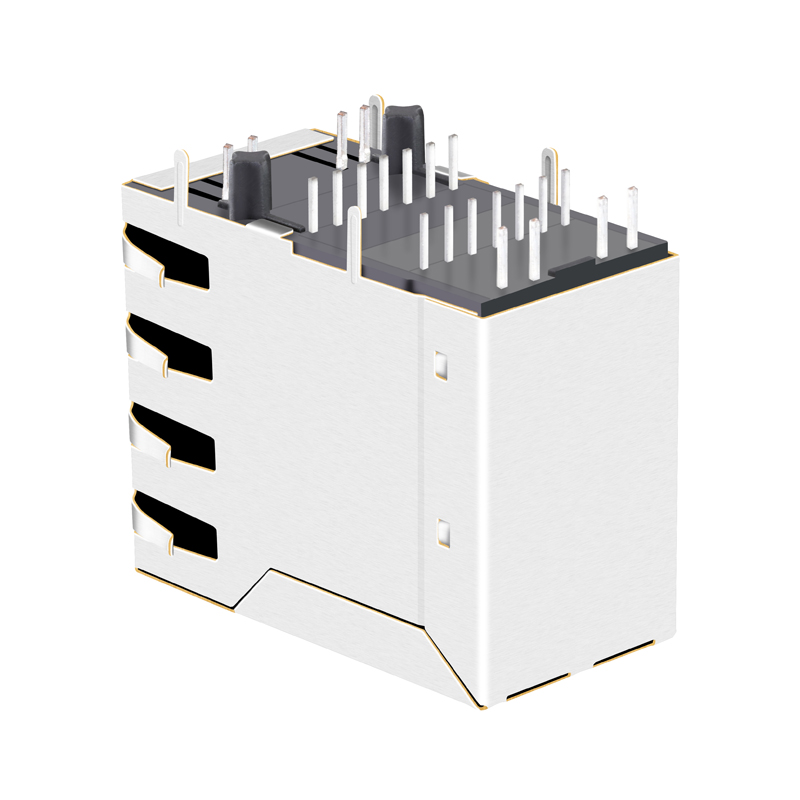

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics, Without LED, Tab Down/Up, RoHS
Part Number	LPJ17202CNL
Equivalent Part Number	MIC24A10-0101W-LF3 / 7499051002
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	NO
Diodes	NO DIODES
LED Option	Without
Latch	TAB DOWN / Up
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With
Speed	10/100 Base-T
Temperature	-40 TO 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Guarantee Quality

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
OEM Of TE (Tyco) For 9 Years
Successful Customer: Texas Instruments, Samsung, Cisco, Siemens, And Intel...
Preferred Supplier Of TI (Texas Instruments)
Quality Guarantee: 6 Years

Competitive Price And Service

More Competitive Price Than Pulse, Tyco, Halo, Wurth, And Amphenol
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
90% Off Shipping Cost By DHL, UPS, FEDEX Or TNT

Corporate Policy

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
Committed To And Expects Quality Performance From Every Employee
The Company Standard Is Defect-Free Products And Services

• Preferred Supplier Of TI Samsung Cisco Siemens ...

Welcome To Visit The TI Website://www.ti.com/tool/beaglebk#0

You Will Look At Our Logo On BeagleBone Board

Frequently Asked Questions (FAQ)

What are the main application fields for this 2x1 Port Shielded RJ45 Modular Jack?

This connector is primarily designed for standard Ethernet (Non-PoE) networking applications, providing stable 10/100 Base-T transmission speeds in commercial and industrial hardware.

Does this modular jack support Power over Ethernet (PoE)?

No, this specific model (equivalent to LPJ17202CNL / 7499051002) is configured strictly for ETHERNET (Non-PoE) setups.

What is the operating temperature range of this product?

It is designed to withstand harsh environments with a wide industrial operating temperature range from -40°C to +85°C.

Is the connector shielded against EMI/RFI interference?

Yes, it features a robust shield structure with EMI tabs, ensuring reliable connection signals by shielding external electromagnetic and radio frequency noise.

Can I get equivalent performance for other top brand parts?

Yes, this product is fully compatible and cross-referenced with major market options like MIC24A10-0101W-LF3 and 7499051002, matching identical dimensional and electrical standards.

What certifications does this RJ45 connector comply with?

The manufacturing process complies with ISO 9001:2008 standards, and the product is UL certified, Reach certified, and RoHS compliant.
