| Part Number |
RJ45 connector |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
8 |
| Diodes |
NO DIODES |
| LED Option |
WITH LEDS |
| Latch |
Up/Down |
| Number of Ports |
2x8 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
Shield, EMI Finger |
| Speed |
10/100/1000 Base-T |
| Temperature |
-40°C ~ 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
Competitive Price And Service
- Highly competitive pricing in the market
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- Highly discounted shipping rates

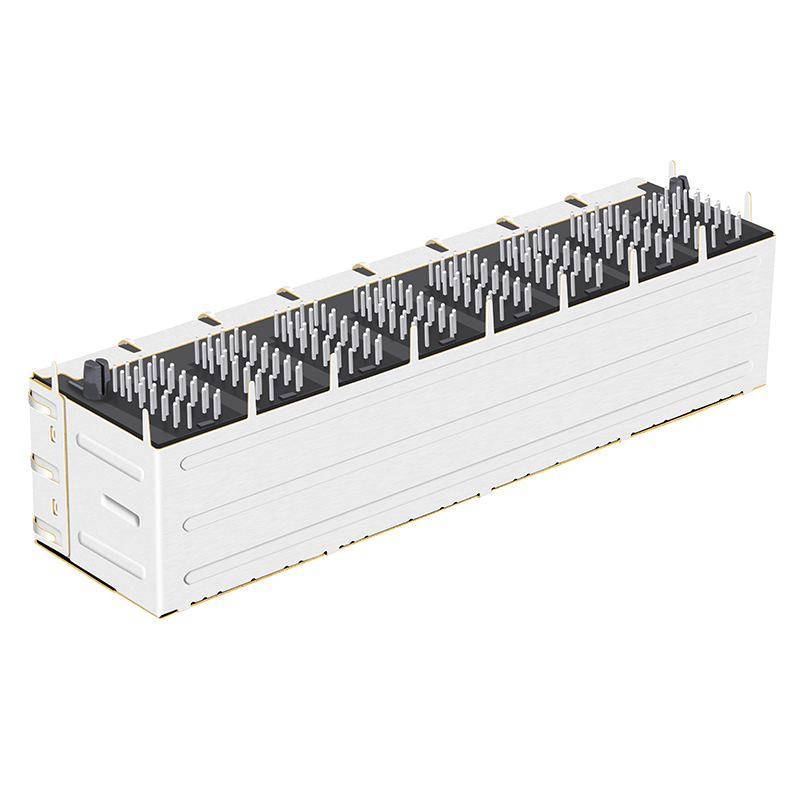

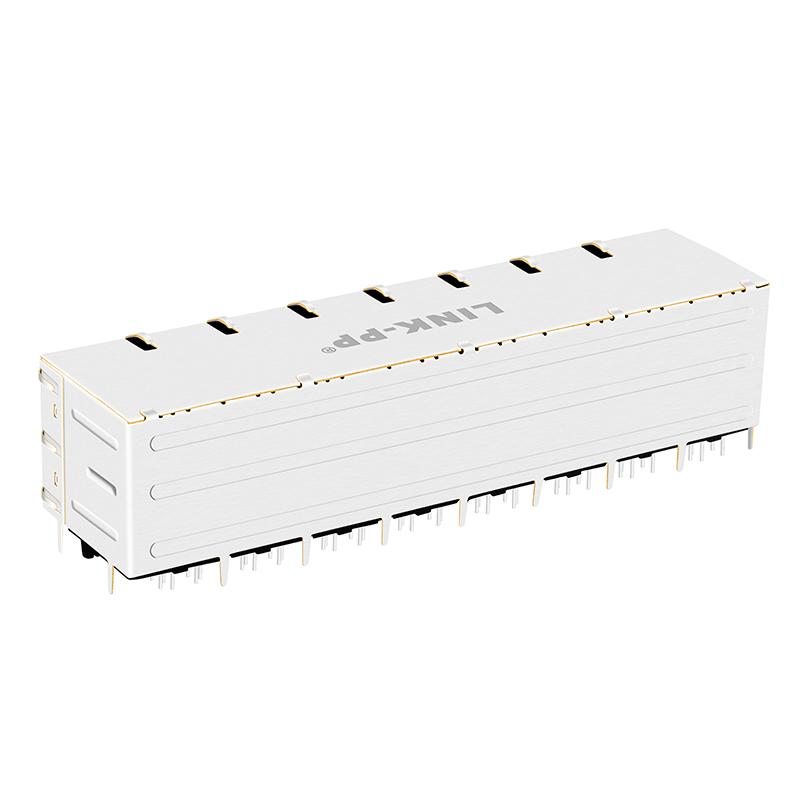

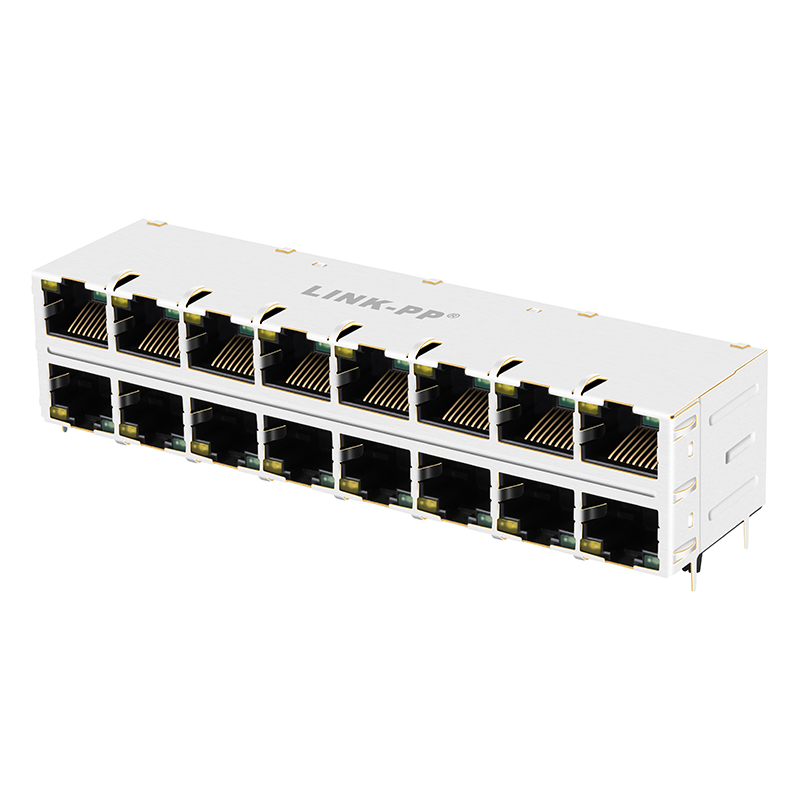

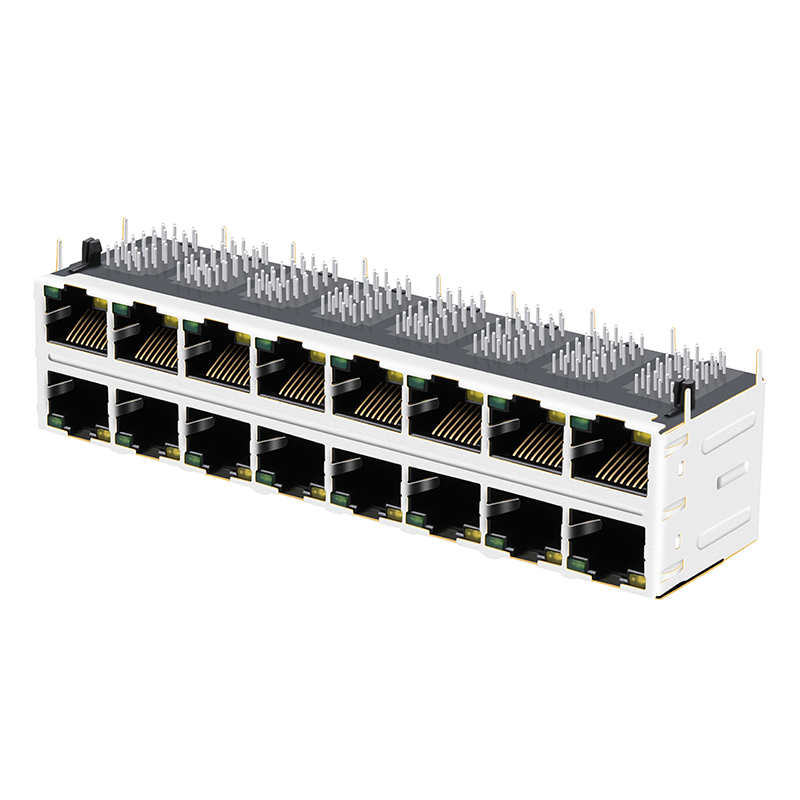

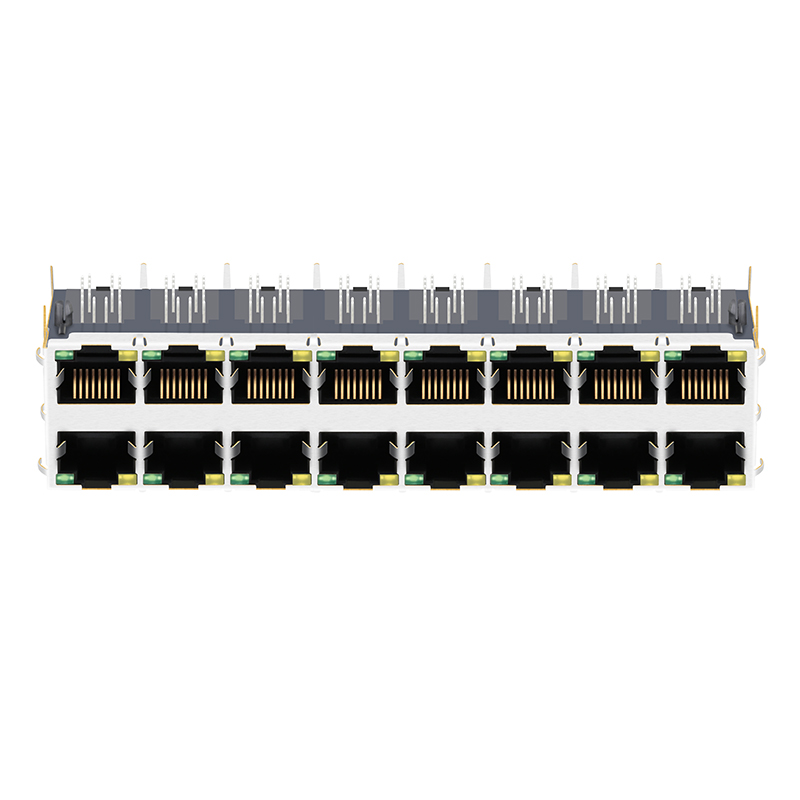

2 * 8 Port RJ 45 Jack , Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69
Frequently Asked Questions
What is the configuration and number of ports for this RJ45 connector?
This connector features a 2x8 port configuration, which provides a total of 16 ports in a shielded RJ45 jack housing.
Does this 16-port RJ45 connector support Power over Ethernet (PoE)?
No, this connector is designed specifically for standard non-PoE Ethernet applications.
What transmission speeds does this RJ45 jack support?
It supports 10/100/1000 Base-T Gigabit Ethernet speeds, making it suitable for high-speed network connections.
What is the operating temperature range for this component?
This connector is built to perform in industrial conditions with an operating temperature range from -40°C up to 85°C.
What are the contact mating area plating options and specifications?
The contact mating area is plated with gold, available in options of 6u", 15u", or 30u" to ensure excellent conductivity and long-term durability.
Is this 2x8 RJ45 Jack compliant with environmental standards?
Yes, the connector is RoHS compliant (specifically RoHS-5 with lead in solder exemption) and aligns with active environmental policy requirements.
