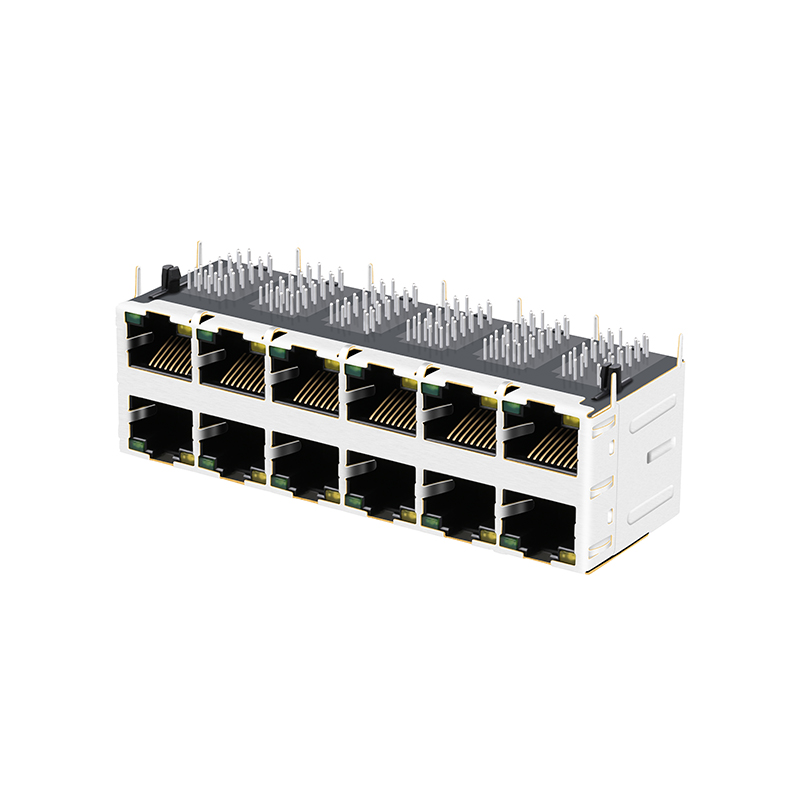

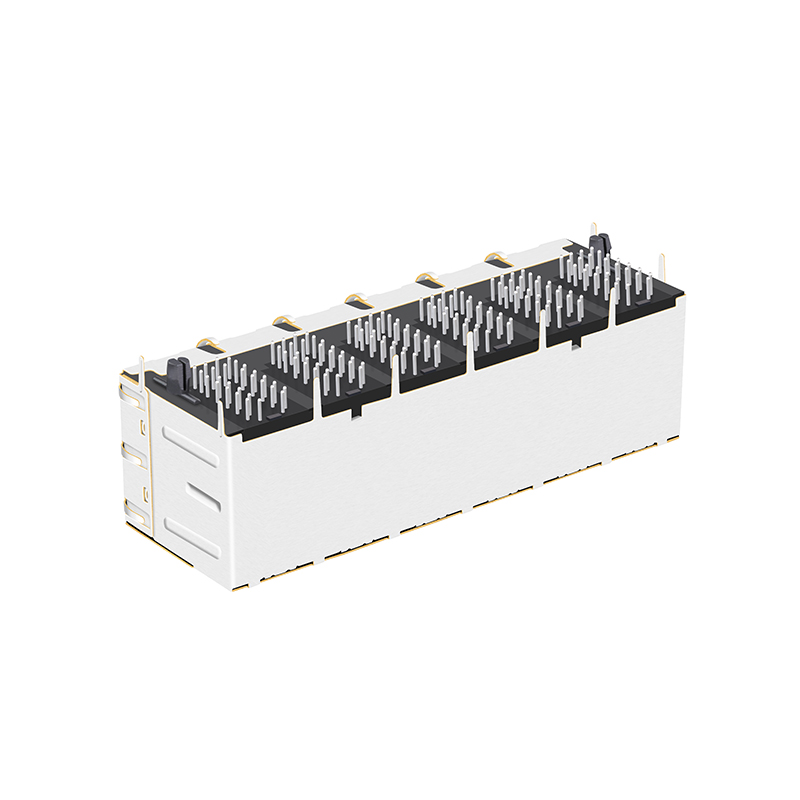

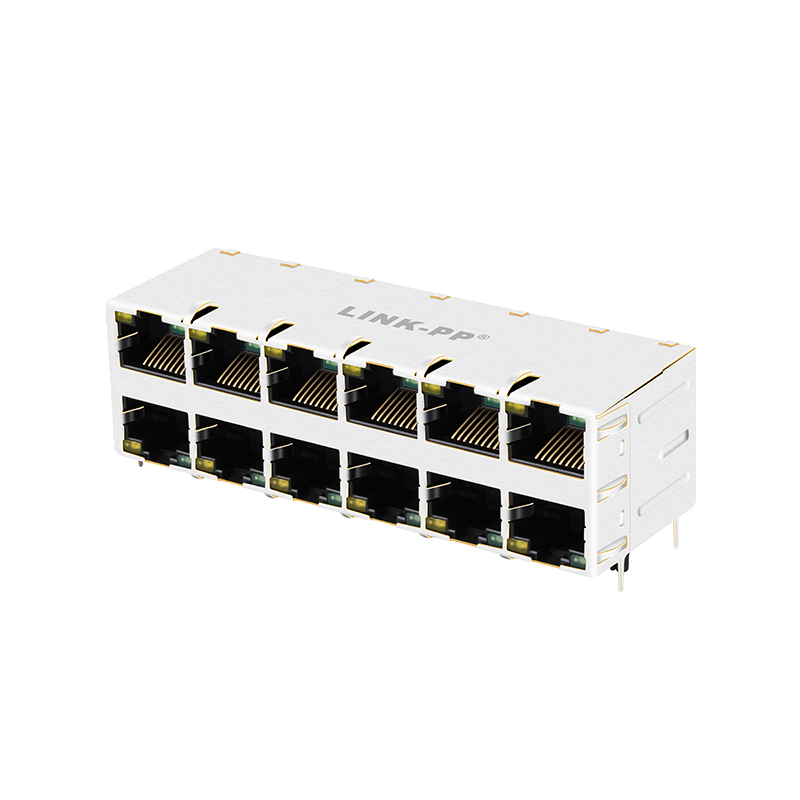

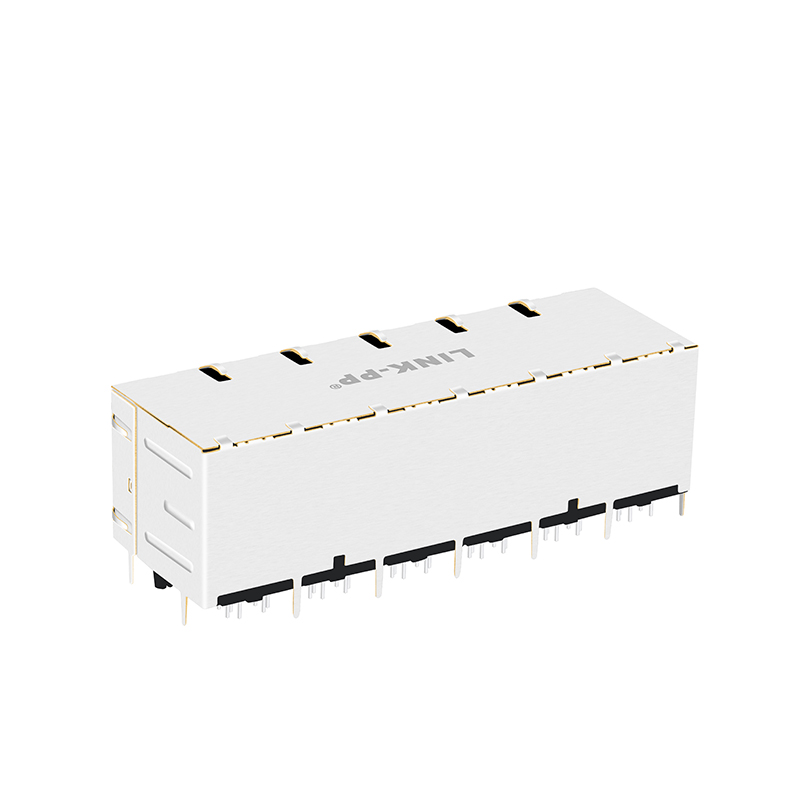

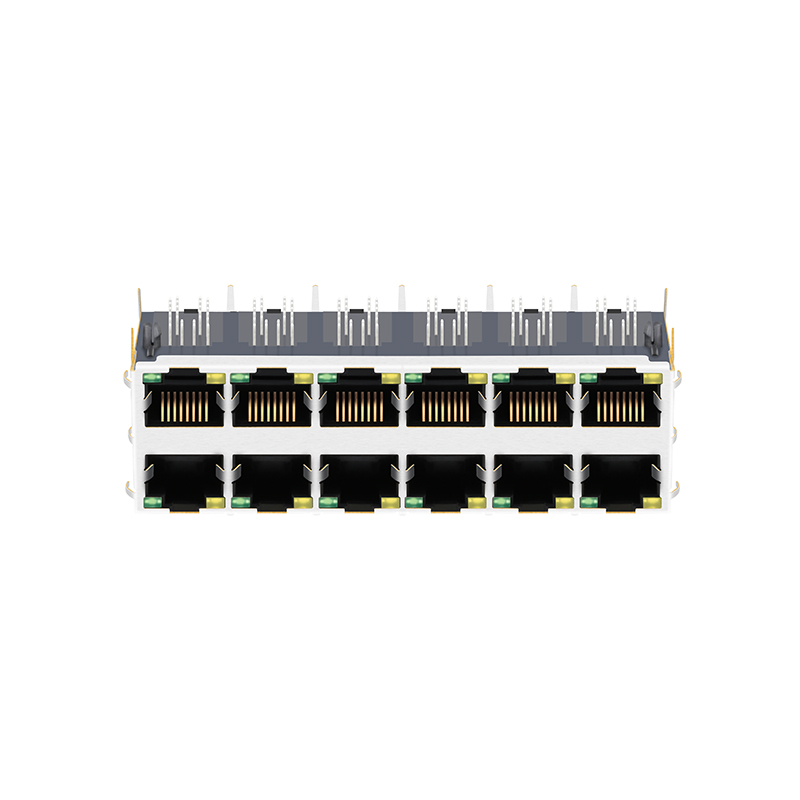

10/100/1000 Base-T RJ45 Stacked Jack 2x6 port RJ45 Jack RJGE-12M6170DJP

Send Inquiry

Product Description

Technical Specifications

Part Number	RJGE-12M6170DJP
Application-LAN	ETHERNET(NON POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WITH/WITHOUT LEDS
Latch	UP/DOWN
Number of Ports	2X6
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	10/100/1000/10G BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
Committed to and expects quality performance from every employee
The Company Standard Is Defect-Free Products And Services

Technical Drawings & Product Views

Frequently Asked Questions

1. What is the maximum transmission speed of the RJGE-12M6170DJP?

This connector supports speeds of 10/100/1000 Base-T up to 10G BASE-T Ethernet applications, ensuring fast data transmission.

2. Does this RJ45 stacked jack support Power over Ethernet (PoE)?

No, the RJGE-12M6170DJP is designed specifically for non-PoE Ethernet applications.

3. What is the port configuration of this stacked jack?

It features a 2x6 configuration, housing a total of 12 ports in a stacked arrangement to maximize board space efficiency.

4. What is the operating temperature range for this component?

It supports standard operating temperature ranges from 0 to 70°C, and industrial-grade environments from -40 to 85°C.

5. Is the RJGE-12M6170DJP RoHS compliant?

Yes, it is RoHS-5 compliant with an exemption for lead in solder, adhering to standard environmental regulations.

6. What type of mounting and pins does this connector use?

It uses Through-Hole Technology (THT) solder pin types, a side-entry PCB mount angle, and features T-post retaining posts for secure board mounting.
